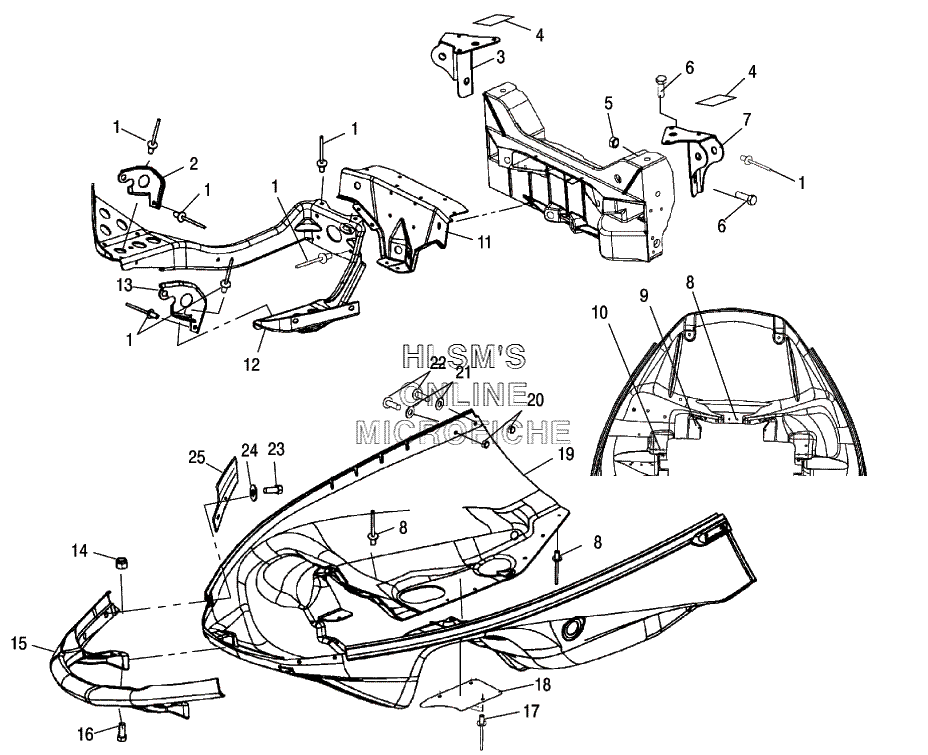

NOSEPAN ASSEMBLY #1 для Polaris 550 Classic (S05ND5BS) - 2006 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
25243992-067 HINGE PIVOT (BLACK/RIGHT/LOWER)HINGE PIVOT (BLACK/RIGHT/LOWER)
-
35243978 MOUNT SHOCK BULK HEAD (UPPER/RIGHT)MOUNT SHOCK BULK HEAD (UPPER/RIGHT)
-
45810947 FOAM, SEALFOAM, SEAL
-
57547180 NUT FLANGED, NYLON-ZNUT FLANGED, NYLON-Z
-
67517935 SCREW, HEXAGON SOCKETSCREW, HEXAGON SOCKET
-
75243977 MOUNT SHOCK BULK HEAD (UPPER/LEFT)MOUNT SHOCK BULK HEAD (UPPER/LEFT)
-
87621467 RIVET, BLINDRIVET, BLIND
-
97621431 RIVETRIVET
-
107661136 RIVETRIVET
-
115244049-067 BRACKET, RADIUS ROD SUPPORT (BLACK)BRACKET, RADIUS ROD SUPPORT (BLACK)
-
125244050 BRACE, PAN (LOWER)BRACE, PAN (LOWER)
-
135243991-067 HINGE PIVOT (LEFT/BLACK/LOWER)HINGE PIVOT (LEFT/BLACK/LOWER)
-
147542153 NUT, NYLOK FLANGEDNUT, NYLOK FLANGED
-
155434439-070 BUMPER W/OUT NUTSERTS (FRONT/BLACK) (INCL. HARDWARE)BUMPER W/OUT NUTSERTS (FRONT/BLACK) (INCL. HARDWARE)
-
167512163 BOLTBOLT
-
177621472 RIVETRIVET
-
185245853 SHIELD, HEAT EXTENDEDSHIELD, HEAT EXTENDED
-
195434343-070 NOSEPAN GAS ASSIST (BLACK)NOSEPAN GAS ASSIST (BLACK)
-
207542122 NUT NYLOKNUT NYLOK
-
217555827 WASHERWASHER
-
227515166 SCREWSCREW
-
237517312 SCREW (IF BUILT BEFORE 5/2/05)SCREW (IF BUILT BEFORE 5/2/05)
-
237517986 SCREW, UNSLT HWH-Y (IF BUILT AFTER 5/2/05)SCREW, UNSLT HWH-Y (IF BUILT AFTER 5/2/05)
-
247552801 WASHER, SPRING LOCK (IF BUILT BEFORE 5/2/05)WASHER, SPRING LOCK (IF BUILT BEFORE 5/2/05)
-
255244888 GUIDE HOOD (LEFT)GUIDE HOOD (LEFT)
-
255244889 GUIDE HOOD (RIGHT)GUIDE HOOD (RIGHT)
