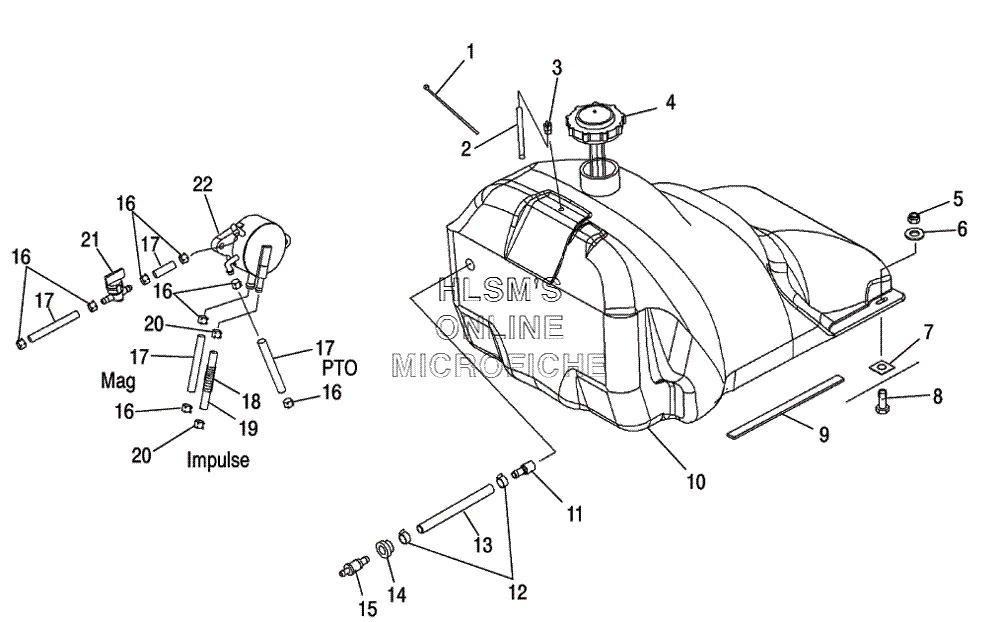

FUEL SYSTEM для Polaris 550 Classic (S05ND5BS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7080804 CABLE TIE RELEASABLE 5 1/2"
    CABLE TIE RELEASABLE 5 1/2"
  • 2
    8450061-600 LINE, FUEL (3MMX7MM)
    LINE, FUEL (3MMX7MM)
  • 3
    7052095 FITTING, 90 DEG
    FITTING, 90 DEG
  • 4
    2520323 CAP-FUEL, 12 GAL W/GAUGE
    CAP-FUEL, 12 GAL W/GAUGE
  • 4
    5810512 GASKET
    GASKET
  • 5
    7542122 NUT NYLOK
    NUT NYLOK
  • 6
    7555960 WASHER, FLAT
    WASHER, FLAT
  • 7
    7670021 NUT, SPEED
    NUT, SPEED
  • 8
    7512193 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 9
    5810947 FOAM, SEAL
    FOAM, SEAL
  • 10
    2520467 FUEL TANK, ASSY (INCL. 3, 11-15)
    FUEL TANK, ASSY (INCL. 3, 11-15)
  • 11
    7052301 PICK-UP FUEL, W/FILTER 105 MICRON
    PICK-UP FUEL, W/FILTER 105 MICRON
  • 12
    7080402 RING, COMPRESSION
    RING, COMPRESSION
  • 13
    8350019-160 FUEL LINE ESTER
    FUEL LINE ESTER
  • 14
    5435941 GROMMET 3/4" VITON
    GROMMET 3/4" VITON
  • 15
    7052375 FITTING 1/4 TO 1/4 STRAIGHT
    FITTING 1/4 TO 1/4 STRAIGHT
  • 16
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    8350018-600 TUBING ETHER ERETHNE SERVICE (160CM)
    TUBING ETHER ERETHNE SERVICE (160CM)
  • 18
    8360052-305 TUBING, CONVOLUTED
    TUBING, CONVOLUTED
  • 19
    8450040-600 LINE FUEL (1/4 ID/600 CM.)
    LINE FUEL (1/4 ID/600 CM.)
  • 20
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 21
    7052248 VALVE FUEL PLASTIC INLINE 1/4"
    VALVE FUEL PLASTIC INLINE 1/4"
  • 22
    3089751 FUEL PUMP ASSY
    FUEL PUMP ASSY
