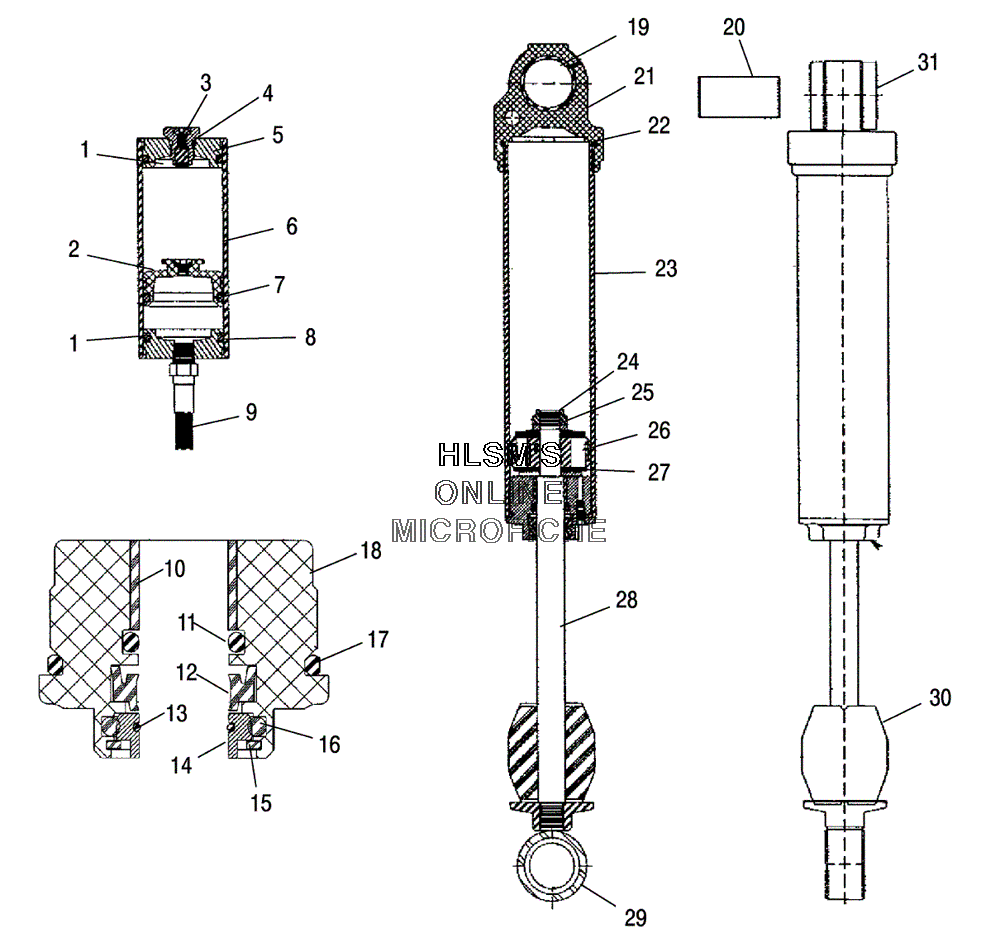

SUSPENSION - REAR TRACK SHOCK (M-10 ACE) для Polaris 800 XC SP M-10 (S05NE7CS) - 2005 года выпуска`
-
№АртикулНазвание
-
1A7042149 SHOCK TRACK, M-10 (REAR) (INCL. ALL)SHOCK TRACK, M-10 (REAR) (INCL. ALL)
-
1B1500449 RESERVIOR, NON ADJUST ASSY (INCL. 1-3)RESERVIOR, NON ADJUST ASSY (INCL. 1-3)
-
11500450 SEAL O-RINGSEAL O-RING
-
21500187 PISTON FLOATINGPISTON FLOATING
-
31500014 VALVE AIR ASSYVALVE AIR ASSY
-
41500023 O-RING (OUTER)O-RING (OUTER)
-
51500160 RESERVOIR, END CAP ASSYRESERVOIR, END CAP ASSY
-
61500451 DAMPENERDAMPENER
-
71500003 O-RING, END CAPO-RING, END CAP
-
81500163 END CAP RESERVOIR ASSYEND CAP RESERVOIR ASSY
-
91500560 HOSEHOSE
-
101500488 BEARINGBEARING
-
111500021 O-RING (INNER)O-RING (INNER)
-
121500266 U-CUP 4300 URETHU-CUP 4300 URETH
-
131500484 O-RINGO-RING
-
141500485 SCRAPER FIST, BRONZESCRAPER FIST, BRONZE
-
151500486 RING SNAP, INTERNALRING SNAP, INTERNAL
-
161500483 O-RINGO-RING
-
171500020 O-RINGO-RING
-
181500545 DAMPENER (INCL. 10-17)DAMPENER (INCL. 10-17)
-
191500444 BEARINGBEARING
-
201500310 SLEEVESLEEVE
-
211500563 BODY CAP ASSYBODY CAP ASSY
-
221500108 O-RINGO-RING
-
231500561 BODYBODY
-
241500016 NUT, LOCKNUT, LOCK
-
251500015 PLATE, BACKUPPLATE, BACKUP
-
261500002 BEARING, PISTONBEARING, PISTON
-
271500017 PLATE, TOP OUTERPLATE, TOP OUTER
-
281500562 SHAFTSHAFT
-
291500564 EYELETEYELET
-
305410855 BUMPER, JOUNCEBUMPER, JOUNCE
-
311500309 BUSHINGBUSHING
