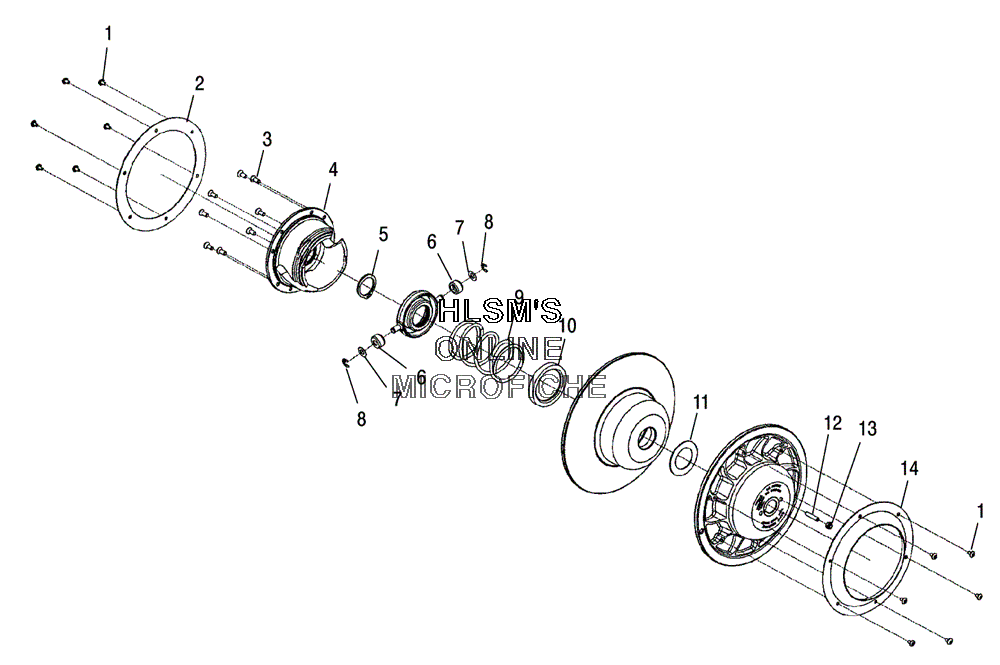

CLUTCH - DRIVEN для Polaris 800 XC SP M-10 (S05NE7CS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 33
    1322433 DRIVEN CLUTCH ASSY (INCL. 1, 2, 5-9, 11-14)
    DRIVEN CLUTCH ASSY (INCL. 1, 2, 5-9, 11-14)
  • 1
    7518023 SCREW THEAD
    SCREW THEAD
  • 2
    5246216 PLATE WINDAGE MOV
    PLATE WINDAGE MOV
  • 3
    3233996 SCREW CAP TORX
    SCREW CAP TORX
  • 4
    5133772 RAMP DRIVEN ER (62/46-.46)
    RAMP DRIVEN ER (62/46-.46)
  • 5
    7710522 RETAINING RING EXTENSION
    RETAINING RING EXTENSION
  • 6
    5434534 ROLLER
    ROLLER
  • 7
    7556226 WASHER THRUST
    WASHER THRUST
  • 8
    7710523 RETAINING RING EXTENSION
    RETAINING RING EXTENSION
  • 9
    7043063 SPRING DRIVEN, CLUTCH (BLACK/LEFT)
    SPRING DRIVEN, CLUTCH (BLACK/LEFT)
  • 10
    7556227 WASHER THRUST
    WASHER THRUST
  • 11
    3234033 SPACER
    SPACER
  • 12
    7518024 SCREW SET HEXAGON SKT
    SCREW SET HEXAGON SKT
  • 13
    7542103 NUT, FLEXLOC
    NUT, FLEXLOC
  • 14
    5246217 PLATE WINDAGE STAT
    PLATE WINDAGE STAT
