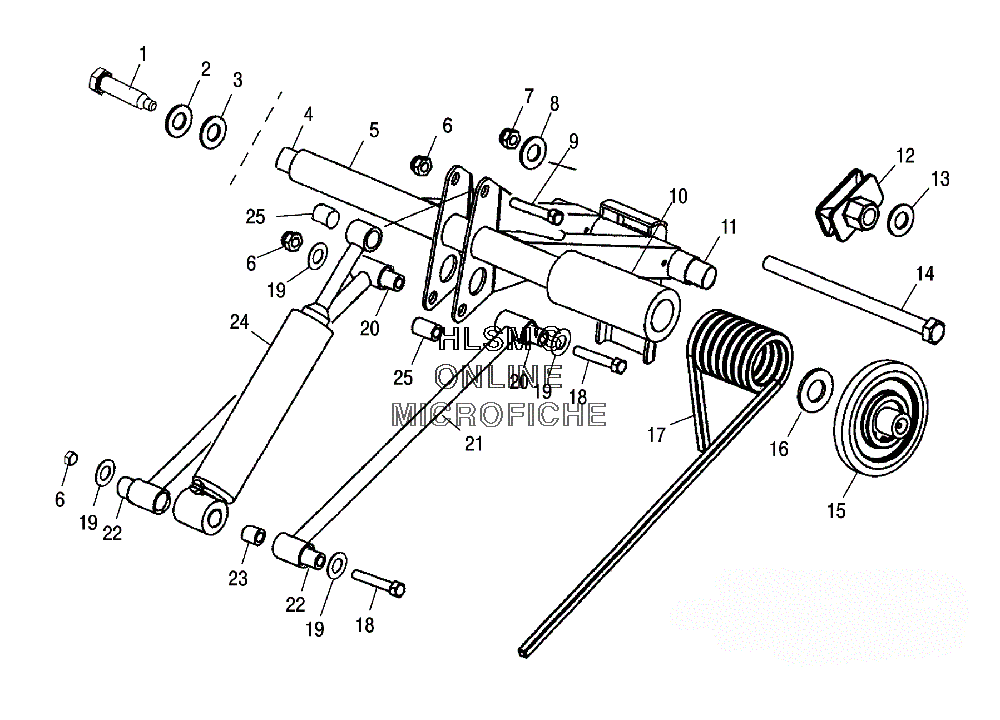

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 800 SWITCHBACK (S05NS6ES) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7517435 SCREW
    SCREW
  • 2
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 3
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 4
    5133165 SHAFT
    SHAFT
  • 5
    1541615-385 WELD REAR TORQUE ARM (REAR/CLOUD SILVER)
    WELD REAR TORQUE ARM (REAR/CLOUD SILVER)
  • 5
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 6
    7542411 NUT, FLEXLOC
    NUT, FLEXLOC
  • 7
    7547217 NUT 5/16-24, NYLOK
    NUT 5/16-24, NYLOK
  • 8
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 9
    7512410 BOLT
    BOLT
  • 10
    5434337 SLEEVE TORSION SPRING
    SLEEVE TORSION SPRING
  • 11
    5333997 SHAFT ANNODIZE
    SHAFT ANNODIZE
  • 12
    5432983 ROLLER, SPRING ADJUST SQUARE
    ROLLER, SPRING ADJUST SQUARE
  • 13
    7080394 CLIP, PUSH ON
    CLIP, PUSH ON
  • 14
    7517908 SCREW HEXAGON/CAP, GR5-Y
    SCREW HEXAGON/CAP, GR5-Y
  • 15
    1541285 WHEEL, CARRIER W/COLLAR
    WHEEL, CARRIER W/COLLAR
  • 16
    7556301 BUSHING
    BUSHING
  • 17
    7042068-067 SPRING TORSION (.359/47Ш (LEFT/BLACK)
    SPRING TORSION (.359/47Ш (LEFT/BLACK)
  • 17
    7042069-067 SPRING TORSION (.359/47Ш (RIGHT/BLACK)
    SPRING TORSION (.359/47Ш (RIGHT/BLACK)
  • 17
    7042079-067 SPRING TORSION (.375/47Ш (LEFT/BLACK)
    SPRING TORSION (.375/47Ш (LEFT/BLACK)
  • 17
    7042080-067 SPRING TORSION (.375/47Ш (RIGHT/BLACK)
    SPRING TORSION (.375/47Ш (RIGHT/BLACK)
  • 17
    7042081-067 SPRING TORSION (.347/47Ш (LEFT/BLACK)
    SPRING TORSION (.347/47Ш (LEFT/BLACK)
  • 17
    7042082-067 SPRING TORSION (.347/47Ш (RIGHT/BLACK)
    SPRING TORSION (.347/47Ш (RIGHT/BLACK)
  • 18
    7515496 BOLT
    BOLT
  • 19
    7555795 WASHER, WAVE SPRING
    WASHER, WAVE SPRING
  • 20
    5133101 BUSHING
    BUSHING
  • 21
    1541631-067 WELD SHOCK ROD, 13" (BLACK)
    WELD SHOCK ROD, 13" (BLACK)
  • 22
    5132391 BUSHING
    BUSHING
  • 23
    5333905 SLEEVE
    SLEEVE
  • 24
    7042176 SHOCK REAR TRACK, IFP EASY ADJUST
    SHOCK REAR TRACK, IFP EASY ADJUST
  • 25
    5010422 BUSHING
    BUSHING
