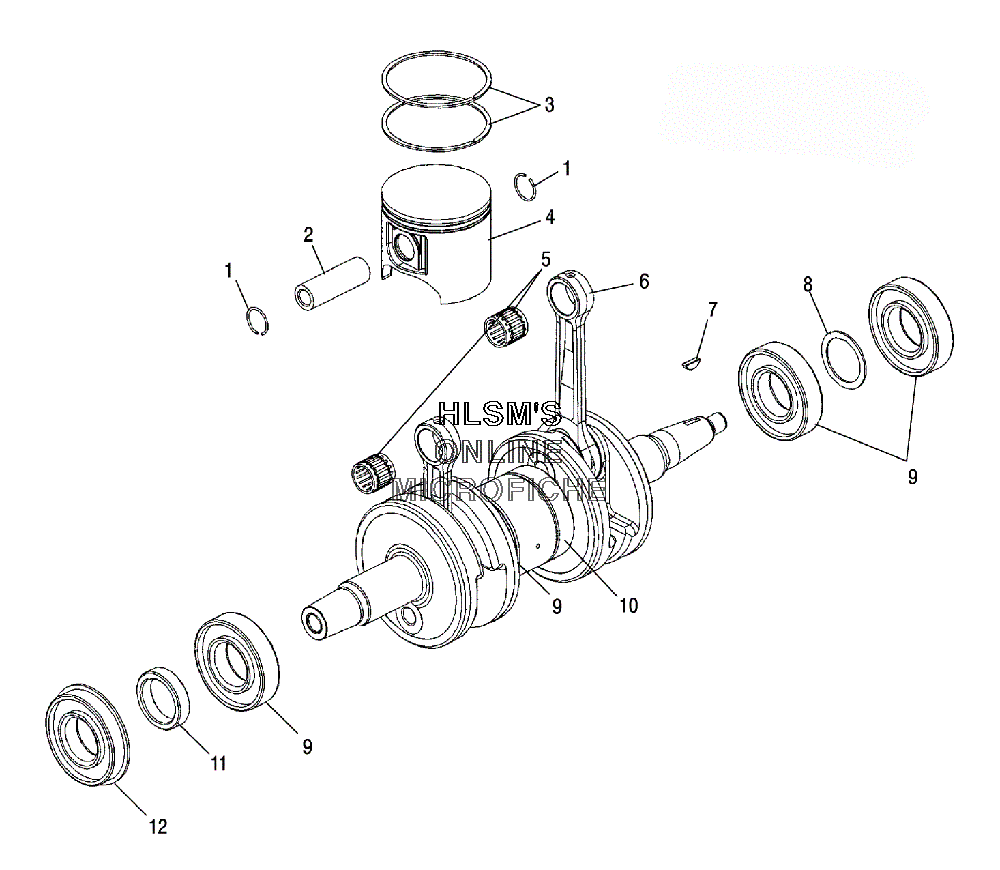

PISTON AND CRANKSHAFT для Polaris 800 SWITCHBACK (S05NS6ES) - 2005 года выпуска
-
№АртикулНазвание
-
13021179 CIRCLIP, PISTONCIRCLIP, PISTON
-
32201631 PISTON, RING STANDARD KIT (85MM)PISTON, RING STANDARD KIT (85MM)
-
42202337 PISTON GEAR KIT ASSY (STD) (85MM) (INCL. 1-3)PISTON GEAR KIT ASSY (STD) (85MM) (INCL. 1-3)
-
53514357 BEARING PNPIN, KOYOBEARING PNPIN, KOYO
-
62201557 CONNECTING, ROD KIT (INCL. ROD, PIN, BEARING, WASHERS)CONNECTING, ROD KIT (INCL. ROD, PIN, BEARING, WASHERS)
-
77721117 KEY, WOODRUFFKEY, WOODRUFF
-
87555905 BUSHINGBUSHING
-
93585503 BEARING, BALLBEARING, BALL
-
103514318 BEARING, BALLBEARING, BALL
-
115131899 SPACERSPACER
-
123514310 BEARING, BALL EXTRACEBEARING, BALL EXTRACE
-
122201842 CRANKSHAFT KIT (INCL. 8-12)CRANKSHAFT KIT (INCL. 8-12)
