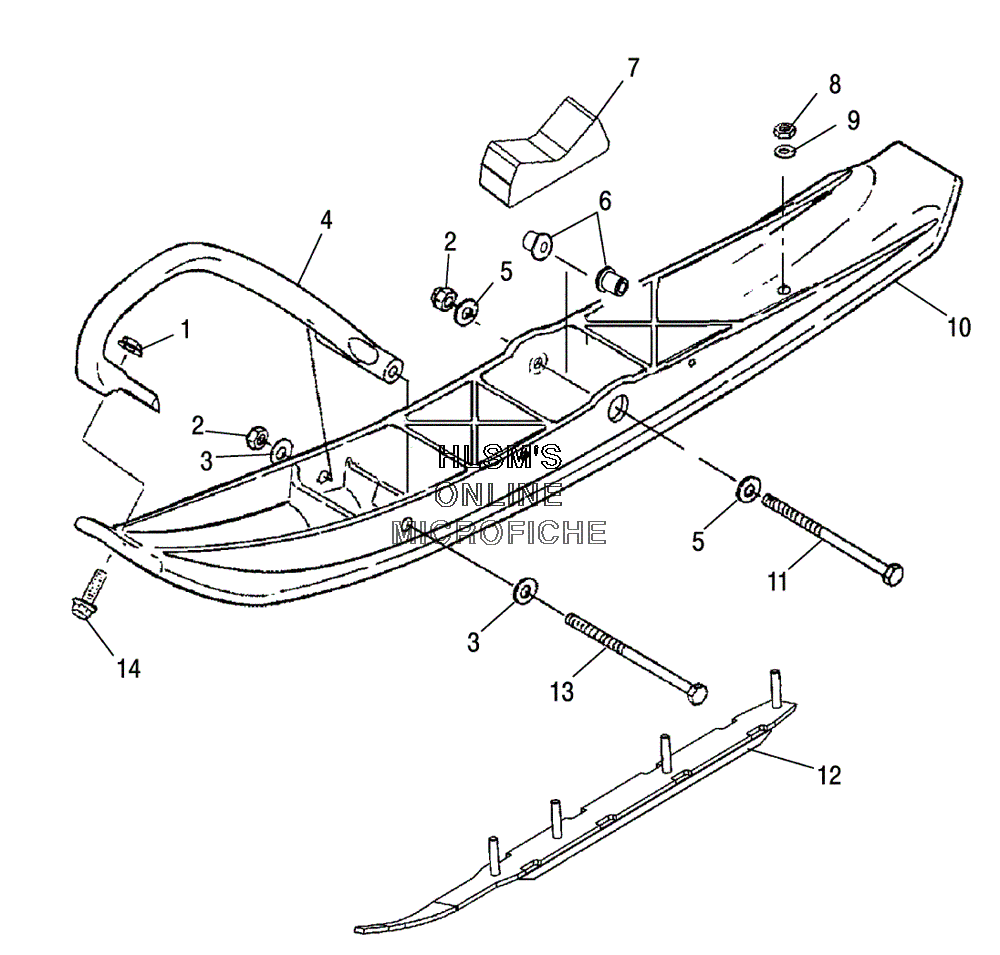

SKI ASSEMBLY для Polaris 600 EDGE TOURING 50th ANNIVERSARY (S05NT6ES) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7542321 NUT, FLANGE (LEFT)
    NUT, FLANGE (LEFT)
  • 2
    7542439 NUT, NYLOK (LEFT)
    NUT, NYLOK (LEFT)
  • 3
    7555832 WASHER
    WASHER
  • 4
    5434165-385 TOE PLASTIC SKI (CLOUD SILVER)
    TOE PLASTIC SKI (CLOUD SILVER)
  • 5
    7556130 WASHER (LEFT)
    WASHER (LEFT)
  • 6
    5132637 BUSHING, METAL (390 ID)
    BUSHING, METAL (390 ID)
  • 7
    5412018 STOP, RUBBER
    STOP, RUBBER
  • 8
    7542324 NUT, NYLOK (LEFT)
    NUT, NYLOK (LEFT)
  • 9
    7556175 WASHER FLAT
    WASHER FLAT
  • 10
    1820929-070 COMPRESSION SKI, BLANK SERVICE ASSY (BLACK)
    COMPRESSION SKI, BLANK SERVICE ASSY (BLACK)
  • 10
    1820929-469 COMPRESSION SKI BLANK SERVICE ASSY (MIDNIGHT BLUE) (50TH)
    COMPRESSION SKI BLANK SERVICE ASSY (MIDNIGHT BLUE) (50TH)
  • 11
    7517968 SCREW HEXAGON CAP
    SCREW HEXAGON CAP
  • 12
    1821493 WELD SKAG, DUAL CBD (BLACK)
    WELD SKAG, DUAL CBD (BLACK)
  • 13
    7515514 BOLT
    BOLT
  • 14
    7515307 BOLT
    BOLT
