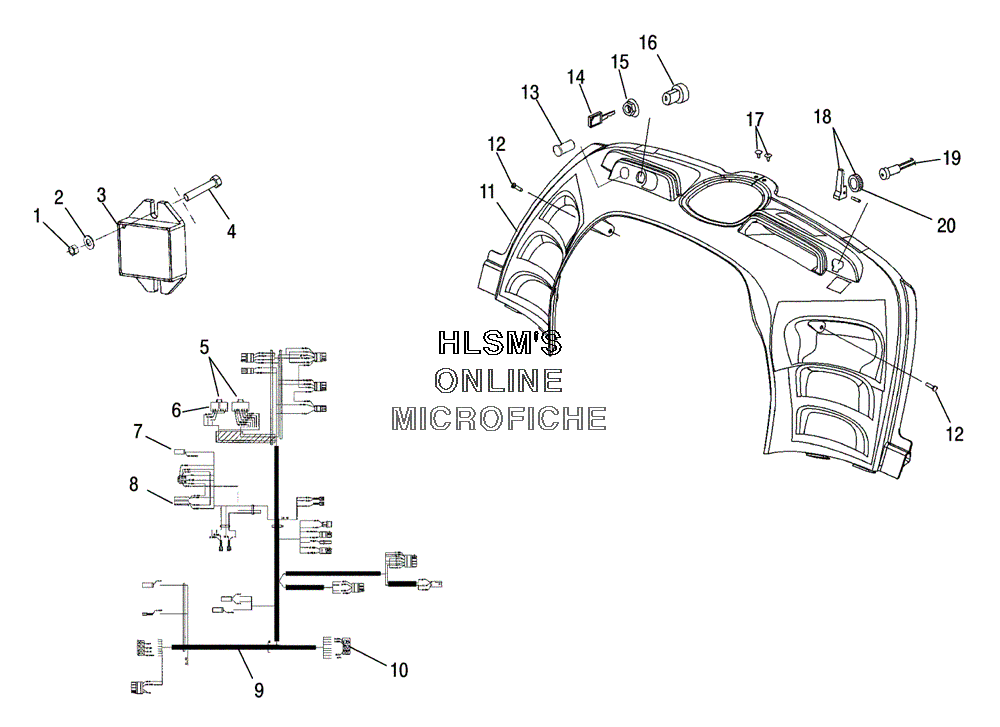

CONSOLE для Polaris 600 EDGE TOURING 50th ANNIVERSARY (S05NT6ES) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7541925 NUT, NYLOK 10-24 Y
    NUT, NYLOK 10-24 Y
  • 2
    7555746 WASHER
    WASHER
  • 3
    4010794 REGULATOR AC/DC 143V
    REGULATOR AC/DC 143V
  • 4
    7517263 SCREW, HEXAGON/SEMS
    SCREW, HEXAGON/SEMS
  • 5
    4010193 HOUSING CONNECTOR
    HOUSING CONNECTOR
  • 6
    4010192 SOCKET
    SOCKET
  • 7
    4020153 HOUSING, 1 CIRCUIT
    HOUSING, 1 CIRCUIT
  • 8
    4020063 HOUSING, PACK
    HOUSING, PACK
  • 9
    2461149 HARNESS MAIN TPS ER FS DIAG
    HARNESS MAIN TPS ER FS DIAG
  • 10
    4020057 HOUSING
    HOUSING
  • 11
    5434483-070 CONSOLE, SRP WITH ACC (BLACK)
    CONSOLE, SRP WITH ACC (BLACK)
  • 12
    7515199 SCREW (LEFT)
    SCREW (LEFT)
  • 13
    4010638 RECEPTACLE POD MOUNT 12 VOLT
    RECEPTACLE POD MOUNT 12 VOLT
  • 14
    5410611 N/A, USE COMPONENTS
    N/A, USE COMPONENTS
  • 15
    7547035 NUT, IGNITION
    NUT, IGNITION
  • 16
    2200358 IGNITION SWITCH KIT
    IGNITION SWITCH KIT
  • 17
    7670088 CLIP, PLASTIC DART NYLON
    CLIP, PLASTIC DART NYLON
  • 18
    2200188 CHOKE CONTROL KIT
    CHOKE CONTROL KIT
  • 19
    7080290 CABLE, CHOKE (INCL 18, 20)
    CABLE, CHOKE (INCL 18, 20)
  • 20
    7080229 NUT
    NUT
