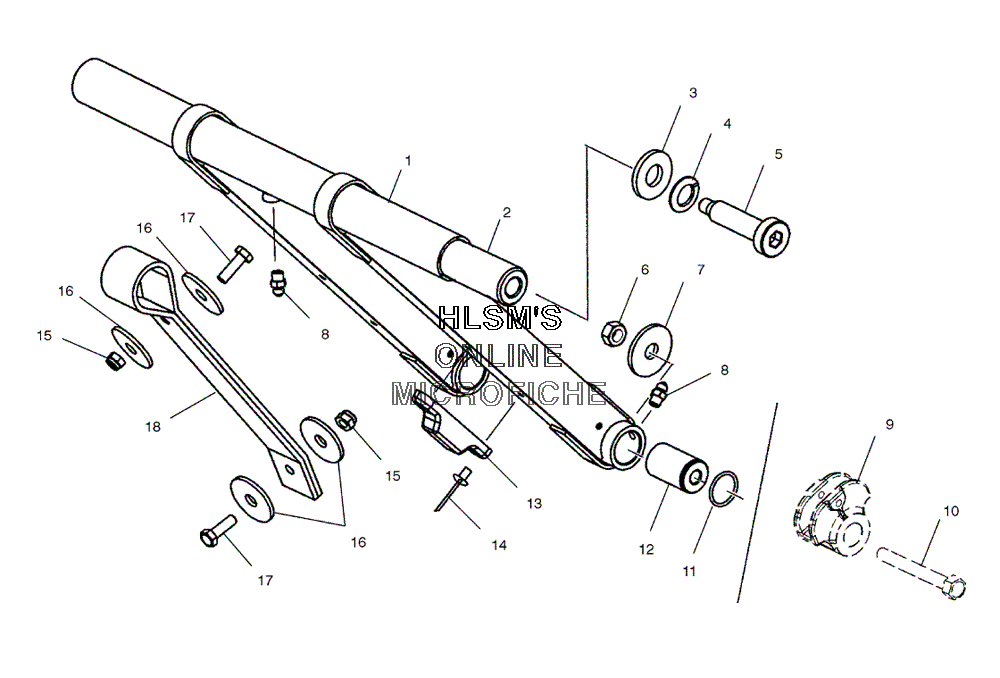

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris TRAIL TOURING (S04NT5BS) - 2004 года выпуска`
-
№АртикулНазвание
-
11541816-385 WELD TORQUE ARM (FRONT/CLOUD SILVER)WELD TORQUE ARM (FRONT/CLOUD SILVER)
-
25020812 SHAFT (UPPER)SHAFT (UPPER)
-
37555984 WASHER FLATWASHER FLAT
-
47552614 WASHER LOCKWASHER LOCK
-
57517815 SCREW SOC HEADSCREW SOC HEAD
-
67542439 NUT NYLOKNUT NYLOK
-
77555743 WASHERWASHER
-
87080424 FITTING LUBRICATIONFITTING LUBRICATION
-
115412022 O-RINGO-RING
-
125133531 SHAFT O-RINGSHAFT O-RING
-
135432166 BUMPERBUMPER
-
147621418 RIVET POPRIVET POP
-
157542324 NUT NYLOKNUT NYLOK
-
167556175 WASHERWASHER
-
177512310 SCREWSCREW
-
185412225 STRAP LIMITERSTRAP LIMITER
