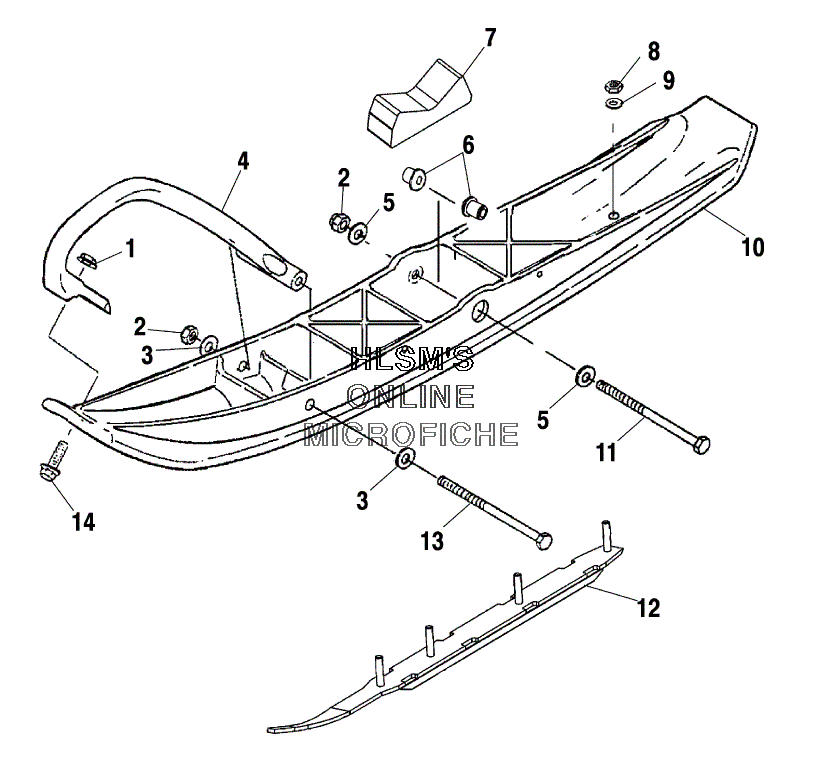

SKI ASSEMBLY для Polaris TRAIL TOURING (S04NT5BS) - 2004 года выпуска
-
№АртикулНазвание
-
17542321 NUT FLANGENUT FLANGE
-
27542439 NUT NYLOKNUT NYLOK
-
37555832 WASHERWASHER
-
45434165-070 TOE PLASTIC SKI (BLACK)TOE PLASTIC SKI (BLACK)
-
57556130 WASHERWASHER
-
65132637 BUSHING METAL (.390 ID)BUSHING METAL (.390 ID)
-
75412018 STOP RUBBERSTOP RUBBER
-
87542324 NUT NYLOKNUT NYLOK
-
97556175 WASHERWASHER
-
101820929-070 COMPRESSION SKI BLANK SERVICE ASSY (BLACK)COMPRESSION SKI BLANK SERVICE ASSY (BLACK)
-
117517968 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
122874752 SKAG ACCU-TRAC DUAL DEGRSKAG ACCU-TRAC DUAL DEGR
-
137515514 BOLTBOLT
-
147515307 BOLTBOLT
