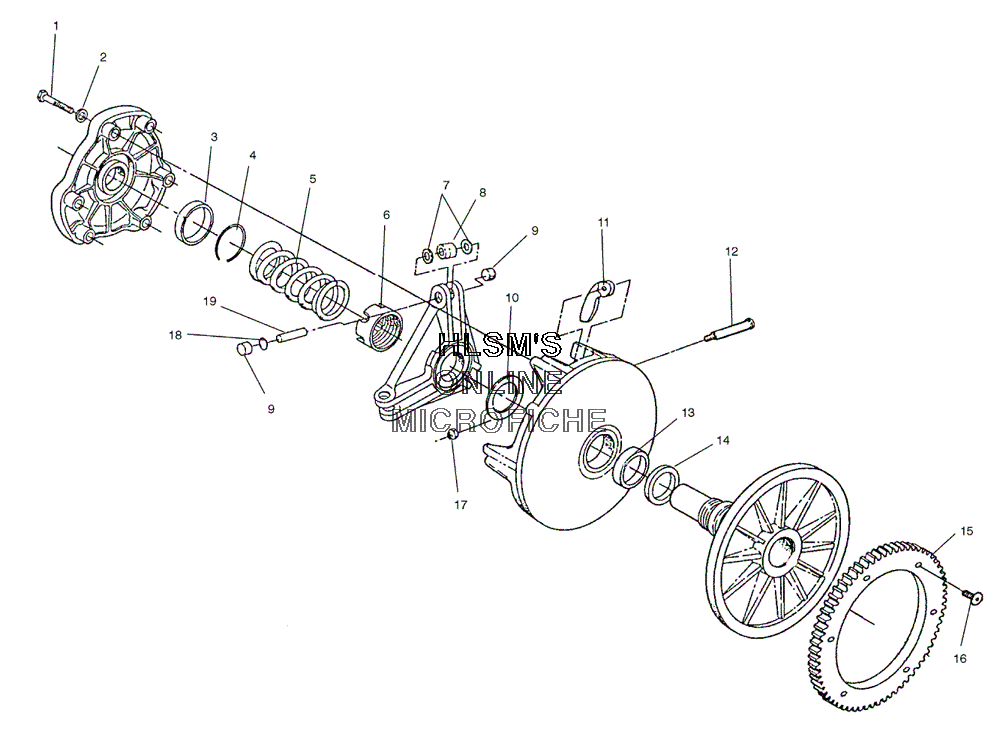

CLUTCH - DRIVE для Polaris TRAIL TOURING (S04NT5BS) - 2004 года выпуска`
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 WASHER SPRING LOCKWASHER SPRING LOCK
-
33576516 BEARING COVERBEARING COVER
-
47710417 RING RETAINING COVERRING RETAINING COVER
-
57041781 SPRING CLUTCH (DARK BLUE/WHITE)SPRING CLUTCH (DARK BLUE/WHITE)
-
65020425 NUT JAMNUT JAM
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSYROLLER AND BUSHING ASSY
-
95430445 BUTTON GUIDEBUTTON GUIDE
-
105210754 SPACER (.050)SPACER (.050)
-
105210753 SPACER (.032)SPACER (.032)
-
105242981 SPACER (.025)SPACER (.025)
-
105210752 SPACER (.020)SPACER (.020)
-
105132542 SPACER (.130)SPACER (.130)
-
111321586 WT/BUSH.ASSY (10-62)WT/BUSH.ASSY (10-62)
-
127515105 PIN WT. HARDENEDPIN WT. HARDENED
-
133576502 BEARING SLEEVEBEARING SLEEVE
-
145010188 INSERT MOVEABLEINSERT MOVEABLE
-
155133649 RING GEAR LIGHT WEIGHT KITRING GEAR LIGHT WEIGHT KIT
-
167515351 BOLTBOLT
-
177541906 NUT FLEXLOCNUT FLEXLOC
-
182200387 SHIM DRIVE CLUTCH KITSHIM DRIVE CLUTCH KIT
-
195133079 PIN ROLLER 1" SBNPIN ROLLER 1" SBN
-
191322316 DRIVE CLUTCH ES WB ASSY (INCL. ALL LESS 5, 11)DRIVE CLUTCH ES WB ASSY (INCL. ALL LESS 5, 11)
