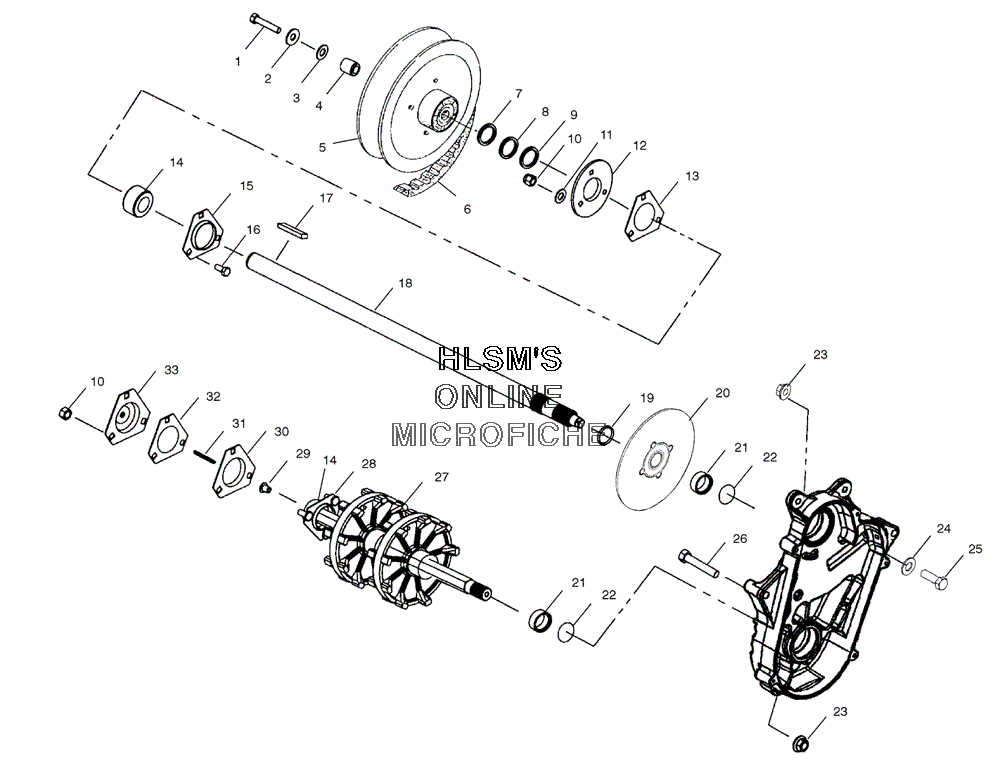

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 800 RMK (S04NK6ES) - 2004 года выпуска`
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
45020913 SPACERSPACER
-
63211080 BELT DRIVEBELT DRIVE
-
77555917 WASHERWASHER
-
87555864 WASHERWASHER
-
97556509 BUSHINGBUSHING
-
107542324 NUT, NYLOKNUT, NYLOK
-
117558402 WASHER, FLATWASHER, FLAT
-
125241359 FLANGE RD, RELUBE WITH ZERKFLANGE RD, RELUBE WITH ZERK
-
127080561 FITTING, LUB/VENFITTING, LUB/VEN
-
135811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
143514525 BEARINGBEARING
-
155222751 FLANGETTEFLANGETTE
-
167512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
177721128 KEYKEY
-
181332220 JACKSHAFT WITH BEARING (INCL. 14, 19)JACKSHAFT WITH BEARING (INCL. 14, 19)
-
197710422 RING, RETAININGRING, RETAINING
-
202202493 BRAKE DISC, FORGED KITBRAKE DISC, FORGED KIT
-
215020588 SLEEVE, SEALSLEEVE, SEAL
-
225410613 O-RINGO-RING
-
237542423 NUT, FLANGENUT, FLANGE
-
247558403 WASHER, WROUGHTWASHER, WROUGHT
-
257518002 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
267515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
271590346 DRSHAFT, 1.06 ASSY (SMOOTH) (INCL. 28, 29)DRSHAFT, 1.06 ASSY (SMOOTH) (INCL. 28, 29)
-
281012945 FLANGETTE WITH SCREWS ASSYFLANGETTE WITH SCREWS ASSY
-
293280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
305243529 FLANGETTE OFFSET, WITH HOLEFLANGETTE OFFSET, WITH HOLE
-
313280017 KEY, SPEEDOMETER SQUAREKEY, SPEEDOMETER SQUARE
-
325830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
333280116 ADAPTER, DRIVE WITH ZERKADAPTER, DRIVE WITH ZERK
