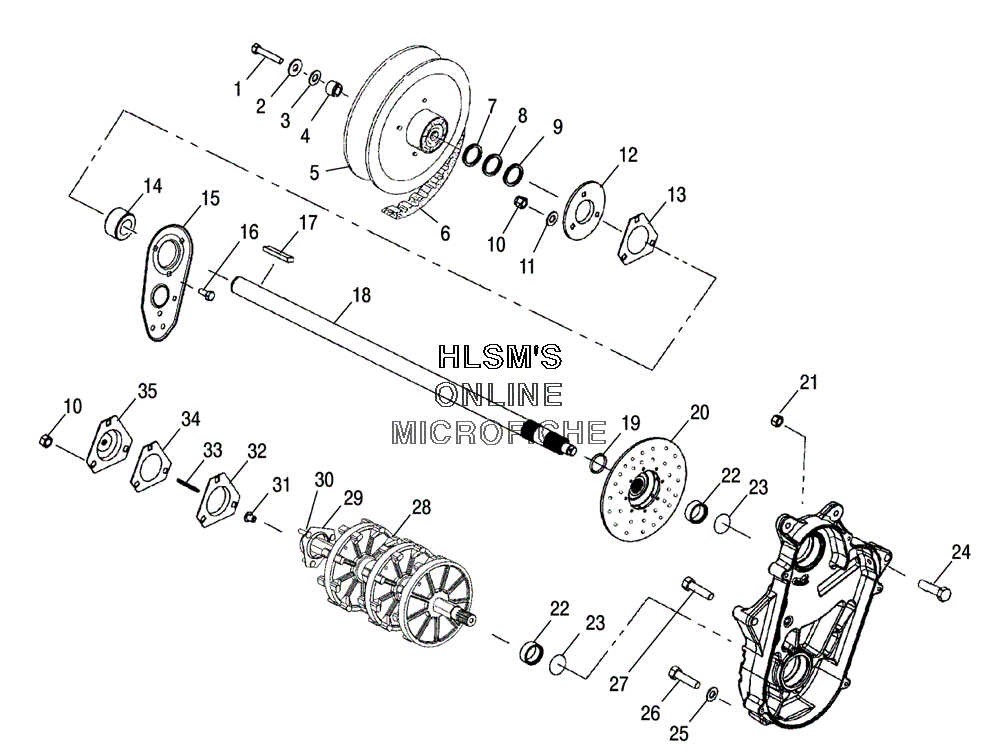

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 800 PRO XR (S04NZ8CS) - 2004 года выпуска`
-
№АртикулНазвание
-
17515301 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
45020291 SPACERSPACER
-
63211080 BELT DRIVEBELT DRIVE
-
77555917 WASHERWASHER
-
87555864 WASHERWASHER
-
97556509 BUSHINGBUSHING
-
107542324 NUT, NYLOKNUT, NYLOK
-
117558402 WASHER, FLATWASHER, FLAT
-
125241359 FLANGE RD, RELUBE WITH ZERKFLANGE RD, RELUBE WITH ZERK
-
135811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
143514519 BEARING, JACKSHAFTBEARING, JACKSHAFT
-
155245889-067 FLANGETTE JACKSHAFT, REINFORCED (BLACK)FLANGETTE JACKSHAFT, REINFORCED (BLACK)
-
167512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
177721116 KEYKEY
-
181332254 JACKSHAFT, SOLID ASSY (INCL. 19)JACKSHAFT, SOLID ASSY (INCL. 19)
-
197710422 RING, RETAININGRING, RETAINING
-
201910197 DISC BRAKE, VENTED ASSYDISC BRAKE, VENTED ASSY
-
217542423 NUT, FLANGENUT, FLANGE
-
225020588 SLEEVE, SEALSLEEVE, SEAL
-
235410613 O-RINGO-RING
-
247515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
257558403 WASHER, WROUGHTWASHER, WROUGHT
-
267512492 SCREWSCREW
-
277515485 BOLTBOLT
-
281590364 DRSHAFT, 7.06 3DRIVE 1-SIDE SM ASSY (INCL. 29, 30, 31)DRSHAFT, 7.06 3DRIVE 1-SIDE SM ASSY (INCL. 29, 30, 31)
-
291012945 FLANGETTE WITH SCREWS ASSYFLANGETTE WITH SCREWS ASSY
-
303514525 BEARINGBEARING
-
313280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
325243529 FLANGETTE OFFSET, WITH HOLEFLANGETTE OFFSET, WITH HOLE
-
333280017 KEY, SPEEDOMETER SQUAREKEY, SPEEDOMETER SQUARE
-
345830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
353280116 ADAPTER, DRIVE WITH ZERKADAPTER, DRIVE WITH ZERK
