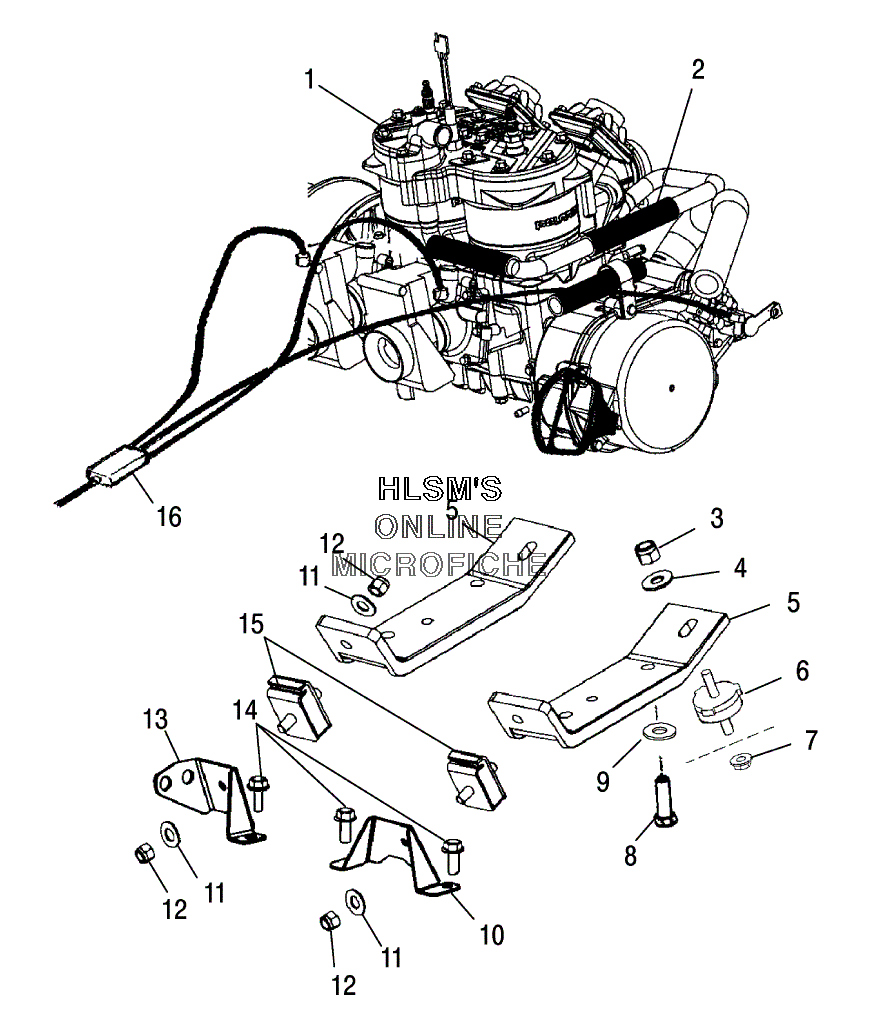

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 800 PRO XR (S04NZ8CS) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    2202517 SHORT BLOCK KIT NOTE:
    SHORT BLOCK KIT NOTE:
  • 2
    5521398-13 CONDUIT FLEX
    CONDUIT FLEX
  • 3
    7542451 NUT, NYLOK
    NUT, NYLOK
  • 4
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 5
    5246235 STRAP ENGINE MOUNT, BASE (LEFT)
    STRAP ENGINE MOUNT, BASE (LEFT)
  • 5
    5246236 STRAP ENGINE MOUNT, BASE (RIGHT)
    STRAP ENGINE MOUNT, BASE (RIGHT)
  • 6
    3021220 MOUNT ENGINE
    MOUNT ENGINE
  • 7
    7547180 NUT FLANGED NYLON Z
    NUT FLANGED NYLON Z
  • 8
    7512539 BOLT
    BOLT
  • 9
    7553101 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 10
    5245044 BRACKET ENGINE MOUNT, FORMED (RIGHT)
    BRACKET ENGINE MOUNT, FORMED (RIGHT)
  • 11
    7555806 WASHER, FLAT
    WASHER, FLAT
  • 12
    7547008 NUT, FLEXLOCK
    NUT, FLEXLOCK
  • 13
    1013397 WELD ENGINE MOUNT BRACKET (LEFT)
    WELD ENGINE MOUNT BRACKET (LEFT)
  • 14
    7517854 SCREW SPEC Y
    SCREW SPEC Y
  • 15
    3021206 MOUNT ENGINE, RECT
    MOUNT ENGINE, RECT
