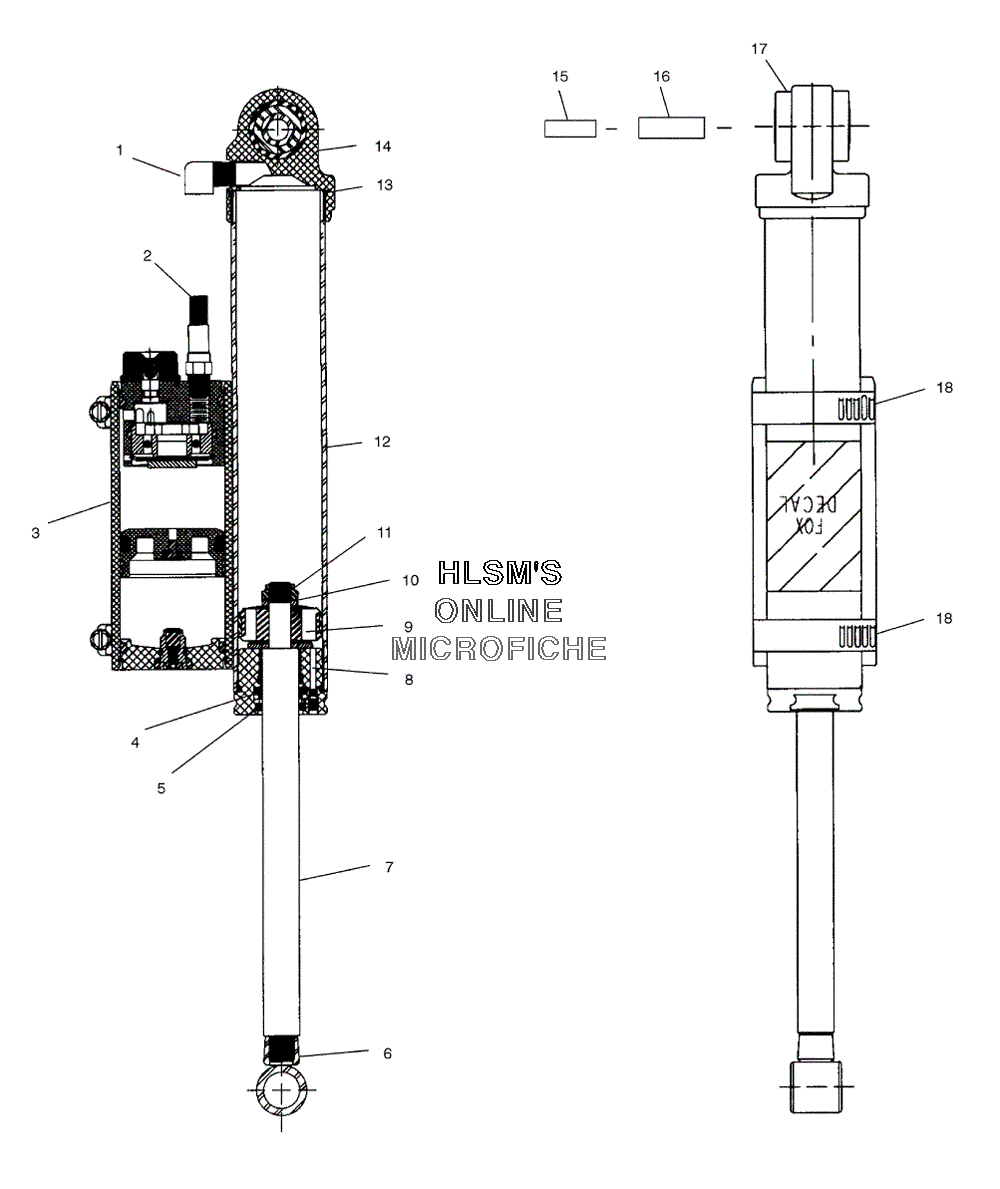

SUSPENSION - FOX SHOCK - REAR TRACK AND RESEVOIR (EDGE) для Polaris 600 XC SP EDGE (S04NP5CS) - 2004 года выпуска
-
№АртикулНазвание
-
1A7042196 SHOCK TRACK, REMOTERES (REAR)SHOCK TRACK, REMOTERES (REAR)
-
11500157 FITTING, ELBOW (90DEG)FITTING, ELBOW (90DEG)
-
21500326 HOSE, 3.12 TLG ASSYHOSE, 3.12 TLG ASSY
-
41500256 U-CUPU-CUP
-
51500257 WIPER U-CUPWIPER U-CUP
-
61500302 EYELETEYELET
-
71500322 SHAFTSHAFT
-
81500328 BEARING, QUAD RING ASSYBEARING, QUAD RING ASSY
-
92200618 VALVE PISTON KITVALVE PISTON KIT
-
101500074 BUMPER, RUBBERBUMPER, RUBBER
-
111500016 NUT, LOCKNUT, LOCK
-
121500319 BODY, THEADBODY, THEAD
-
131500108 O-RINGO-RING
-
141500244 BODY, CAP ASSYBODY, CAP ASSY
-
151500327 SLEEVESLEEVE
-
161500311 SLEEVESLEEVE
-
171500307 BUSHING (.35ILG)BUSHING (.35ILG)
-
181500330 CLAMP, HOSECLAMP, HOSE
