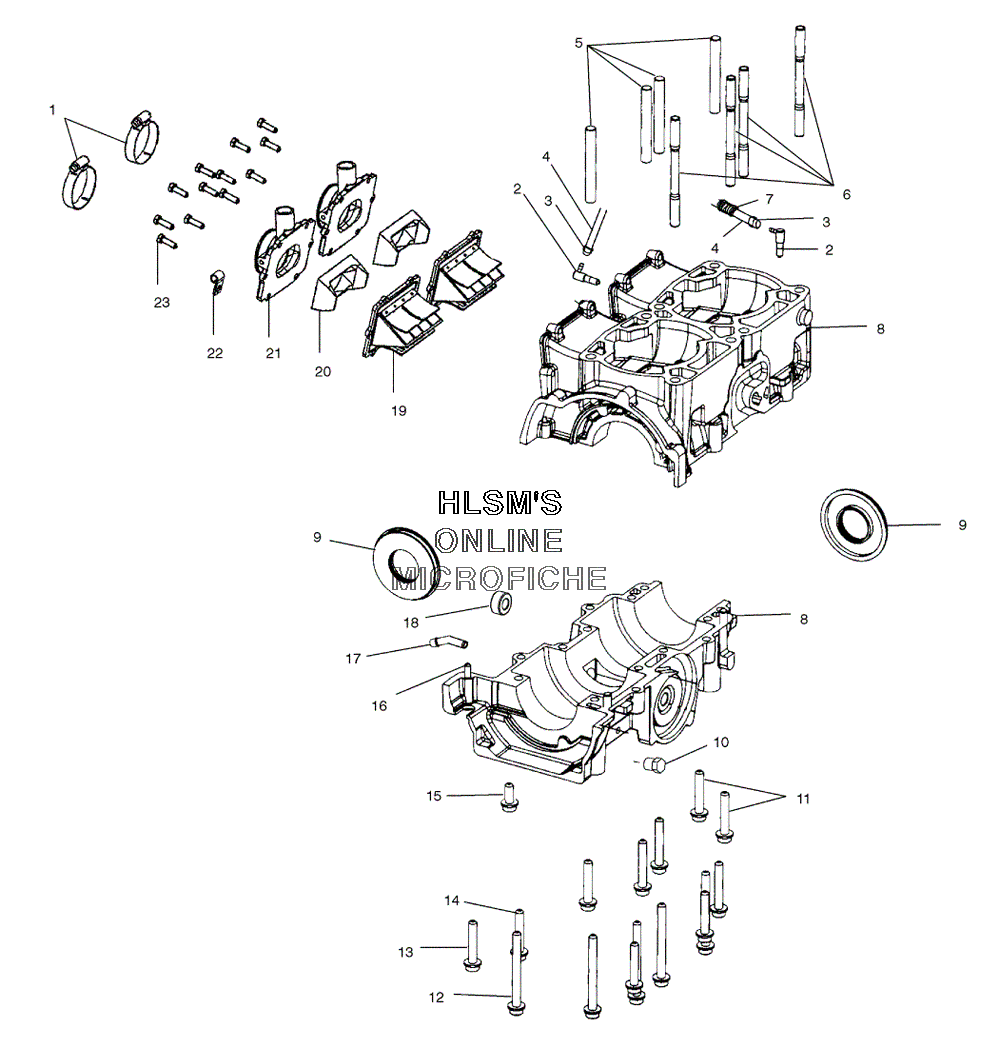

CRANKCASE ASSEMBLY для Polaris 600 XC SP EDGE (S04NP5CS) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7080681 CLAMP, HOSE
    CLAMP, HOSE
  • 2
    7051020 VALVE, CHECK 90 DEG
    VALVE, CHECK 90 DEG
  • 3
    7080603 CLAMP
    CLAMP
  • 4
    8450061-600 LINE, FUEL (3MMX7MM)
    LINE, FUEL (3MMX7MM)
  • 5
    5132196 STUD, CYLINDER (81MM)
    STUD, CYLINDER (81MM)
  • 6
    5132197 STUD, CYLINDER (118MM)
    STUD, CYLINDER (118MM)
  • 7
    8360056-25 TUBING CONVOLUTED (25CM)
    TUBING CONVOLUTED (25CM)
  • 8
    2202519 CRANKCASE KIT (INCL. 5, 6, 10-16)
    CRANKCASE KIT (INCL. 5, 6, 10-16)
  • 9
    5411394 SEAL, FLANGED
    SEAL, FLANGED
  • 10
    7051529 PLUG
    PLUG
  • 11
    7517785 BOLT (M8X1.25X55)
    BOLT (M8X1.25X55)
  • 12
    7517784 BOLT (M8X1.25X80)
    BOLT (M8X1.25X80)
  • 13
    7516825 SCREW
    SCREW
  • 14
    7517786 BOLT (M8X1.25X45)
    BOLT (M8X1.25X45)
  • 15
    7517577 SCREW
    SCREW
  • 16
    7663001 PIN, DOWEL
    PIN, DOWEL
  • 17
    7052354 PIPE
    PIPE
  • 18
    5010390
  • 19
    1201825 VALVE, REED ASSY
    VALVE, REED ASSY
  • 20
    5433151 STUFFER REED BLOCK
    STUFFER REED BLOCK
  • 21
    1253423 ADAPTER CARBURETOR
    ADAPTER CARBURETOR
  • 22
    7080880 CLAMP HOSE, VINYL COATED (.625 DIA)
    CLAMP HOSE, VINYL COATED (.625 DIA)
  • 23
    7516822 SCREW
    SCREW
