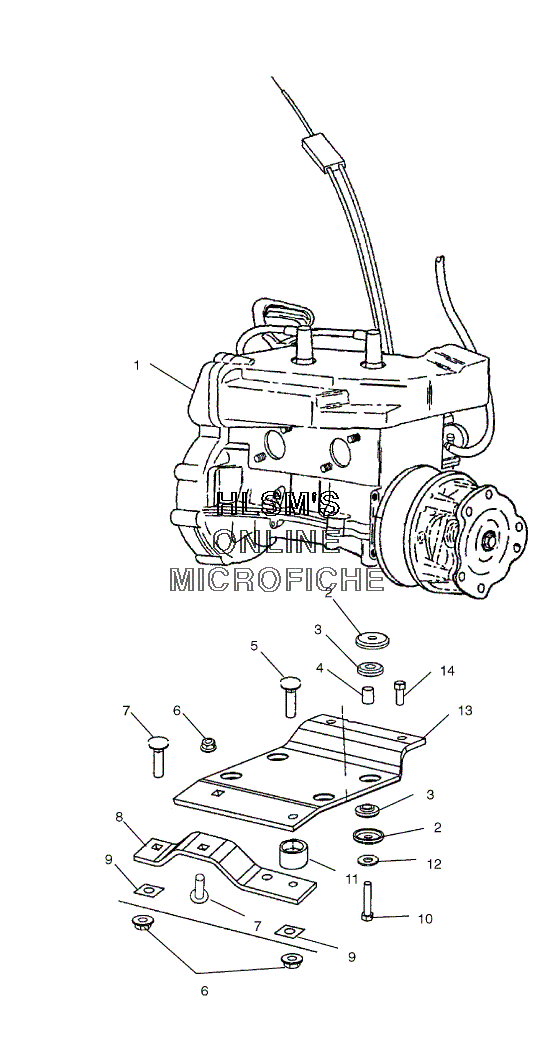

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 340 TOURING (S04NT3AS) - 2004 года выпуска`
-
№АртикулНазвание
-
13089518 ENGINE SHORT BLOCKENGINE SHORT BLOCK
-
25221901 CAP, DAMPENER VIBRATIONCAP, DAMPENER VIBRATION
-
35410320 DAMPNER VIBRATIONDAMPNER VIBRATION
-
45010163 BUSHING MOTOR MOUNTBUSHING MOTOR MOUNT
-
57515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
67547180 NUT FLANGED, 3/8-16 NYLON ZNUT FLANGED, 3/8-16 NYLON Z
-
77518028 BOLT CARRBOLT CARR
-
85246136-067 STRAP ENGINE MOUNT (BLACK)STRAP ENGINE MOUNT (BLACK)
-
97670146 RETAINER BOLT, PUSHNUT (3/8")RETAINER BOLT, PUSHNUT (3/8")
-
107512515 BOLTBOLT
-
115133371 SPACER ENGINESPACER ENGINE
-
127553101 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
135133372 PLATE ENGINEPLATE ENGINE
-
147517854 SCREW SPEC-YSCREW SPEC-Y
