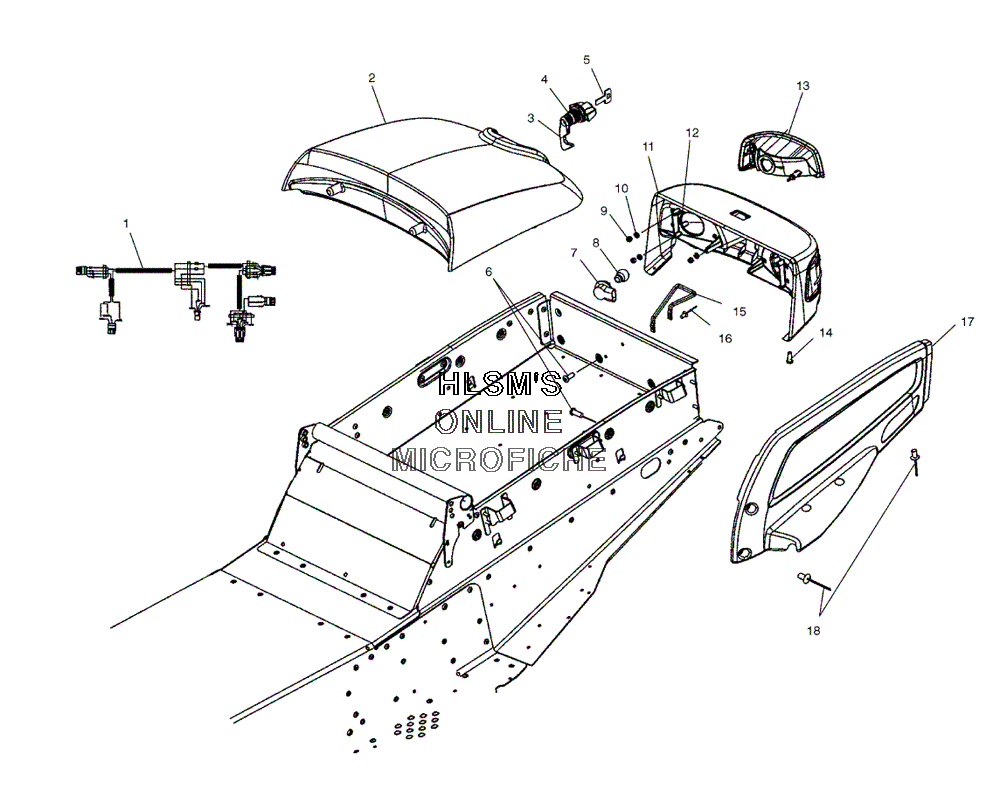

CARGO BOX W/ TAILLIGHT ASSY для Polaris 340 TOURING (S04NT3AS) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    2461166 HARNESS TAILLIGHT
    HARNESS TAILLIGHT
  • 2
    2632641 COVER, TRUNK ASSY (INCL. 3)
    COVER, TRUNK ASSY (INCL. 3)
  • 3
    5246525 PAWL TRUNK LOCK
    PAWL TRUNK LOCK
  • 4
    7081093 LOCK TRUNK
    LOCK TRUNK
  • 5
    4010873 RING WITH KEYS ASSY
    RING WITH KEYS ASSY
  • 6
    7512076 SCREW
    SCREW
  • 7
    4010767 SOCKET BULB
    SOCKET BULB
  • 8
    4010764 BULB TAILLIGHT
    BULB TAILLIGHT
  • 9
    7546703 NUT, NYLOK
    NUT, NYLOK
  • 10
    7556088 WASHER, FLAT
    WASHER, FLAT
  • 12
    7670042 U CLIP
    U CLIP
  • 13
    2410327 REFLECTOR ASSY (LEFT)
    REFLECTOR ASSY (LEFT)
  • 13
    2410328 REFLECTOR ASSY (RIGHT)
    REFLECTOR ASSY (RIGHT)
  • 14
    7517560 SCREW
    SCREW
  • 15
    5246523 BAIL TRUNK LOCK
    BAIL TRUNK LOCK
  • 16
    7661637 RIVET, INTERLOCK Z
    RIVET, INTERLOCK Z
  • 17
    5435128-341 SKIRT SNOW (SONIC BLUE/LEFT)
    SKIRT SNOW (SONIC BLUE/LEFT)
  • 17
    5435129-341 SKIRT SNOW (SONIC BLUE/RIGHT)
    SKIRT SNOW (SONIC BLUE/RIGHT)
  • 18
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 18
    2410324-341 TAILLIGHT ASSY (SONIC BLUE) (INCL. 9-13)
    TAILLIGHT ASSY (SONIC BLUE) (INCL. 9-13)
