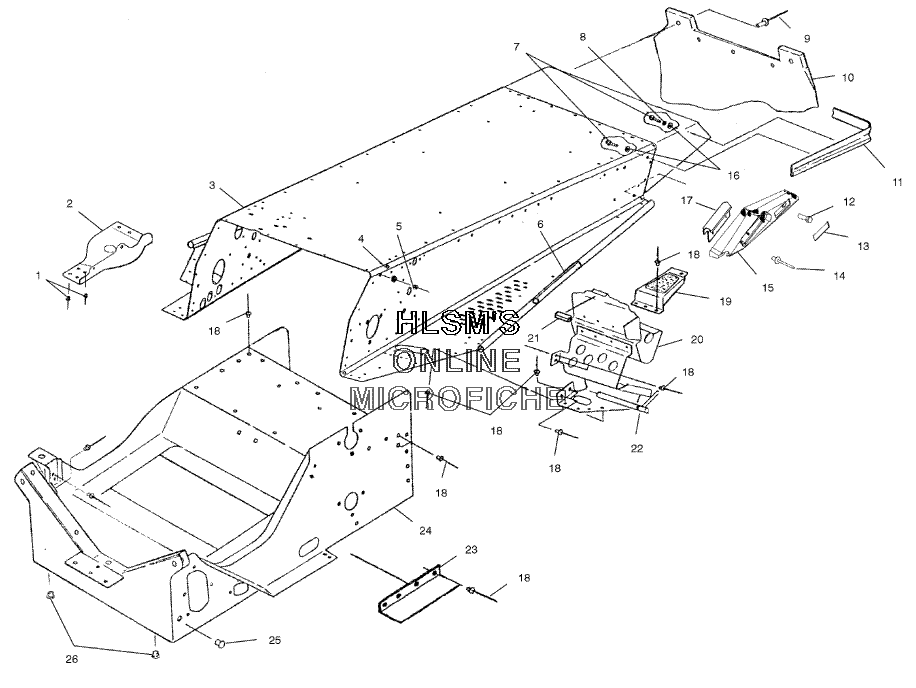

TUNNEL ASSEMBLY для Polaris SPORT TOURING (S03SU5BS) - 2003 года выпуска`
-
№АртикулНазвание
-
17661130 RIVET-3/16-.214-.420RIVET-3/16-.214-.420
-
25243419 GUARD-CHAINCASE SUMP, TUNNELGUARD-CHAINCASE SUMP, TUNNEL
-
31013574 TUNNEL ASSY., F/CTUNNEL ASSY., F/C
-
47080227 SNAP-MALESNAP-MALE
-
57621222 RIVETRIVET
-
65224787 TUBE, TUNNEL SPT.TUBE, TUNNEL SPT.
-
77512240 BOLTBOLT
-
87552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
97621418 RIVET, POPRIVET, POP
-
105410394-1106 FLAP-SNOW, BLACK W/WHITEFLAP-SNOW, BLACK W/WHITE
-
112670168-067 BUMPER, ASSY., REAR, (BLACK)BUMPER, ASSY., REAR, (BLACK)
-
127512084 SCREWSCREW
-
132670133 REFLECTOR ASSY., REDREFLECTOR ASSY., RED
-
147621515 RIVET,RIVET,
-
155432562 COVER, LH, BUMPER, W/HANDLECOVER, LH, BUMPER, W/HANDLE
-
155432563 COVER, RH, BUMPER, W/HANDLECOVER, RH, BUMPER, W/HANDLE
-
167558301 WASHER, FLATWASHER, FLAT
-
175131546 SUPPORT, HAND-HOLDSUPPORT, HAND-HOLD
-
187661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
195220893 FOOTREST, LH REARFOOTREST, LH REAR
-
195830007 PAD, LH FOOT SAFETYPAD, LH FOOT SAFETY
-
195220894 FOOTREST, RH REARFOOTREST, RH REAR
-
195830008 PAD, RH FOOT SAFETYPAD, RH FOOT SAFETY
-
201013531 FOOTREST ASSY.FOOTREST ASSY.
-
201012684 FOOTREST ASSY., RHFOOTREST ASSY., RH
-
215521238 EXTRUSION, CLUTCHGUARDEXTRUSION, CLUTCHGUARD
-
221012812-067 SUPPORT, TUNNEL, LH, (BLACK).SUPPORT, TUNNEL, LH, (BLACK).
-
221012813-067 SUPPORT, TUNNEL, RH, (BLACK)SUPPORT, TUNNEL, RH, (BLACK)
-
235222857 GUARD, ADAPTER GUIDEGUARD, ADAPTER GUIDE
-
241012689 WELD-BULKHEADWELD-BULKHEAD
-
257080416 PLUG, HOLEPLUG, HOLE
-
267080398 PLUG, HOLEPLUG, HOLE
