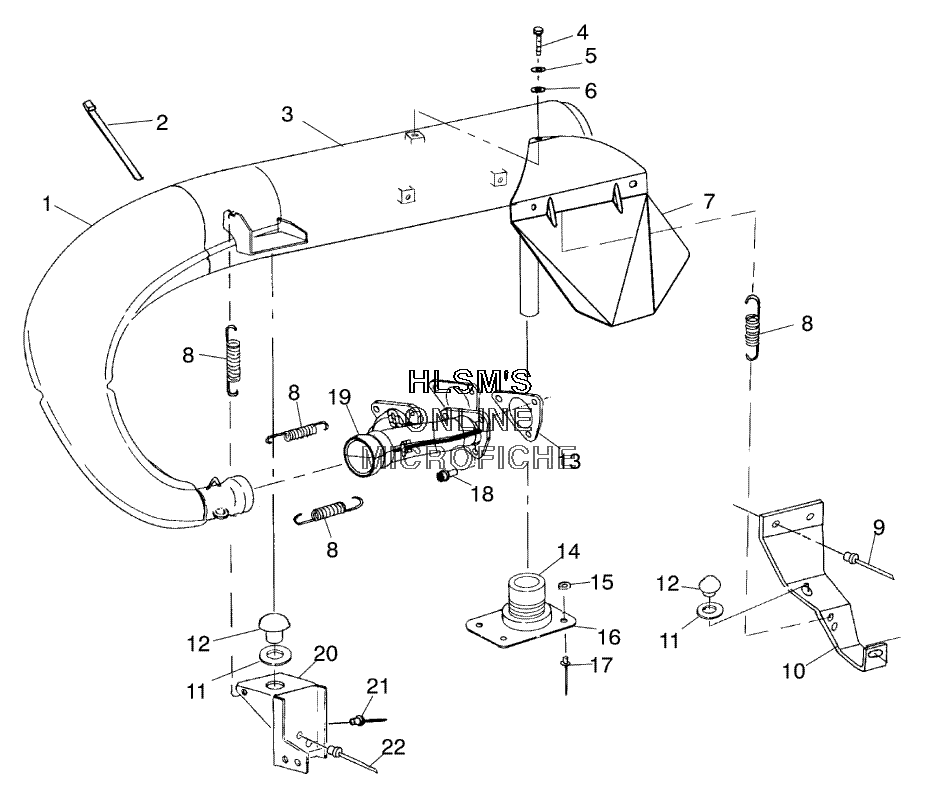

EXHAUST SYSTEM для Polaris SPORT TOURING DELUXE (S03SU5BSA) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    5243197 COVER-MEGAPHONE, TOP
    COVER-MEGAPHONE, TOP
  • 1
    5243198 COVER-MEGAPHONE, BOTTOM
    COVER-MEGAPHONE, BOTTOM
  • 1
    5830162 MATTE-SOUND
    MATTE-SOUND
  • 2
    7080740 CLAMP-WORM DRIVE, .44WX3.69DIA (.44 X 3.69)
    CLAMP-WORM DRIVE, .44WX3.69DIA (.44 X 3.69)
  • 2
    7080808 CLAMP-WORM DRIVE, .44WX5.5 DIA (.44 X 5.5)
    CLAMP-WORM DRIVE, .44WX5.5 DIA (.44 X 5.5)
  • 2
    7080809 CLAMP-WORM DRIVE, .44WX2.75 DIA (.44 X 2.75)
    CLAMP-WORM DRIVE, .44WX2.75 DIA (.44 X 2.75)
  • 3
    1260927 PIPE, TUNED (INCL. 1, 2)
    PIPE, TUNED (INCL. 1, 2)
  • 3
    1260876-029 PIPE, TUNED
    PIPE, TUNED
  • 4
    7515354 BOLT
    BOLT
  • 5
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 6
    7555734 WASHER, FLAT
    WASHER, FLAT
  • 7
    5243214 SHIELD-MUFFLER
    SHIELD-MUFFLER
  • 8
    7041687 SPRING
    SPRING
  • 9
    7621452 RIVET
    RIVET
  • 10
    5242735-067 BRACKET, TUNED PIPE/CHASSIS, (BLACK).
    BRACKET, TUNED PIPE/CHASSIS, (BLACK).
  • 11
    7556004 WASHER
    WASHER
  • 12
    5411576 DAMPENER-VIBRATION, W/RIBS
    DAMPENER-VIBRATION, W/RIBS
  • 14
    5410502 BOOT, EXHAUST
    BOOT, EXHAUST
  • 15
    7558212 WASHER, 13/64X1/2X18GA, FL-Y
    WASHER, 13/64X1/2X18GA, FL-Y
  • 16
    5432465 HAT, EXHAUST, STD
    HAT, EXHAUST, STD
  • 17
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 18
    7517555 SCREW, HXSOC
    SCREW, HXSOC
  • 19
    1260981-029 MANIFOLD, (BLACK) HI-TEM
    MANIFOLD, (BLACK) HI-TEM
  • 20
    5242798-067 SUPPORT, MUFFLER, FRT
    SUPPORT, MUFFLER, FRT
  • 21
    7661130 RIVET-3/16-.214-.420
    RIVET-3/16-.214-.420
  • 22
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
