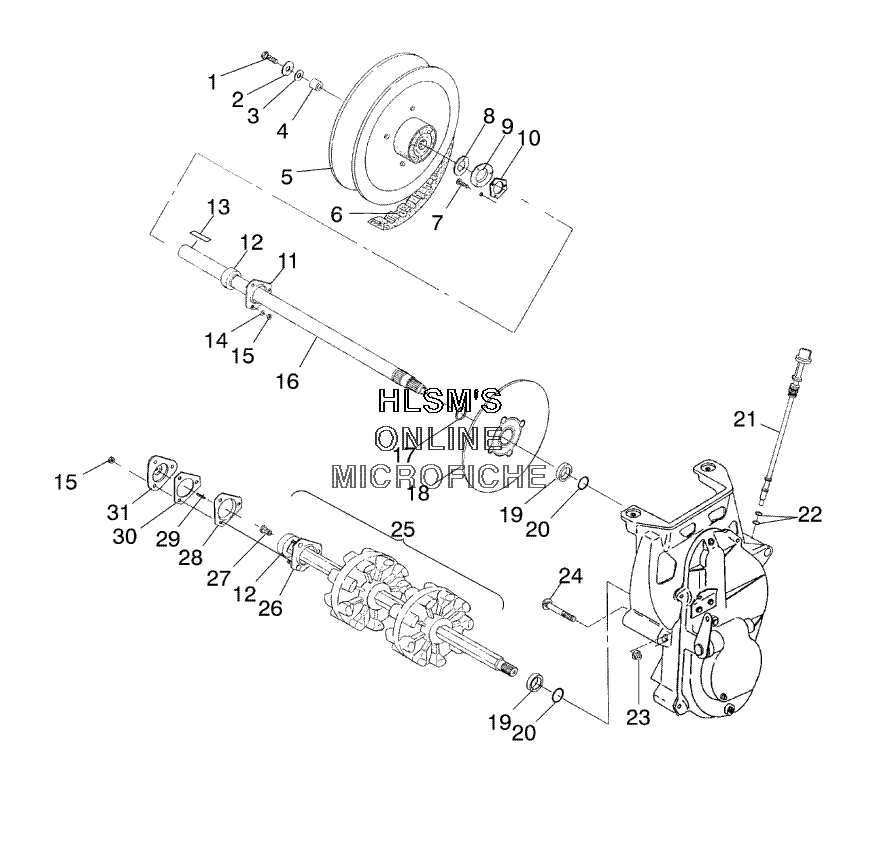

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris SPORT TOURING DELUXE (S03SU5BSA) - 2003 года выпуска`
-
№АртикулНазвание
-
17517820 BOLT 5/16-18X1 3/4 HX/LK-GR5-ZBOLT 5/16-18X1 3/4 HX/LK-GR5-Z
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
45020291 SPACERSPACER
-
63211070 DRIVE BELT, 28 DEG.DRIVE BELT, 28 DEG.
-
77512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
87556509 BUSHINGBUSHING
-
95241359 FLANGE RD, RELUBE W/ZERKFLANGE RD, RELUBE W/ZERK
-
105811095 GASKET, JACKSHAFT, (BLACK)GASKET, JACKSHAFT, (BLACK)
-
115222751 FLANGETTEFLANGETTE
-
123514525 BEARINGBEARING
-
137721128 KEY-1/4X3/16X2.75KEY-1/4X3/16X2.75
-
147558402 WASHER, FLATWASHER, FLAT
-
157542324 NUT, NYLOKNUT, NYLOK
-
161332207 JACKSHAFT ASSY., 15 SPL (INCL. 12, 17)JACKSHAFT ASSY., 15 SPL (INCL. 12, 17)
-
177710422 RING, RETAININGRING, RETAINING
-
181910612 DISC-BRAKE, FORGEDDISC-BRAKE, FORGED
-
195020588 SLEEVE, SEALSLEEVE, SEAL
-
205410613 O RINGO RING
-
215431419 DIPSTICK ASSY.DIPSTICK ASSY.
-
225410675 O-RINGO-RING
-
237542423 NUT, FLANGENUT, FLANGE
-
247515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
251590354 DRIVESHAFT ASSY. (INCL. 26-27)DRIVESHAFT ASSY. (INCL. 26-27)
-
261012945 FLANGETTE ASSY. W/SCREWSFLANGETTE ASSY. W/SCREWS
-
273280019 BUSHING METAL SPEEDOBUSHING METAL SPEEDO
-
285243529 FLANGETTE-OFFSET, W/HOLEFLANGETTE-OFFSET, W/HOLE
-
293280017 KEY, SPEEDOMETER, SQUAREKEY, SPEEDOMETER, SQUARE
-
305830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
313280116 ADAPTER, DRIVE, W/ZERKADAPTER, DRIVE, W/ZERK
