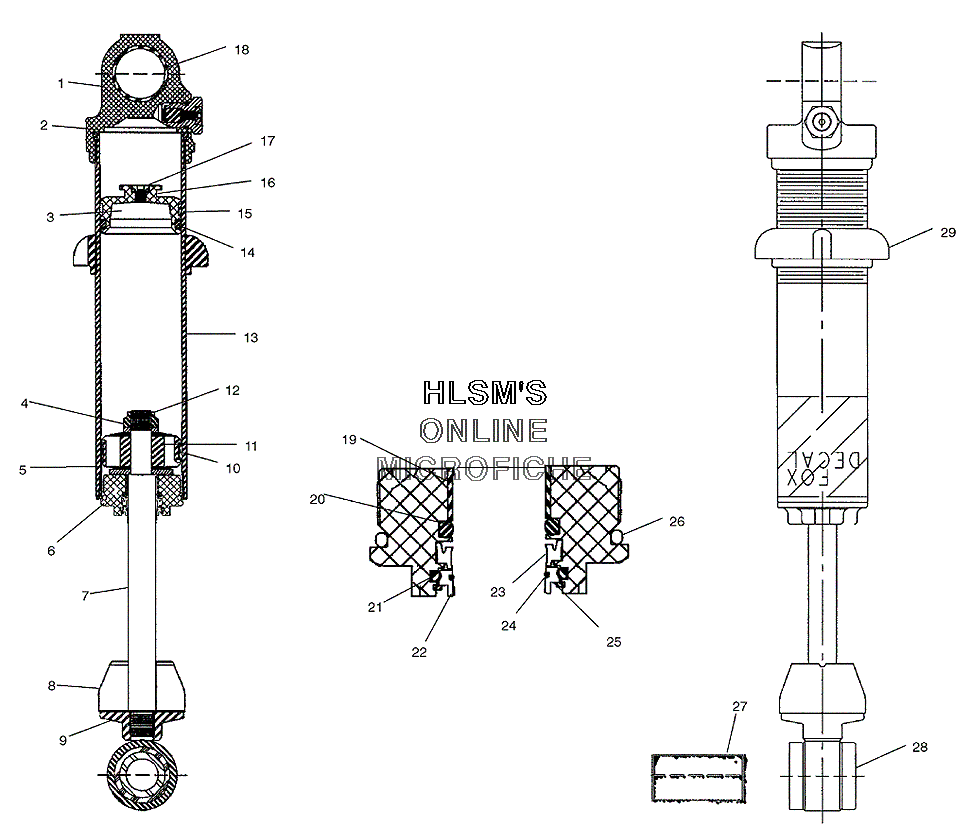

SUSPENSION - FRONT TRACK SHOCK для Polaris FRONTIER CLASSIC BUILT AFTER 1/1/02 (S03ND7DS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1500443 BODY CAP, ASSY
    BODY CAP, ASSY
  • 2
    1500108 O-RING (.103W-1.549ID)
    O-RING (.103W-1.549ID)
  • 3
    1500187 PISTON FLOATING
    PISTON FLOATING
  • 4
    1500015 PLATE, BACKUP
    PLATE, BACKUP
  • 5
    1500017 PLATE, TOP OUT
    PLATE, TOP OUT
  • 6
    1500186 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 7
    1500247 SHAFT
    SHAFT
  • 8
    1500441 BUMPER
    BUMPER
  • 9
    1500164 EYELET, BASE
    EYELET, BASE
  • 10
    1500002 BEARING, PISTON
    BEARING, PISTON
  • 11
    2200618 KIT VALV.PISTON
    KIT VALV.PISTON
  • 12
    1500016 NUT, LOCK
    NUT, LOCK
  • 13
    1500458 BODY ASSY
    BODY ASSY
  • 14
    1500003 O-RING ENDCAP
    O-RING ENDCAP
  • 15
    1500006 BEARING, EXTERNAL
    BEARING, EXTERNAL
  • 16
    1500022 O-RING DRUM (OUTER)
    O-RING DRUM (OUTER)
  • 17
    1500018 SCREW
    SCREW
  • 18
    1500444 BEARING RBC 003-10-000
    BEARING RBC 003-10-000
  • 19
    1500488 BEARING
    BEARING
  • 20
    1500127 O-RING
    O-RING
  • 21
    1500483 O-RING (.103X.73ID)
    O-RING (.103X.73ID)
  • 22
    1500485 SCRAPER FIST, BRONZE
    SCRAPER FIST, BRONZE
  • 23
    1500266 U-CUP 4300 URETH
    U-CUP 4300 URETH
  • 24
    1500484 O-RING (14MM IDX1 MM)
    O-RING (14MM IDX1 MM)
  • 25
    1500486 RING SNAP, INTERNAL
    RING SNAP, INTERNAL
  • 26
    1500228 O-RING
    O-RING
  • 27
    1500310 SLEEVE
    SLEEVE
  • 28
    1500309 BUSHING
    BUSHING
  • 29
    5432304 RING, SPRING PRELOAD ADJUST
    RING, SPRING PRELOAD ADJUST
  • 29
    7042223 SHOCK FRONT TRACK, M-10
    SHOCK FRONT TRACK, M-10
