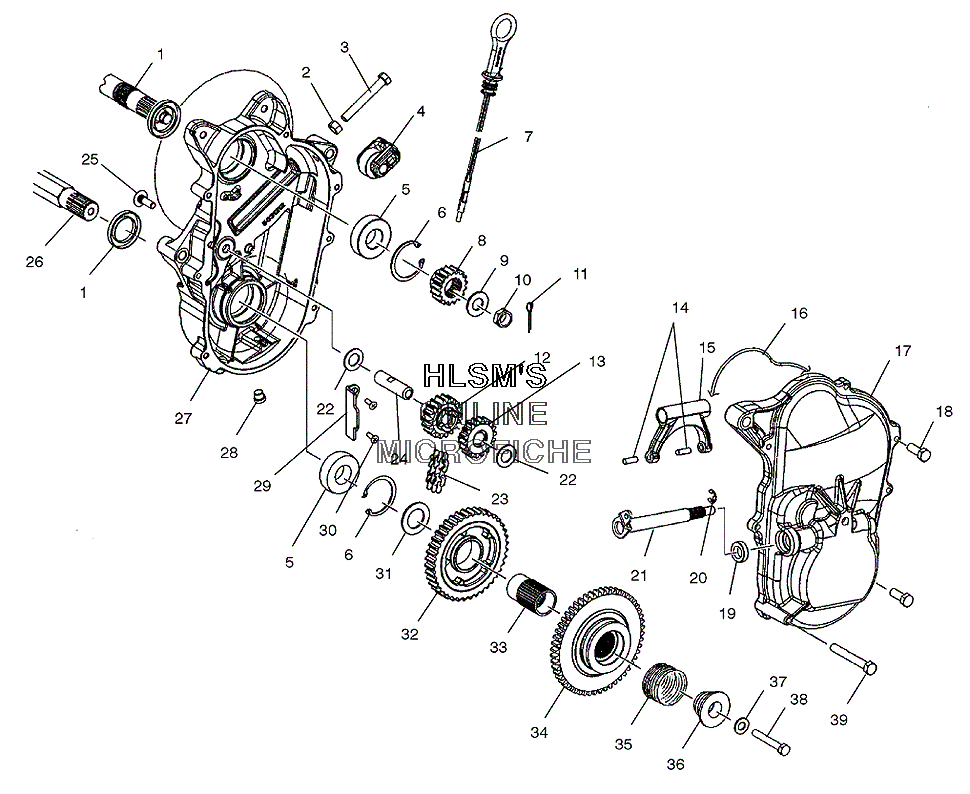

CHAINCASE ASSEMBLY для Polaris FRONTIER CLASSIC BUILT AFTER 1/1/02 (S03ND7DS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3610030 SEAL, OIL
    SEAL, OIL
  • 2
    7542404 NUT
    NUT
  • 3
    7515459 SCREW
    SCREW
  • 4
    1341437 TIGHTENER, CHAIN ASSY
    TIGHTENER, CHAIN ASSY
  • 5
    3514309 BEARING, BALL
    BEARING, BALL
  • 6
    7718406 RING, RETAINING
    RING, RETAINING
  • 7
    1332143 DIPSTICK, ASSY (INCL. O-RING)
    DIPSTICK, ASSY (INCL. O-RING)
  • 7
    5410675 O-RING
    O-RING
  • 8
    3221094 SPROCKET (18T, 3/4W, 15 SPLINE HYVO PM)
    SPROCKET (18T, 3/4W, 15 SPLINE HYVO PM)
  • 9
    7571620 WASHER, SPRING
    WASHER, SPRING
  • 10
    7547202 NUT 5/8-18 THIN, NYL INSERT-Y
    NUT 5/8-18 THIN, NYL INSERT-Y
  • 11
    7661401 PIN, COTTER
    PIN, COTTER
  • 12
    1341241 SPROCKET, PINION ASSY (18T, 3/4W)
    SPROCKET, PINION ASSY (18T, 3/4W)
  • 12
    3554508 BEARING, NEEDLE
    BEARING, NEEDLE
  • 13
    1341075 PINION GEAR, SPUR ASSY
    PINION GEAR, SPUR ASSY
  • 13
    3554508 BEARING, NEEDLE
    BEARING, NEEDLE
  • 14
    7661826 PIN, DOWEL
    PIN, DOWEL
  • 15
    2200363 SHIFT FORK/SHAFT, KIT (INCL. 14, 21)
    SHIFT FORK/SHAFT, KIT (INCL. 14, 21)
  • 15
    5130805 FORK, SHIFT
    FORK, SHIFT
  • 16
    5411497 GASKET, O-RING
    GASKET, O-RING
  • 17
    5133615 COVER CHAINCASE, REV
    COVER CHAINCASE, REV
  • 18
    7512242 SCREW
    SCREW
  • 19
    3610029 SEAL, OIL
    SEAL, OIL
  • 20
    7710415 RING, RETAINER
    RING, RETAINER
  • 21
    1341388-067 WELD SHAFT SHIFT (BLACK)
    WELD SHAFT SHIFT (BLACK)
  • 22
    7555877 WASHER, THRUST
    WASHER, THRUST
  • 23
    3221110 CHAIN, HYVO (72P, 3/4W)
    CHAIN, HYVO (72P, 3/4W)
  • 24
    5131770 SHAFT, PINION, W/WRENCH FLATS
    SHAFT, PINION, W/WRENCH FLATS
  • 25
    7515477 SCREW, CARRIAGE
    SCREW, CARRIAGE
  • 27
    5133579 CHAINCASE (7.92 CD)
    CHAINCASE (7.92 CD)
  • 28
    7052115 PLUG
    PLUG
  • 29
    5246421 BRACKET CHAIN RETENTION, W/TAB
    BRACKET CHAIN RETENTION, W/TAB
  • 30
    7512019 SCREW
    SCREW
  • 31
    7555871 WASHER
    WASHER
  • 32
    1341243 RVRSE GEAR HYVO (39T, 3/4" W)
    RVRSE GEAR HYVO (39T, 3/4" W)
  • 33
    5130720 COUPLER, DRIVE
    COUPLER, DRIVE
  • 34
    1341410 ASSY REVERSE GEAR
    ASSY REVERSE GEAR
  • 35
    7041887 SPRING COMPRESSION
    SPRING COMPRESSION
  • 36
    5130727 RETAINER, DRIVE COUPLER
    RETAINER, DRIVE COUPLER
  • 37
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 38
    7517581 SCREW
    SCREW
  • 39
    7518052 SCREW HEXAGON WH TRI RD-Y
    SCREW HEXAGON WH TRI RD-Y
