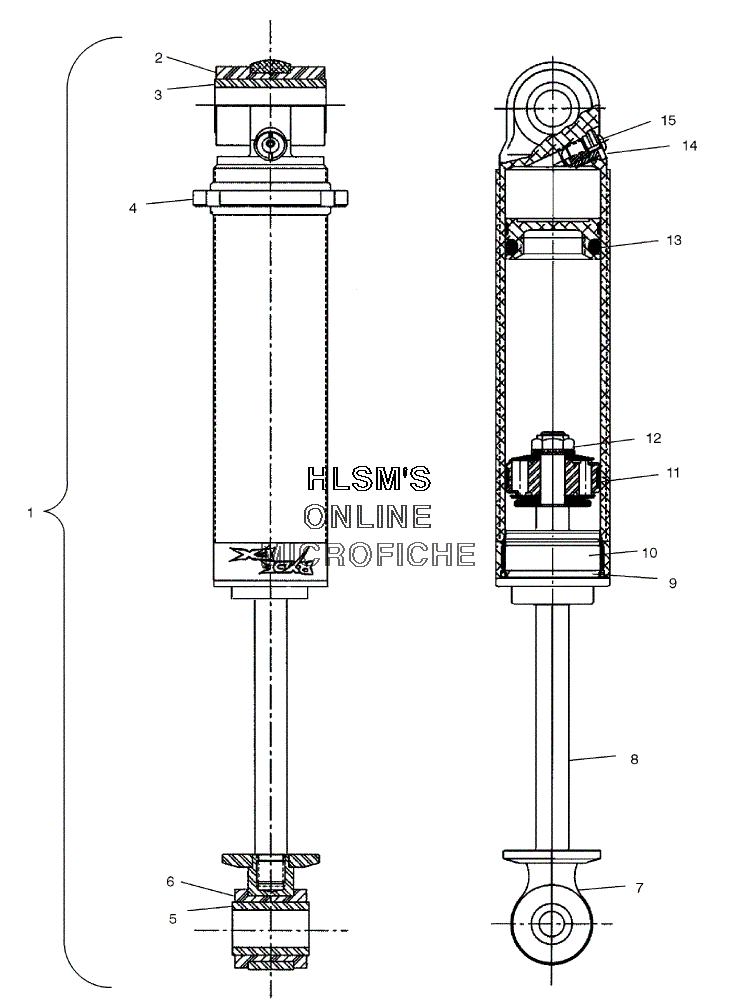

SUSPENSION - FRONT TRACK SHOCK для Polaris 700 XC SP EDGE X F/O (S03NA7CS) - 2003 года выпуска
-
№АртикулНазвание
-
17041975 SHOCK F/T IFPSHOCK F/T IFP
-
21700074 BUSHINGBUSHING
-
31700071 SLEEVE (.57"IDX.80"ODX1.68)SLEEVE (.57"IDX.80"ODX1.68)
-
41700033 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
51700069 SLEEVE (.57"IDX.80"ODX1.20)SLEEVE (.57"IDX.80"ODX1.20)
-
61700075 BUSHINGBUSHING
-
71700010 MOUNT (UPPER)MOUNT (UPPER)
-
81700026 SHAFTSHAFT
-
91700051 CYLINDER HEAD O-RINGCYLINDER HEAD O-RING
-
101700156 CYLINDER HEAD ASSY 215098-100CYLINDER HEAD ASSY 215098-100
-
111700103 BANDED PISTON ASSY .070" ORIFCEBANDED PISTON ASSY .070" ORIFCE
-
111700031 PISTON WEAR BANDPISTON WEAR BAND
-
111700077 WASHER (TOP/OUTER)WASHER (TOP/OUTER)
-
111700078 BACK UP WASHERBACK UP WASHER
-
121700057 NUTNUT
-
131700023 IFPIFP
-
131700032 IFP WEAR BANDIFP WEAR BAND
-
131700048 IFP O-RINGIFP O-RING
-
141700076 PRESS VALVE ASSYPRESS VALVE ASSY
-
151700056 VALVE SCREWVALVE SCREW
