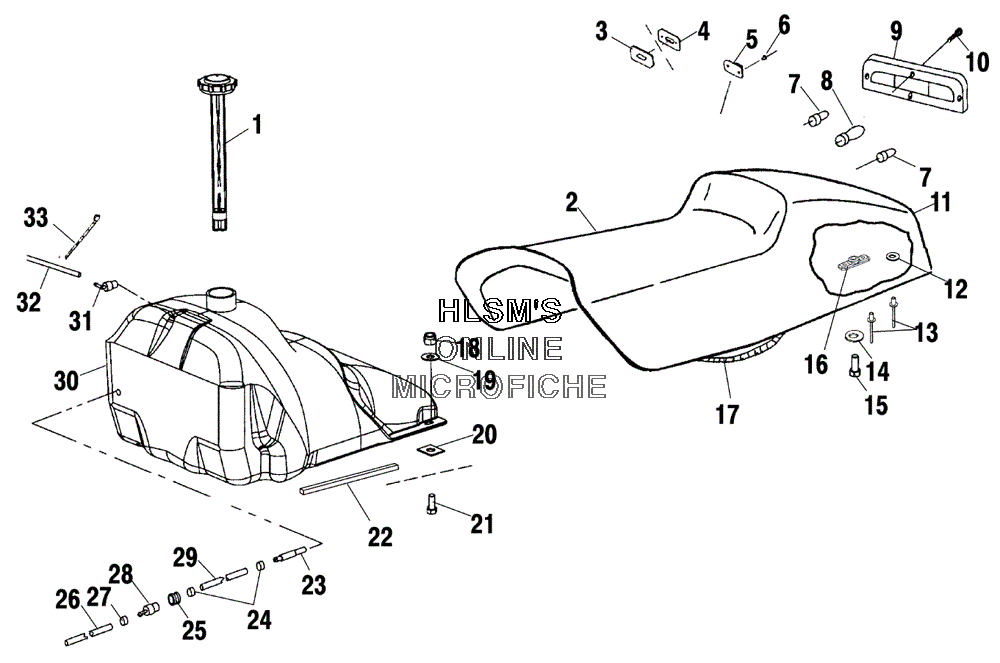

SEAT W/ GAS TANK ASSEMBLY для Polaris 700 XC SP EDGE X F/O (S03NA7CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1240066 CAP, FUEL 12 GAL W/GAUGE (13.50)
    CAP, FUEL 12 GAL W/GAUGE (13.50)
  • 2
    2683009 SEAT, ASSY EDGE (STD) (BLACK/BLUE)
    SEAT, ASSY EDGE (STD) (BLACK/BLUE)
  • 2
    2683010 SEAT COVER, ASSY EDGE (STD) (BLACK/BLUE)
    SEAT COVER, ASSY EDGE (STD) (BLACK/BLUE)
  • 2
    2683011 SEAT, ASSY EDGE (STD) (BLACK/RED)
    SEAT, ASSY EDGE (STD) (BLACK/RED)
  • 2
    2683012 SEAT COVER, ASSY EDGE (STD) (BLACK/RED)
    SEAT COVER, ASSY EDGE (STD) (BLACK/RED)
  • 2
    2683077 SEAT, ASSY EDGE X (RED)
    SEAT, ASSY EDGE X (RED)
  • 2
    2683078 COVER, ASSY EDGE X (RED)
    COVER, ASSY EDGE X (RED)
  • 2
    2683053 SEAT, ASSY EDGE X (SONIC BLUE)
    SEAT, ASSY EDGE X (SONIC BLUE)
  • 2
    2683054 COVER, ASSY EDGE X (SONIC BLUE)
    COVER, ASSY EDGE X (SONIC BLUE)
  • 2
    2683055 SEAT, ASSY EDGE X (BLACK)
    SEAT, ASSY EDGE X (BLACK)
  • 2
    2683056 COVER, ASSY EDGE X (BLACK)
    COVER, ASSY EDGE X (BLACK)
  • 3
    7080550 GROMMET RELATCH, 1" (BOTTOM)
    GROMMET RELATCH, 1" (BOTTOM)
  • 4
    7080549 GROMMET RELATCH, 1" (TOP)
    GROMMET RELATCH, 1" (TOP)
  • 5
    7080548 TWISTLOCK, RELATCH 1" W/HOLE
    TWISTLOCK, RELATCH 1" W/HOLE
  • 6
    7621337 RIVET
    RIVET
  • 7
    4030024 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 8
    4030045 BULB
    BULB
  • 9
    5430423 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 10
    7511840 SCREW
    SCREW
  • 11
    5433341 HOUSING TAILLIGHT
    HOUSING TAILLIGHT
  • 12
    7555727 WASHER
    WASHER
  • 13
    7621319 RIVET
    RIVET
  • 14
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 15
    7517219 SCREW
    SCREW
  • 16
    5631194 NUT SEAT
    NUT SEAT
  • 17
    2460399 HARNESS, TAILLIGHT
    HARNESS, TAILLIGHT
  • 18
    7542122 NUT NYLOK
    NUT NYLOK
  • 19
    7555960 WASHER, FLAT
    WASHER, FLAT
  • 20
    7670021 NUT, SPEED
    NUT, SPEED
  • 21
    7512193 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 22
    5810947 FOAM, SEAL
    FOAM, SEAL
  • 23
    7052215 PICK-UP, FUEL W/MESH
    PICK-UP, FUEL W/MESH
  • 24
    7080768 RING, COMPRESSION
    RING, COMPRESSION
  • 25
    5432981 GROMMET, NITRILE (1/2")
    GROMMET, NITRILE (1/2")
  • 26
    8350017-600 FUEL LINE, ETHER (5/16") (RED)
    FUEL LINE, ETHER (5/16") (RED)
  • 27
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 28
    7052269 FITTING, 5/16"/ 3/8 STRAIGHT
    FITTING, 5/16"/ 3/8 STRAIGHT
  • 29
    8350020-600 FUEL LINE, ETHER VLT (3/8")
    FUEL LINE, ETHER VLT (3/8")
  • 30
    2520262 FUEL TANK ASSY (INCL. 23-31)
    FUEL TANK ASSY (INCL. 23-31)
  • 31
    7052095 FITTING, 90 DEG
    FITTING, 90 DEG
  • 32
    8450061-600 LINE, FUEL (3MMX7MM)
    LINE, FUEL (3MMX7MM)
  • 33
    7080804 CABLE TIE RELEASABLE (5 1/2")
    CABLE TIE RELEASABLE (5 1/2")
