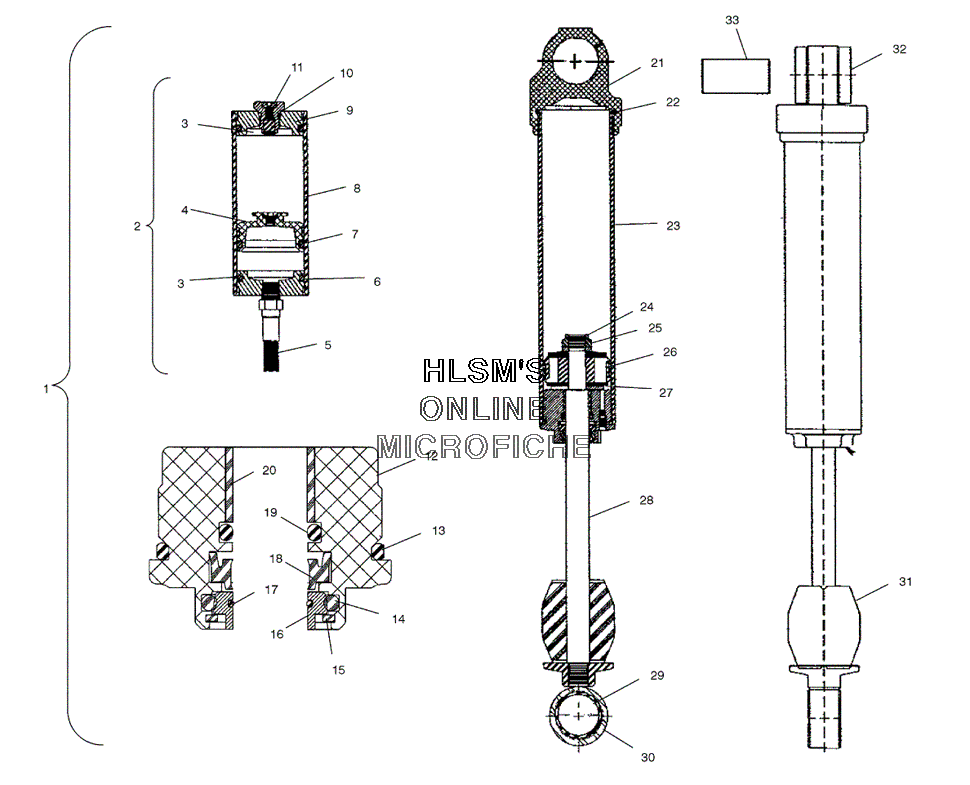

SHOCK (REAR TRACK) (M - 10 ACE) для Polaris 700 XC SP EDGE M-10 F/O (S03NF7CS) - 2003 года выпуска`
-
№АртикулНазвание
-
17042149 SHOCK - REAR TRACK, RE24, M10 (INCL. ALL)SHOCK - REAR TRACK, RE24, M10 (INCL. ALL)
-
21500449 ASSY. - RESERVIOR, NON ADJUST, 1.459 (INCL. 3 - 11ASSY. - RESERVIOR, NON ADJUST, 1.459 (INCL. 3 - 11
-
31500450 SEAL - O - RINGSEAL - O - RING
-
41500187 PISTON - FLOATINGPISTON - FLOATING
-
51500560 HOSEHOSE
-
61500163 ENDCAP ASSY., RESERVOIRENDCAP ASSY., RESERVOIR
-
71500003 O - RING, ENDCAPO - RING, ENDCAP
-
81500451 BODYBODY
-
91500160 RESERVOIR, ENDCAP ASSY.RESERVOIR, ENDCAP ASSY.
-
101500023 O - RING, OUTERO - RING, OUTER
-
111500014 VALVE ASSY., AIRVALVE ASSY., AIR
-
121500545 (INCL. 13 - 20)(INCL. 13 - 20)
-
131500020 O - RINGO - RING
-
141500483 O - RINGO - RING
-
151500486 RING - SNAP, INTERNALRING - SNAP, INTERNAL
-
161500485 SCRAPER - FIST, BRONZESCRAPER - FIST, BRONZE
-
171500484 O - RING 14MM IDX1 MMO - RING 14MM IDX1 MM
-
181500266 U - CUP - 4300 URETH, 036 - 01 - 006U - CUP - 4300 URETH, 036 - 01 - 006
-
191500021 O - RING INNERO - RING INNER
-
201500488 BEARING - .5 IDX.5 TLGBEARING - .5 IDX.5 TLG
-
211500563 ASSY. - BODY CAPASSY. - BODY CAP
-
221500108 O - RINGO - RING
-
231500561 BODYBODY
-
241500016 NUT, LOCKNUT, LOCK
-
251500015 PLATE, BACKUPPLATE, BACKUP
-
261500002 BEARING, PISTONBEARING, PISTON
-
271500017 PLATE, TOP OUTPLATE, TOP OUT
-
281500562 SHAFTSHAFT
-
291500444 BEARINGBEARING
-
301500564 EYELETEYELET
-
315410855 BUMPER, JOUNCEBUMPER, JOUNCE
-
321500309 BUSHING, .35ILG, .595TLGBUSHING, .35ILG, .595TLG
-
331500310 SLEEVE, .56X.81X1.2SLEEVE, .56X.81X1.2
