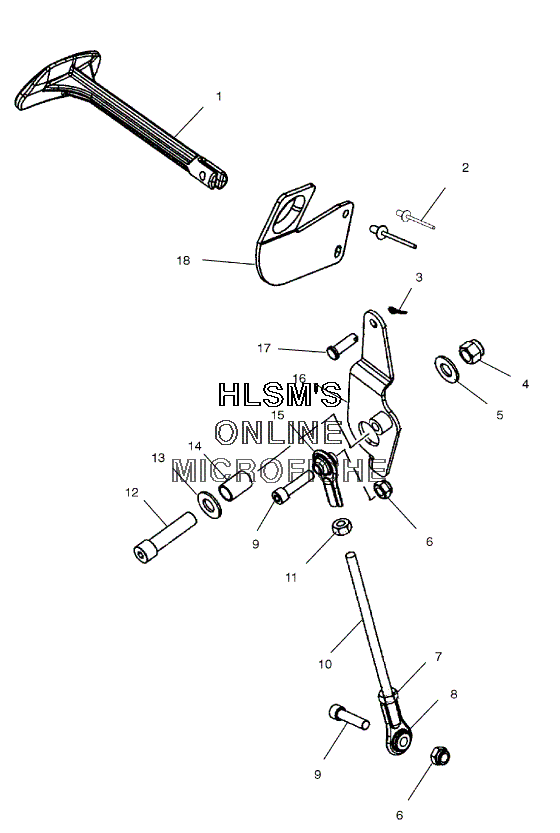

SHIFT - REVERSE MODELS для Polaris 700 XC SP EDGE M-10 F/O (S03NF7CS) - 2003 года выпуска
-
№АртикулНазвание
-
15434142 HANDLE - REVERSE, SRPHANDLE - REVERSE, SRP
-
27661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
37661010 PIN, COTTERPIN, COTTER
-
47542439 NUT, NYLOKNUT, NYLOK
-
57555933 WASHERWASHER
-
67542122 NUT - NYLOKNUT - NYLOK
-
77542129 NUTNUT
-
87060197 ROD ENDROD END
-
97512163 BOLTBOLT
-
105132361 ROD, THREADEDROD, THREADED
-
117547088 NUT, JAM, (LEFT)NUT, JAM, (LEFT)
-
127515415 SCREWSCREW
-
137555806 WASHER, FLATWASHER, FLAT
-
145334131 BUSHING - .385X.625X1.135BUSHING - .385X.625X1.135
-
157061030 ROD END, (LEFT), 1/4 - 28X.59ROD END, (LEFT), 1/4 - 28X.59
-
161341429 WELD - SHIFT ACTUATORWELD - SHIFT ACTUATOR
-
177661843 PIN - CLEVISPIN - CLEVIS
-
185245707 BRKT - SHIFT LEVER, GUIDE, SRPBRKT - SHIFT LEVER, GUIDE, SRP
