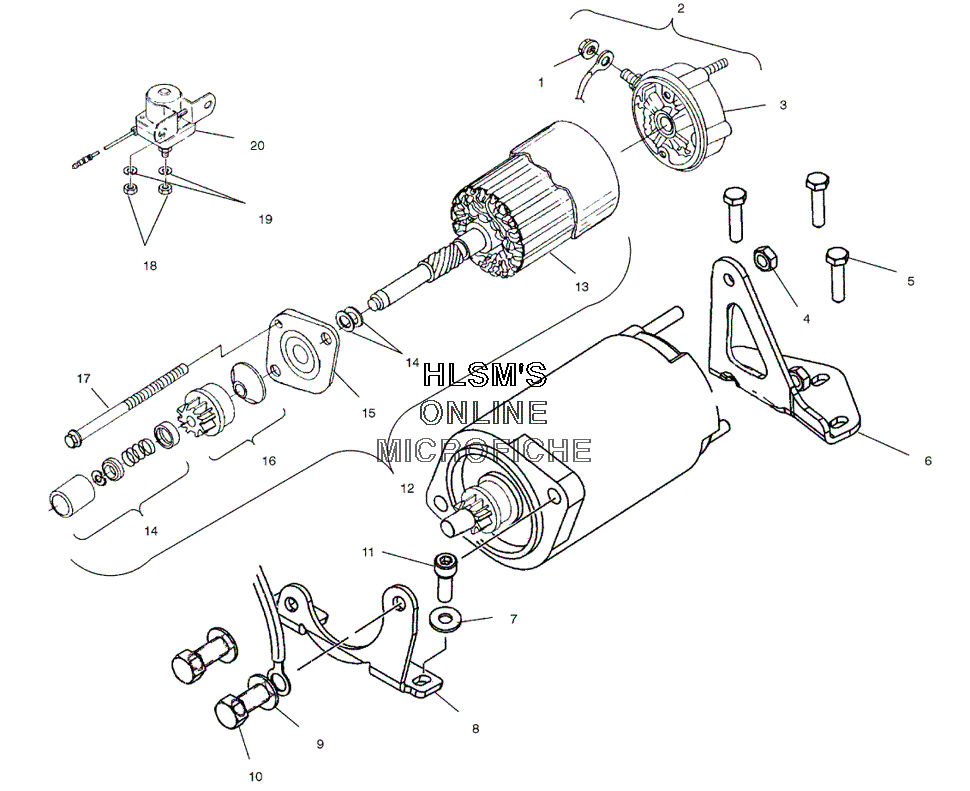

STARTING MOTOR для Polaris 600 XC SP EDGE (S03NP6ESA/B) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7542103 NUT, FLEXLOC
    NUT, FLEXLOC
  • 2
    2200758 KIT, COMMUTATOR CAP ASSY. (INCL. 3)
    KIT, COMMUTATOR CAP ASSY. (INCL. 3)
  • 3
    2200759 KIT, BRUSH AND SPRING
    KIT, BRUSH AND SPRING
  • 4
    7542153 NUT, NYLOK, FLANGED
    NUT, NYLOK, FLANGED
  • 5
    7516823 SCREW
    SCREW
  • 6
    5244250 BRKT, STARTER, REAR
    BRKT, STARTER, REAR
  • 7
    7555843 WASHER, WROUGHT
    WASHER, WROUGHT
  • 8
    5245467 BRKT - STARTER, FRONT, S44
    BRKT - STARTER, FRONT, S44
  • 9
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 10
    7512492 SCREW
    SCREW
  • 11
    7517322 SCREW
    SCREW
  • 12
    4170006 MOTOR, STARTER, DOMESTIC
    MOTOR, STARTER, DOMESTIC
  • 13
    2200756 KIT, ARMATURE ASSY.
    KIT, ARMATURE ASSY.
  • 14
    2200755 KIT, DRIVE HARDWARE
    KIT, DRIVE HARDWARE
  • 15
    2200757 KIT, DRIVECAP ASSY.
    KIT, DRIVECAP ASSY.
  • 16
    2200754 KIT, DRIVE ASSY.
    KIT, DRIVE ASSY.
  • 17
    2200753 KIT, SCREW
    KIT, SCREW
  • 18
    3082939 NUT
    NUT
  • 19
    3080077 WASHER SPRING
    WASHER SPRING
  • 20
    3083211 SWITCH - MAGNETIC
    SWITCH - MAGNETIC
