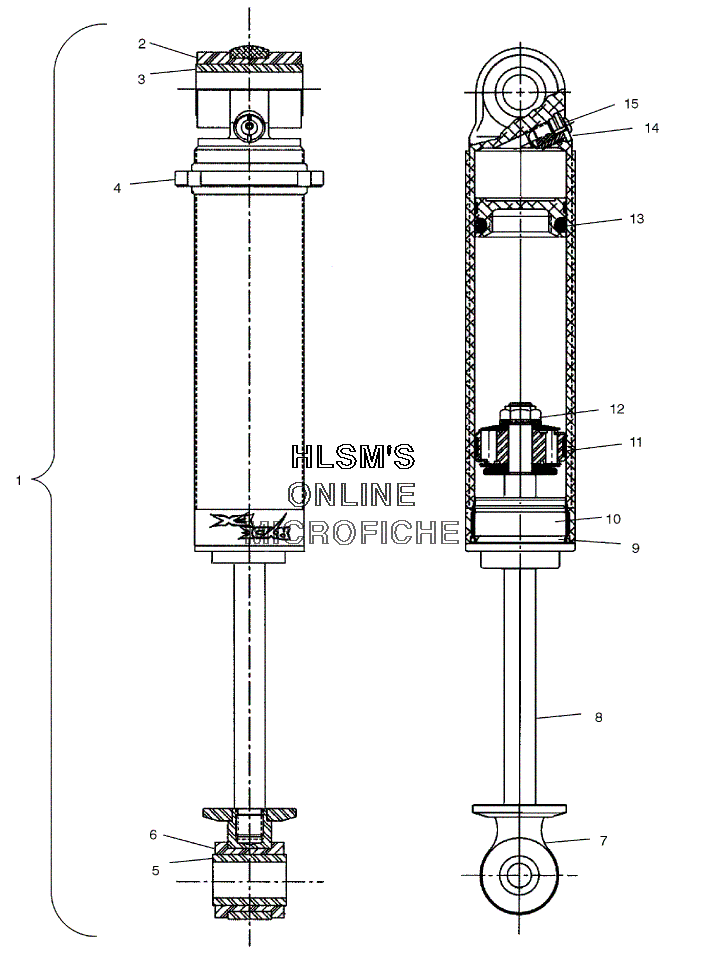

SHOCK (FRONT TRACK) для Polaris 600 XC SP EDGE (S03NP6ESA/B) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7041975 SHOCK - F/T IFP
    SHOCK - F/T IFP
  • 2
    1700074 BUSHING
    BUSHING
  • 3
    1700071 SLEEVE
    SLEEVE
  • 4
    1700033 NUT, SPRING RETAINER
    NUT, SPRING RETAINER
  • 5
    1700069 SLEEVE
    SLEEVE
  • 6
    1700075 BUSHING
    BUSHING
  • 7
    1700010 MOUNT, UPPER
    MOUNT, UPPER
  • 8
    1700026 SHAFT - 1/2"DIAX6.10"L
    SHAFT - 1/2"DIAX6.10"L
  • 9
    1700051 CYL - HEAD O - RING
    CYL - HEAD O - RING
  • 10
    1700156 CYL HEAD ASSY. 215098 - 100
    CYL HEAD ASSY. 215098 - 100
  • 11
    1700103 ASSY., BANDED PISTON .070" ORIFCE
    ASSY., BANDED PISTON .070" ORIFCE
  • 11
    1700031 PISTON WEAR BAND
    PISTON WEAR BAND
  • 11
    1700077 TOP - OUT WASHER
    TOP - OUT WASHER
  • 11
    1700078 BACK - UP WASHER
    BACK - UP WASHER
  • 12
    1700057 NUT
    NUT
  • 13
    1700023 IFP
    IFP
  • 13
    1700032 IFP WEAR BAND
    IFP WEAR BAND
  • 13
    1700048 IFP - O - RING
    IFP - O - RING
  • 14
    1700076 PRESS - VALVE ASSY
    PRESS - VALVE ASSY
  • 15
    1700056 VALVE SCREW
    VALVE SCREW
