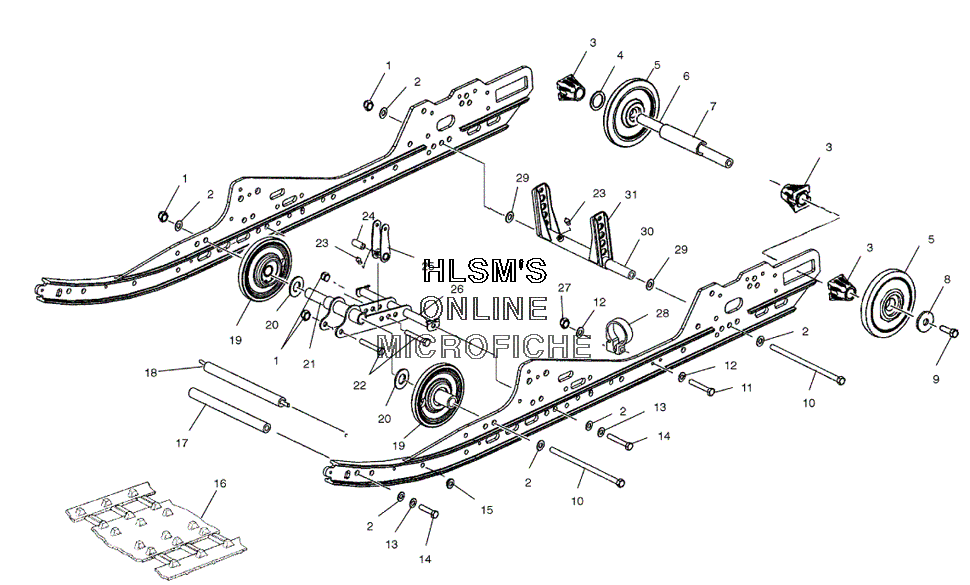

SUSPENSION/TRACK для Polaris 600 PRO X (S03NX6ES) - 2003 года выпуска`
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
27555806 WASHER, FLATWASHER, FLAT
-
35432535 SPACER, IDLERSPACER, IDLER
-
47555918 BUSHINGBUSHING
-
51594087 ASSY., WHEEL, PLAIN (6.38 O.D.)ASSY., WHEEL, PLAIN (6.38 O.D.)
-
57710444 RING, RETAININGRING, RETAINING
-
53514012 BEARINGBEARING
-
65132066 SHAFT - IDLER, .784X13.22, 7075SHAFT - IDLER, .784X13.22, 7075
-
75333285 SPACER, IDLER, LONGSPACER, IDLER, LONG
-
87556130 WASHERWASHER
-
97517731 BOLTBOLT
-
107517921 SCREWSCREW
-
117515328 BOLTBOLT
-
127558402 WASHER, FLATWASHER, FLAT
-
137552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
147517247 SCREWSCREW
-
157547030 PALNUTPALNUT
-
165411994 TRACK, 121"X1", SHOCKWAVE, SNOWTRACK, 121"X1", SHOCKWAVE, SNOW
-
165222840 CLIP, GUIDECLIP, GUIDE
-
175020723 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
185334197-067 TUBE - CROSS SHAFT, 5/16X9.75 (BLACK)TUBE - CROSS SHAFT, 5/16X9.75 (BLACK)
-
191590368 ASSY. - WHEEL, BOGIE, LWT, HOLEASSY. - WHEEL, BOGIE, LWT, HOLE
-
207556301 BUSHINGBUSHING
-
215133232 SHAFT - .750X.390X8.665, ALSHAFT - .750X.390X8.665, AL
-
227515417 SCREWSCREW
-
237080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
245133233 BUSHINGBUSHING
-
251541638-067 WELD - SHOCK PIVOT ARM, 3.50 (BLACK)WELD - SHOCK PIVOT ARM, 3.50 (BLACK)
-
261541711-067 WELD - MNT, SHOCK (BLACK)WELD - MNT, SHOCK (BLACK)
-
277542324 NUT, NYLOKNUT, NYLOK
-
285132968 CLAMP - RESERVOIRCLAMP - RESERVOIR
-
297555893 WASHER, FLATWASHER, FLAT
-
305334026 SHAFT - .740X.390X8.490, ANODIZESHAFT - .740X.390X8.490, ANODIZE
-
311541713-067 WELD - REAR PIVOT ARM, 4.25 (BLACK)WELD - REAR PIVOT ARM, 4.25 (BLACK)
