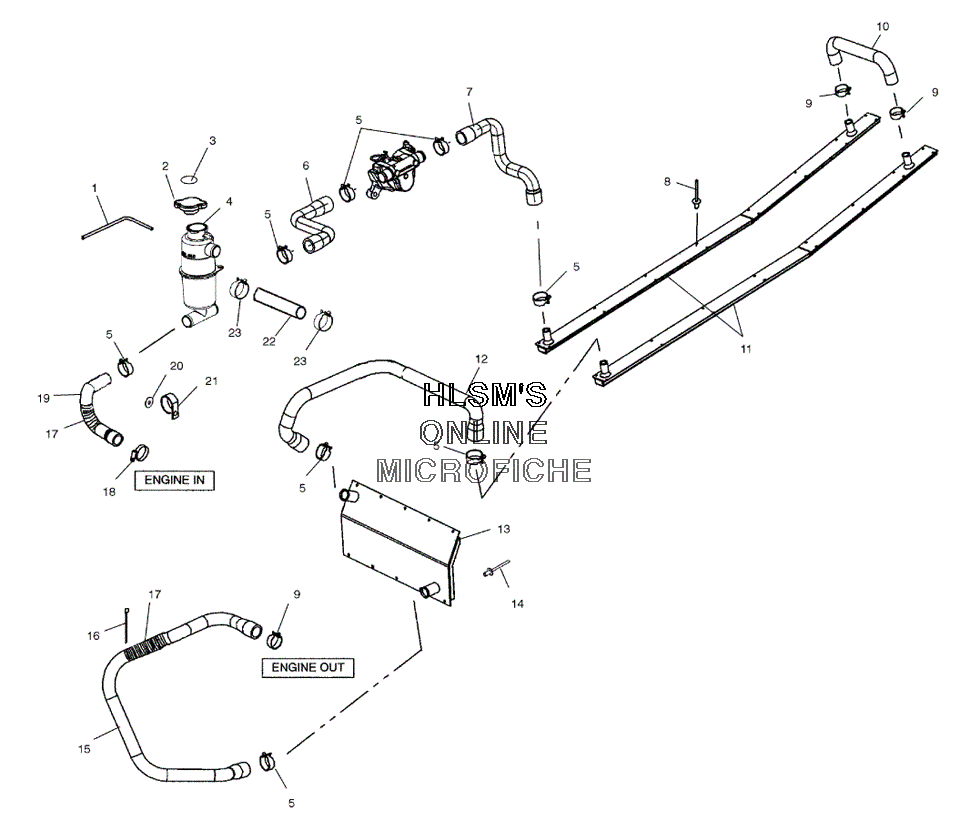

COOLING SYSTEM для Polaris 600 PRO X (S03NX6ES) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    8450003-1525 LINE, FUEL
    LINE, FUEL
  • 2
    2511270 CAP, PRESSURE
    CAP, PRESSURE
  • 3
    7170063 DECAL - WATER BOTTLE CAP
    DECAL - WATER BOTTLE CAP
  • 4
    2520314 WELD - COOLANT, BOTTLE
    WELD - COOLANT, BOTTLE
  • 5
    7080844 CLAMP, SPRINGBAND
    CLAMP, SPRINGBAND
  • 6
    5412219 HOSE - BRAKE OUT/BOTTLE IN
    HOSE - BRAKE OUT/BOTTLE IN
  • 7
    5411852 HOSE, STRIP COOLER/BRAKE
    HOSE, STRIP COOLER/BRAKE
  • 8
    7621432 RIVET
    RIVET
  • 9
    7080843 CLAMP, SPRINGBAND
    CLAMP, SPRINGBAND
  • 10
    5411854 HOSE, CROSSOVER, WEAR STRIP
    HOSE, CROSSOVER, WEAR STRIP
  • 11
    1240097 WELD - WEARSTRIP COOLER
    WELD - WEARSTRIP COOLER
  • 12
    5412050 HOSE - CEN COOL OUT/STRIP IN
    HOSE - CEN COOL OUT/STRIP IN
  • 13
    2520232 WELD - COOLER, BULKHEAD
    WELD - COOLER, BULKHEAD
  • 14
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 15
    5412051 HOSE - ENGINE OUT CEN COOL IN
    HOSE - ENGINE OUT CEN COOL IN
  • 16
    7080817 CABLE TIE
    CABLE TIE
  • 17
    5521510 TUBING - CONVOLUTED
    TUBING - CONVOLUTED
  • 18
    7080560 CLAMP, HOSE S.S.
    CLAMP, HOSE S.S.
  • 19
    5412052 HOSE - BOTTLE TO PUMP
    HOSE - BOTTLE TO PUMP
  • 20
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 21
    7080908 CLAMP, HOSE
    CLAMP, HOSE
  • 22
    5412174 HOSE - BYPASS
    HOSE - BYPASS
  • 23
    7080533 CLAMP
    CLAMP
