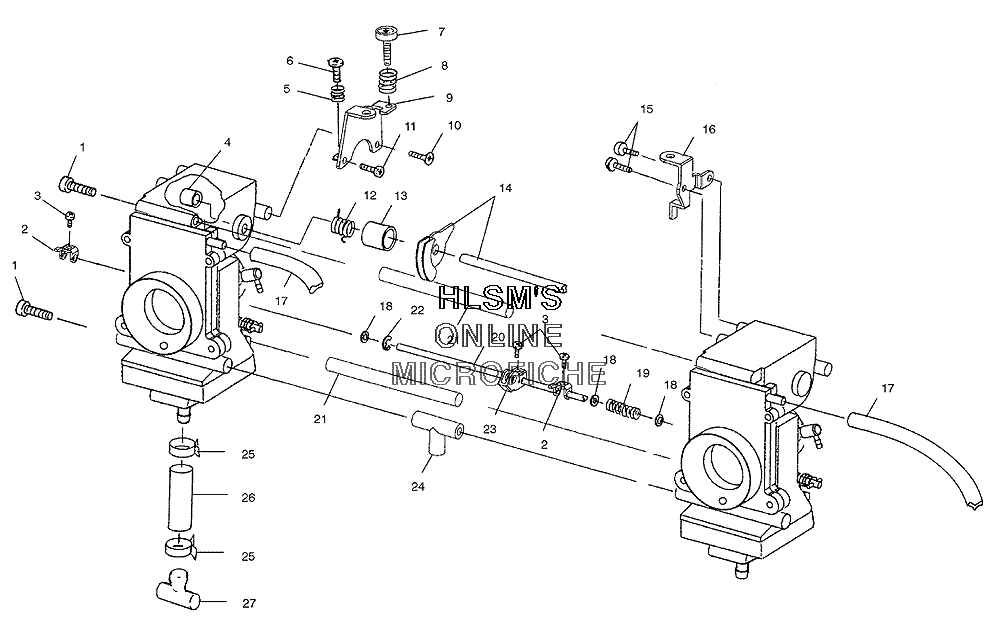

CARBURETOR LINKAGE ASSEMBLY для Polaris 600 CLASSIC TOURING (S03ST6ES) - 2003 года выпуска`
-
№АртикулНазвание
-
13130834 BOLTBOLT
-
23130832 LEVERLEVER
-
33130833 SCREWSCREW
-
43140032 RINGRING
-
53130817 SPRINGSPRING
-
63130816 SCREWSCREW
-
73130812 ADJUSTERADJUSTER
-
83130811 SPRINGSPRING
-
93131380 BRACKETBRACKET
-
103130810 SCREWSCREW
-
113130809 SCREWSCREW
-
123130950 SPRINGSPRING
-
133130853 RINGRING
-
143131370 SHAFT ASSYSHAFT ASSY
-
153130821 SCREWSCREW
-
163130820 BRACKETBRACKET
-
173130826 HOSEHOSE
-
183130842 PACKING, SHAFTPACKING, SHAFT
-
193130841 SPRING, SHAFTSPRING, SHAFT
-
203130840 SHAFTSHAFT
-
213130852 RINGRING
-
223130839 E RINGE RING
-
233130819 LEVER, STARTERLEVER, STARTER
-
243131374 NIPPLE ASSYNIPPLE ASSY
-
257080003 CLAMP, HOSECLAMP, HOSE
-
268350017-600 FUEL LINE, ETHER (RED) (5/16")FUEL LINE, ETHER (RED) (5/16")
-
275431893 PLUG, TRAPPLUG, TRAP
