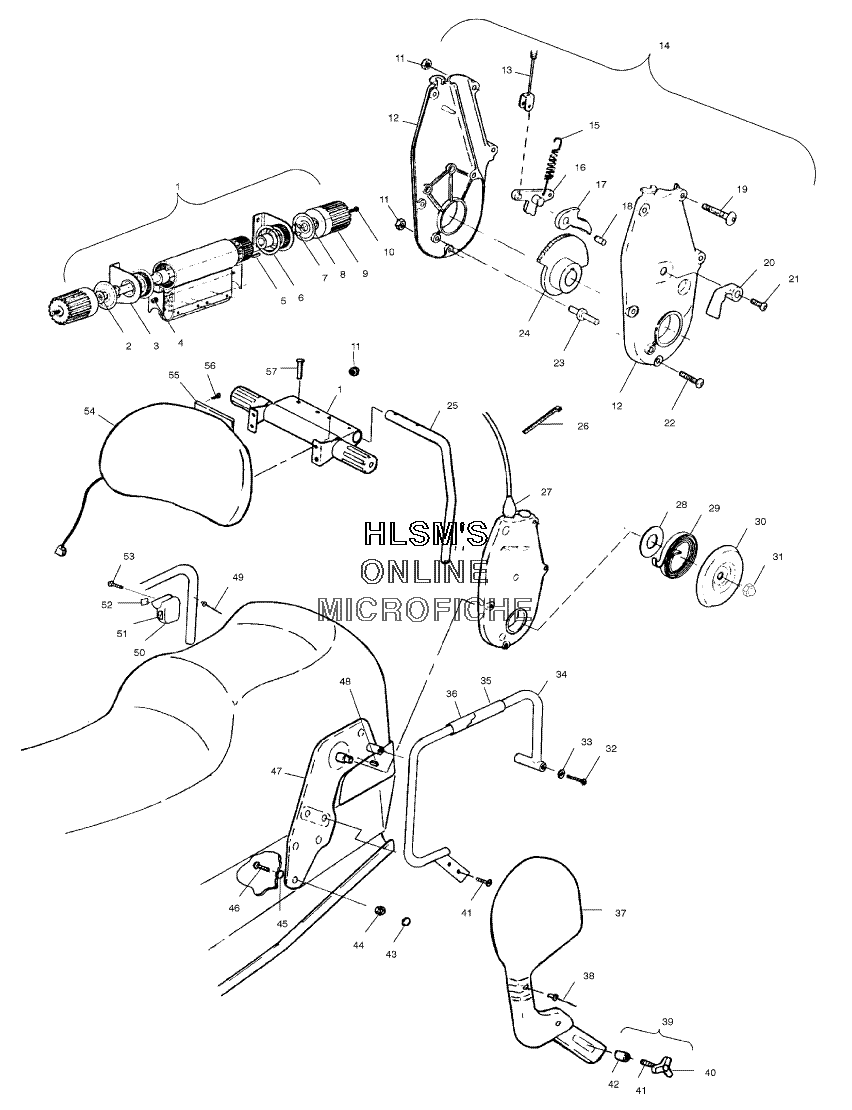

BACKREST ASSEMBLY для Polaris 600 CLASSIC TOURING (S03ST6ES) - 2003 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    1012534 ADJUST ASSY, BACKREST CUSHION (INCL. 2-5, 7, 8, 10)
    ADJUST ASSY, BACKREST CUSHION (INCL. 2-5, 7, 8, 10)
  • 2
    7571635 WASHER, WAVE
    WASHER, WAVE
  • 3
    1012535 BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 4
    7511866 SCREW
    SCREW
  • 5
    7721118 KEY, SQUARE
    KEY, SQUARE
  • 6
    5131207 ROTOR
    ROTOR
  • 7
    7710901 E-RING
    E-RING
  • 8
    7571634 WASHER
    WASHER
  • 9
    5432112 KNOB, ADJUST
    KNOB, ADJUST
  • 10
    7512087 SCREW
    SCREW
  • 11
    7542122 NUT NYLOK
    NUT NYLOK
  • 12
    5131211-067 HOUSING (ADJUST, BACKREST) (LEFT)
    HOUSING (ADJUST, BACKREST) (LEFT)
  • 12
    5131212-067 HOUSING (ADJUST, BACKREST) (RIGHT)
    HOUSING (ADJUST, BACKREST) (RIGHT)
  • 13
    7080582 CABLE ASSY, ACTUATOR
    CABLE ASSY, ACTUATOR
  • 14
    1013409 BACKREST ASSY, ADJUSTER (INCL. 11-24)
    BACKREST ASSY, ADJUSTER (INCL. 11-24)
  • 15
    7041411 SPRING, LOCKING
    SPRING, LOCKING
  • 16
    5245040 LOCKING PAWL MASTER (LEFT)
    LOCKING PAWL MASTER (LEFT)
  • 16
    5245041 LOCKING PAWL (RIGHT)
    LOCKING PAWL (RIGHT)
  • 17
    5245042 SECTOR ENGAGEMENT
    SECTOR ENGAGEMENT
  • 18
    5020806 PIN, PIVOT
    PIN, PIVOT
  • 19
    7515171 BOLT
    BOLT
  • 20
    5631126-067 LEVER LOCKING (BLACK)
    LEVER LOCKING (BLACK)
  • 21
    7516915 SCREW
    SCREW
  • 22
    7515170 BOLT
    BOLT
  • 23
    5020822 STUD LIMITER
    STUD LIMITER
  • 24
    5245039 GEAR STATIONARY
    GEAR STATIONARY
  • 25
    5224761-067 TUBE, BACKREST MOUNT (BLACK)
    TUBE, BACKREST MOUNT (BLACK)
  • 26
    7080138 CABLE TIE
    CABLE TIE
  • 27
    5432259 COVER, CABLE (BLACK)
    COVER, CABLE (BLACK)
  • 28
    7555926 WASHER, THRUST
    WASHER, THRUST
  • 29
    7041412 SPRING, TORSION PRELOAD
    SPRING, TORSION PRELOAD
  • 30
    5241935-067 COVER, SPRING (1/2" ID) (BLACK)
    COVER, SPRING (1/2" ID) (BLACK)
  • 31
    7547015 NUT
    NUT
  • 32
    7512307 SCREW
    SCREW
  • 33
    7555734 WASHER, FLAT
    WASHER, FLAT
  • 34
    1012657-067 HANDLE, GRAB (LEFT/BLACK)
    HANDLE, GRAB (LEFT/BLACK)
  • 34
    1012658-067 HANDLE, GRAB (RIGHT/BLACK)
    HANDLE, GRAB (RIGHT/BLACK)
  • 35
    2460721 GRIP, HEATED PASS
    GRIP, HEATED PASS
  • 36
    5811725 TAPE, FOAM
    TAPE, FOAM
  • 37
    5432078 DEFLECTOR, AIR (LEFT)
    DEFLECTOR, AIR (LEFT)
  • 37
    5432079 DEFLECTOR, AIR (RIGHT)
    DEFLECTOR, AIR (RIGHT)
  • 38
    7621341 RIVET,
    RIVET,
  • 39
    1012385 KNOB, GRAB HANDLE (INCL. 40-42)
    KNOB, GRAB HANDLE (INCL. 40-42)
  • 40
    5630386-067 KNOB, BACKREST
    KNOB, BACKREST
  • 41
    7515328 BOLT
    BOLT
  • 42
    5432123 SPACER, ADJUST KNOB
    SPACER, ADJUST KNOB
  • 43
    7080592 CAPLUG (3/4")
    CAPLUG (3/4")
  • 44
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 45
    7547030 PALNUT
    PALNUT
  • 46
    7512377 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 47
    1012539-067 MAINFRAME (LEFT/BLACK)
    MAINFRAME (LEFT/BLACK)
  • 47
    1012540-067 MAINFRAME (RIGHT/BLACK)
    MAINFRAME (RIGHT/BLACK)
  • 48
    7721125 KEY, HI PRO
    KEY, HI PRO
  • 49
    7621229 RIVET
    RIVET
  • 50
    5432120 HOUSING SWITCH
    HOUSING SWITCH
  • 51
    2460537 HARNESS, PASSENGER GRIP HEATER SWITCH
    HARNESS, PASSENGER GRIP HEATER SWITCH
  • 52
    7075418 DECAL, HIGH/LOW/OFF
    DECAL, HIGH/LOW/OFF
  • 53
    7527815 SCREW, TAPPING
    SCREW, TAPPING
  • 54
    2682757 BACKREST CUSHION ASSY, W/LIGHT
    BACKREST CUSHION ASSY, W/LIGHT
  • 54
    2682758 BACKREST ASSY, COVER W/LIGHT
    BACKREST ASSY, COVER W/LIGHT
  • 55
    2432040 TAILLIGHT ASSY, BACKREST
    TAILLIGHT ASSY, BACKREST
  • 55
    4030015 BULB TAILLIGHT/TACHOMETER /SPEEDOMETER
    BULB TAILLIGHT/TACHOMETER /SPEEDOMETER
  • 56
    7512054 SCREW
    SCREW
  • 57
    7661637 RIVET, INTERLOCK Z
    RIVET, INTERLOCK Z
