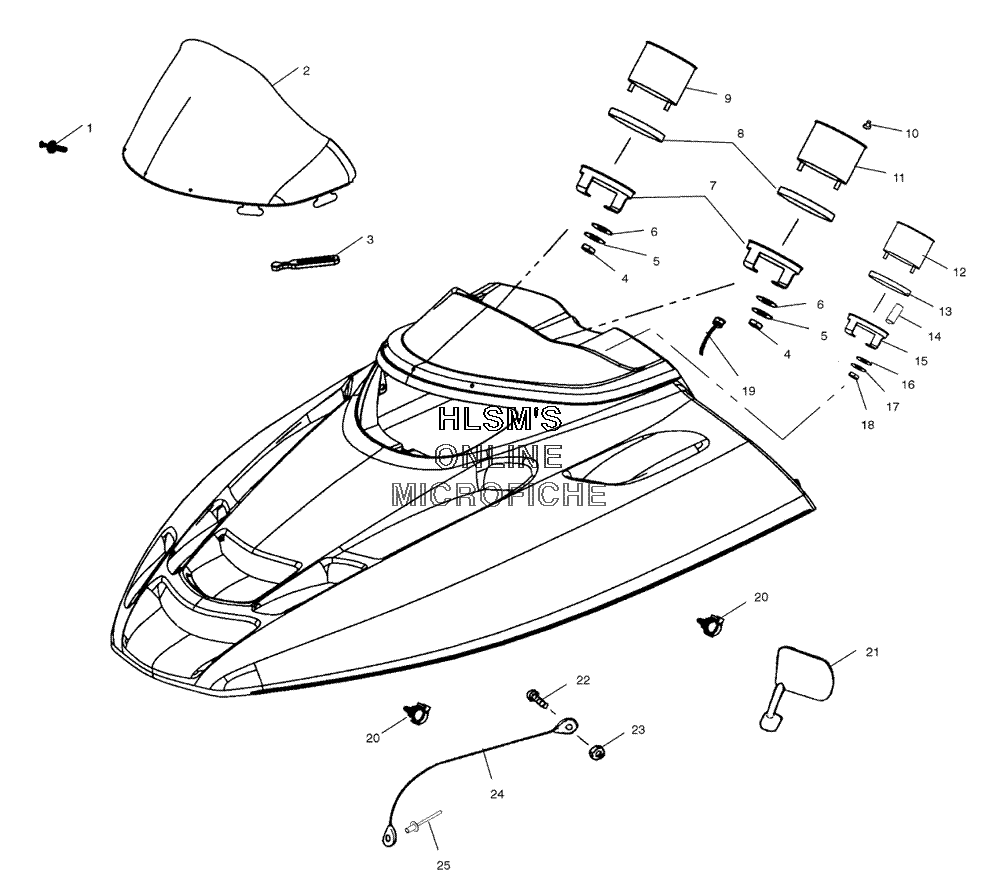

WINDSHIELD W/ GUAGES AND HOOD RETAINER для Polaris 600 CLASSIC (S03ND6ES) - 2003 года выпуска`
-
№АртикулНазвание
-
17621509 RIVET, PLASTI LOCKRIVET, PLASTI LOCK
-
25433517 WINDSHIELD 15" EDGE (SMOKE)WINDSHIELD 15" EDGE (SMOKE)
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
43280158 NUTNUT
-
53280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
63280157 WASHER, FLATWASHER, FLAT
-
73280210 BRACKET, TACHOMETER/SPEEDOMETER 5"BRACKET, TACHOMETER/SPEEDOMETER 5"
-
83280209 CUSHION, TACHOMETER/SPEEDOMETER RUBBERCUSHION, TACHOMETER/SPEEDOMETER RUBBER
-
93280413 TACHOMETER, 5" WITH REV ASSY (WHITE/BLACK)TACHOMETER, 5" WITH REV ASSY (WHITE/BLACK)
-
94030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
103280186 KNOB, TRIP ODOMETER THEAD (LEFT)KNOB, TRIP ODOMETER THEAD (LEFT)
-
113280411 SPEEDOMETER, 5" 120MPH ASSY (WHITE/BLACK)SPEEDOMETER, 5" 120MPH ASSY (WHITE/BLACK)
-
114030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
123280410 FUEL GAUGE, 2" BACKLIGHT ASSY (WHITE/BLACK)FUEL GAUGE, 2" BACKLIGHT ASSY (WHITE/BLACK)
-
133280230 CUSHION, FUELGAUGE RUBBERCUSHION, FUELGAUGE RUBBER
-
143280228 SPACER, BRACKET (FUEL GAUGE)SPACER, BRACKET (FUEL GAUGE)
-
153280229 BRACKET, FUEL GAUGEBRACKET, FUEL GAUGE
-
163280231 WASHERWASHER
-
173280233 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
183280232 NUTNUT
-
193280385 CABLE SPEEDOMETERCABLE SPEEDOMETER
-
204010589 CLIP PLASTIC, DART NYLONCLIP PLASTIC, DART NYLON
-
212632246-070 MIRROR ASSY (LEFT/BLACK)MIRROR ASSY (LEFT/BLACK)
-
212632247-070 MIRROR ASSY (RIGHT/BLACK)MIRROR ASSY (RIGHT/BLACK)
-
217556088 WASHER, FLATWASHER, FLAT
-
217546703 NUT, NYLOKNUT, NYLOK
-
227512018 SCREWSCREW
-
237541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
247080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
257661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
