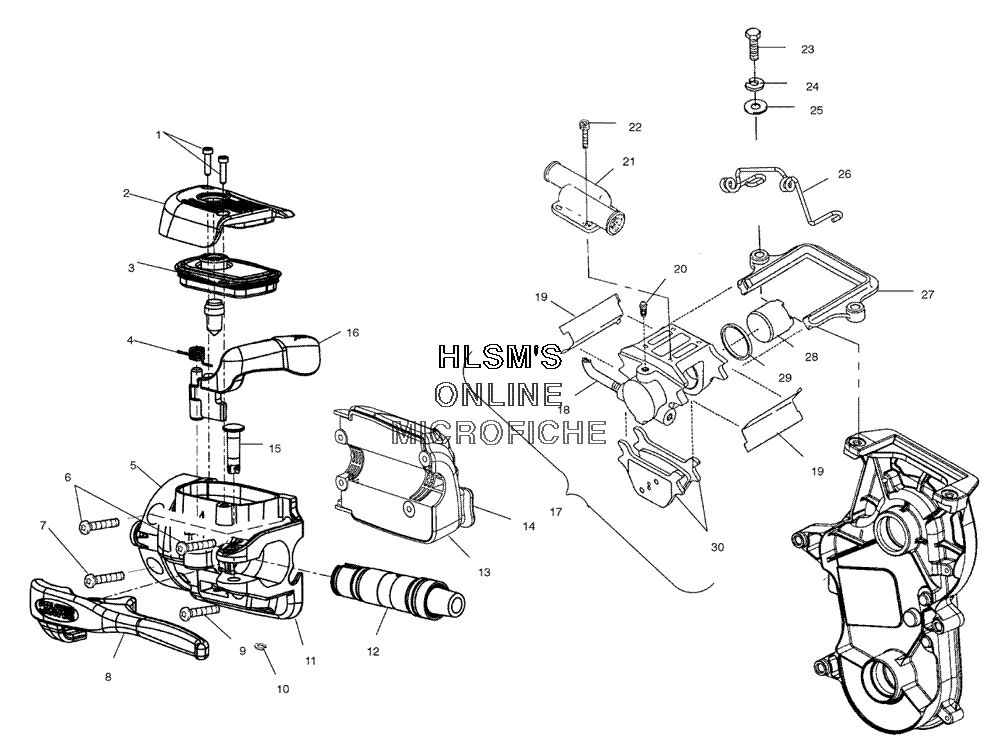

BRAKE ASSEMBLY для Polaris 600 CLASSIC (S03ND6ES) - 2003 года выпуска
-
№АртикулНазвание
-
12201254 COVER SCREW KITCOVER SCREW KIT
-
22201255 COVER ASSEMBLY KIT (INCL. 1, 3)COVER ASSEMBLY KIT (INCL. 1, 3)
-
42201250 PARK LEVER SPRING KITPARK LEVER SPRING KIT
-
52010219 MASTER CYLINDER WITH PIPE KIT ASSY (INCL. 2, 4, 8, 11, 12, 15)MASTER CYLINDER WITH PIPE KIT ASSY (INCL. 2, 4, 8, 11, 12, 15)
-
67517441 SCREW (.75)SCREW (.75)
-
77512078 SCREW (1.12)SCREW (1.12)
-
82201943 LEVER, 3 NOTCH/PIN/RING KITLEVER, 3 NOTCH/PIN/RING KIT
-
97517566 SCREW (1.50)SCREW (1.50)
-
102201945 SNAP RING KITSNAP RING KIT
-
112202146 MASTER CYLINDER WITH PIPE KIT ASSYMASTER CYLINDER WITH PIPE KIT ASSY
-
114010157 SWITCH, BRAKE LIGHTSWITCH, BRAKE LIGHT
-
122201944 5/8" CARTRIDGE SUB KIT ASSY5/8" CARTRIDGE SUB KIT ASSY
-
132010206 CONTROL, E/R BASIC ASSY (LEFT)CONTROL, E/R BASIC ASSY (LEFT)
-
145433291 BUTTON SWITCH HI/LO CONTROL (LEFT)BUTTON SWITCH HI/LO CONTROL (LEFT)
-
152201946 PIVOT PIN, ALUMINUM WITH SNAP RING KITPIVOT PIN, ALUMINUM WITH SNAP RING KIT
-
162201251 PARK LEVER AND SPRING KIT (INCL. 4)PARK LEVER AND SPRING KIT (INCL. 4)
-
171910344 BRAKE CALIPER, HEAD LIQ (INCL. 28, 29, 30)BRAKE CALIPER, HEAD LIQ (INCL. 28, 29, 30)
-
181910546 LINE BRAKE, EDGE BRAIDEDLINE BRAKE, EDGE BRAIDED
-
192200467 CLIP SPRING KITCLIP SPRING KIT
-
201930735 INLET KITINLET KIT
-
211930728 COOLER, WATER BRAKECOOLER, WATER BRAKE
-
212201024 GASKET, BRAKE COOLERGASKET, BRAKE COOLER
-
221930729 PK/4, SCREW SET (PACKAGE OF 4)PK/4, SCREW SET (PACKAGE OF 4)
-
237515521 BOLTBOLT
-
247552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
257555801 WASHERWASHER
-
265244413 GUIDE ROPEGUIDE ROPE
-
271930733 CALIPER BRACKET KITCALIPER BRACKET KIT
-
281930734 PISTON SEAL KIT (INCL. 29)PISTON SEAL KIT (INCL. 29)
-
292200466 SEALSEAL
-
302201430 BRAKE, PAD KIT TYPE 81 (LARGE) (INCL. 19)BRAKE, PAD KIT TYPE 81 (LARGE) (INCL. 19)
