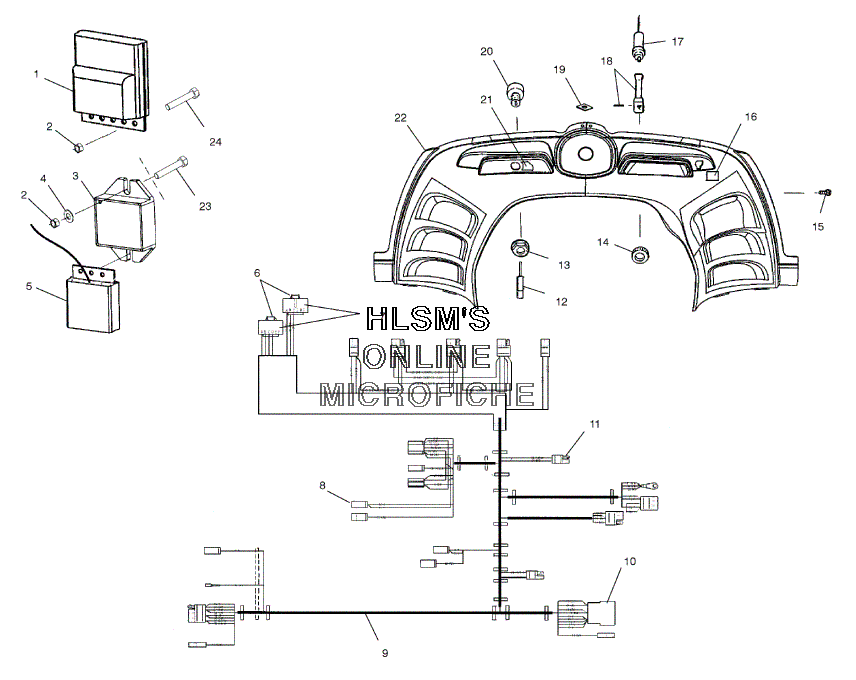

CONSOLE для Polaris 500 XC SP EDGE X F/O (S03NA5CS) - 2003 года выпуска`
-
№АртикулНазвание
-
27541925 NUT, NYLOKNUT, NYLOK
-
34010793 REGULATOR (MANUAL START)REGULATOR (MANUAL START)
-
34010794 REGULATOR, AC/DC (ELECTRIC START)REGULATOR, AC/DC (ELECTRIC START)
-
47555746 BURR, RIVETBURR, RIVET
-
64010193 HOUSING, CONNECTOR PACKARD #12186213HOUSING, CONNECTOR PACKARD #12186213
-
74010192 SOCKET, PACKARD #12047767SOCKET, PACKARD #12047767
-
84020092 TERMINAL, RINGTERMINAL, RING
-
92461116 HARNESS, MAIN EDGE DIAGHARNESS, MAIN EDGE DIAG
-
104020057 HOUSINGHOUSING
-
114020063 HOUSING, PACKHOUSING, PACK
-
125410611 KEY, IGNITION W/CAPKEY, IGNITION W/CAP
-
137547035 NUT, IGNITIONNUT, IGNITION
-
145432944 NUT, CHOKENUT, CHOKE
-
157515199 SCREWSCREW
-
177080946 CABLE CHOKE (INCL. 18, 14)CABLE CHOKE (INCL. 18, 14)
-
185432943 CHOKE, LEVER KIT (INCL. PIN)CHOKE, LEVER KIT (INCL. PIN)
-
197670088 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
-
202201614 IGNITION, KIT SWITCH ES FUELIGNITION, KIT SWITCH ES FUEL
-
225434134 CONSOLE, SRPCONSOLE, SRP
-
237512031 BOLT (MANUAL START)BOLT (MANUAL START)
-
237517263 SCREW, HEXAGON /SEMS (ELECTRIC START)SCREW, HEXAGON /SEMS (ELECTRIC START)
-
247512050 SCREW, W/WASHERSCREW, W/WASHER
