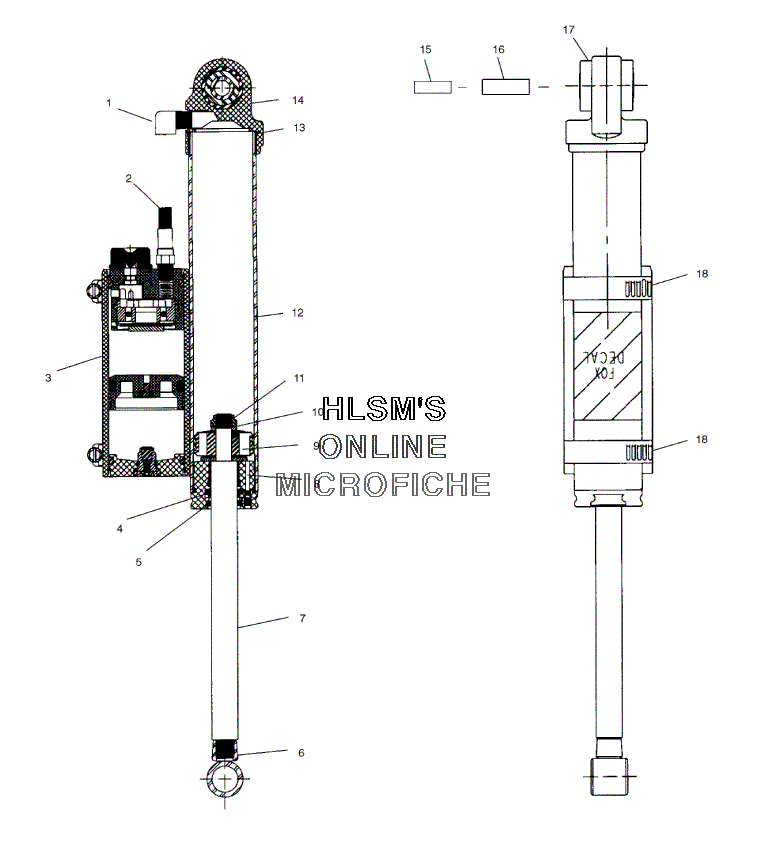

SUSPENSION - FOX SHOCK - REAR TRACK AND RESEVOIR для Polaris 500 XC SP EDGE X F/O (S03NA5CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1500157 FITTING, ELBOW (90 DEG.)
    FITTING, ELBOW (90 DEG.)
  • 2
    1500326 HOSE, ASSY 3.12 TLG
    HOSE, ASSY 3.12 TLG
  • 4
    1500256 U-CUP
    U-CUP
  • 5
    1500257 WIPER, U-CUP
    WIPER, U-CUP
  • 6
    1500302 EYELET
    EYELET
  • 7
    1500322 SHAFT
    SHAFT
  • 8
    1500328 BEARING, ASSY QUAD RING
    BEARING, ASSY QUAD RING
  • 9
    2200618 VALVE, PISTON KIT
    VALVE, PISTON KIT
  • 10
    1500074 BUMPER, RUBBER
    BUMPER, RUBBER
  • 11
    1500016 NUT, LOCK
    NUT, LOCK
  • 12
    1500319 BODY
    BODY
  • 13
    1500108 O-RING (.103W-1.549ID)
    O-RING (.103W-1.549ID)
  • 14
    1500244 BODY, CAP, ASSY.
    BODY, CAP, ASSY.
  • 15
    1500327 SLEEVE
    SLEEVE
  • 16
    1500311 SLEEVE
    SLEEVE
  • 17
    1500307 BUSHING
    BUSHING
  • 18
    1500330 CLAMP HOSE
    CLAMP HOSE
  • -
    7042196 SHOCK, TRACK REMOTERES FOX (REAR)
    SHOCK, TRACK REMOTERES FOX (REAR)
