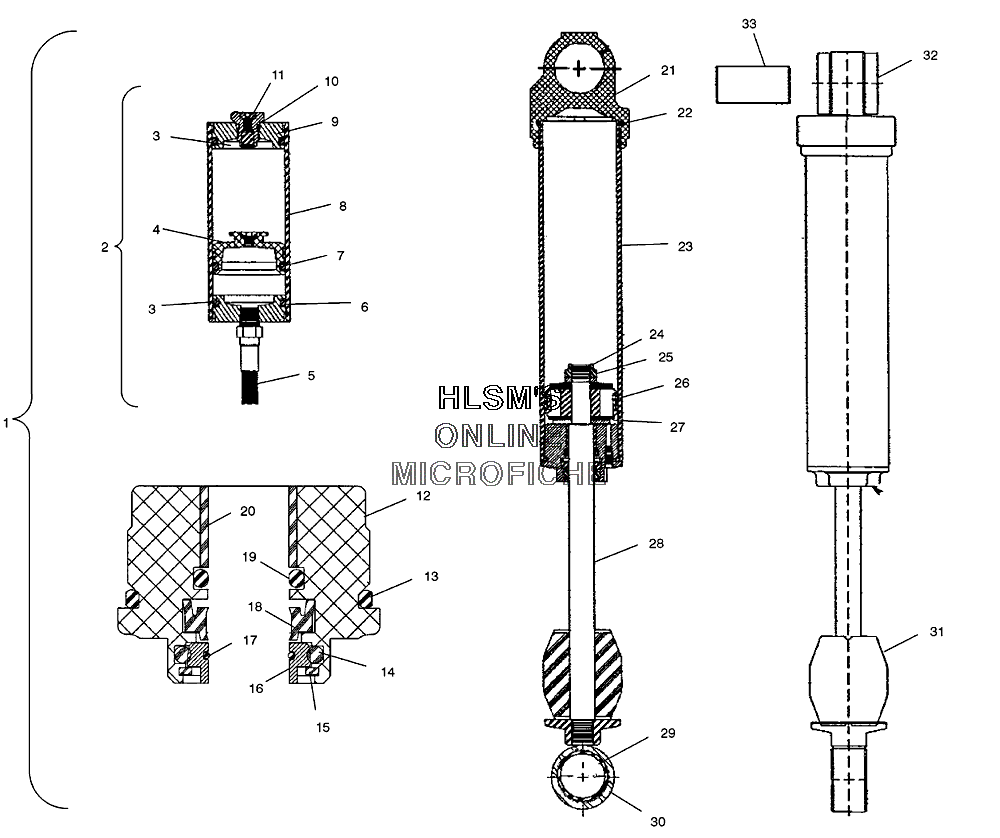

SHOCK (REAR TRACK) (M-10 ACE) для Polaris 500 XC SP EDGE M-10 F/O (S03NF5CS) - 2003 года выпуска`
-
№АртикулНазвание
-
17042149 SHOCK TRACK (REAR), RE24, M10 (INCL. ALL)SHOCK TRACK (REAR), RE24, M10 (INCL. ALL)
-
21500449 RESERVIOR ASSY, NON ADJUST, 1.459 (INCL. 3-11RESERVIOR ASSY, NON ADJUST, 1.459 (INCL. 3-11
-
31500450 SEAL, O-RINGSEAL, O-RING
-
41500187 PISTON-FLOATINGPISTON-FLOATING
-
51500560 HOSEHOSE
-
61500163 ENDCAP ASSY, RESERVOIRENDCAP ASSY, RESERVOIR
-
71500003 O-RING, ENDCAPO-RING, ENDCAP
-
81500451 BODYBODY
-
91500160 RESERVOIR, ENDCAP ASSYRESERVOIR, ENDCAP ASSY
-
101500023 O-RING (OUTER)O-RING (OUTER)
-
111500014 VALVE ASSY, AIRVALVE ASSY, AIR
-
121500545 (INCL. 13-20)(INCL. 13-20)
-
131500020 O-RINGO-RING
-
141500483 O-RINGO-RING
-
151500486 RING SNAP, INTERNALRING SNAP, INTERNAL
-
161500485 SCRAPER FIST (BRONZE)SCRAPER FIST (BRONZE)
-
171500484 O-RINGO-RING
-
181500266 U-CUP-4300 URETH (036-01-006)U-CUP-4300 URETH (036-01-006)
-
191500021 O-RING (INNER)O-RING (INNER)
-
201500488 BEARING (.5 IDX.5 TLG)BEARING (.5 IDX.5 TLG)
-
211500563 BODY CAP ASSYBODY CAP ASSY
-
221500108 O-RINGO-RING
-
231500561 BODYBODY
-
241500016 NUT, LOCKNUT, LOCK
-
251500015 PLATE, BACKUPPLATE, BACKUP
-
261500002 BEARING, PISTONBEARING, PISTON
-
271500017 PLATE (TOP OUTER)PLATE (TOP OUTER)
-
281500562 SHAFTSHAFT
-
291500444 BEARING-RBC 003-10-000BEARING-RBC 003-10-000
-
301500564 EYELETEYELET
-
315410855 BUMPER, JOUNCEBUMPER, JOUNCE
-
321500309 BUSHINGBUSHING
-
331500310 SLEEVESLEEVE
