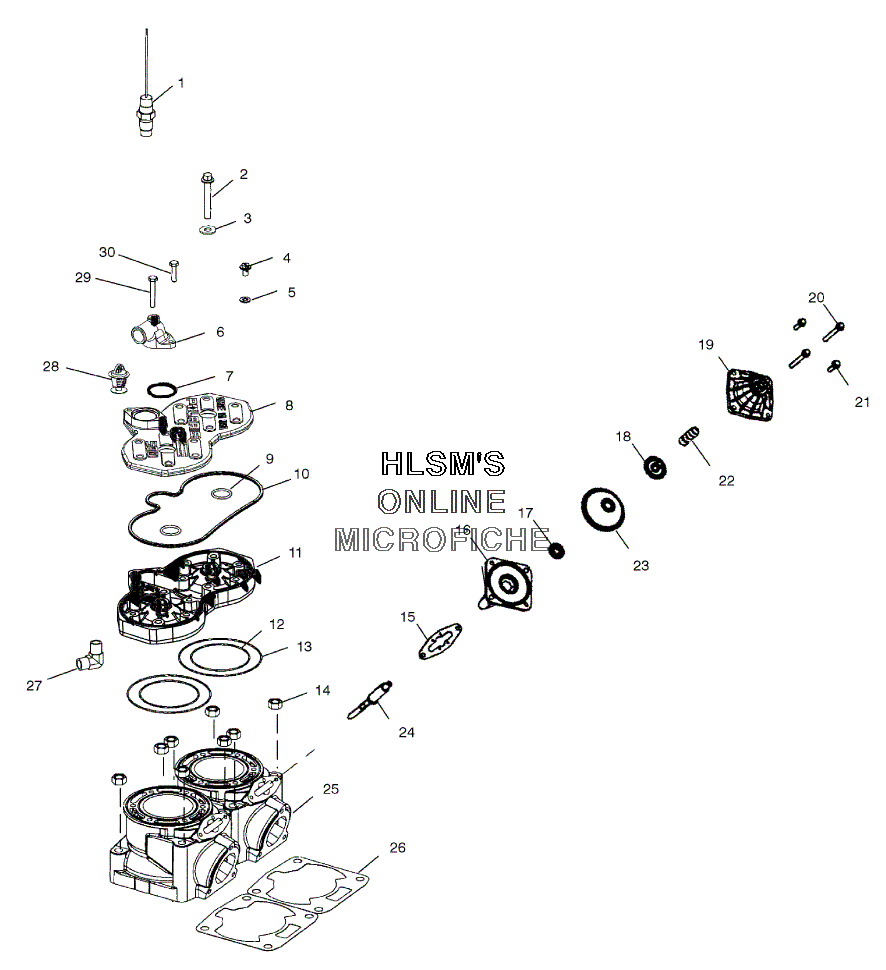

CYLINDER для Polaris 500 XC SP EDGE M-10 F/O (S03NF5CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    4010398 SENSOR-THERMISTER, ESX8477A
    SENSOR-THERMISTER, ESX8477A
  • 2
    7517281 SCREW
    SCREW
  • 3
    7556082 WASHER
    WASHER
  • 4
    7517679 SCREW, HEXAGON FLANGE
    SCREW, HEXAGON FLANGE
  • 5
    7555998 WASHER, FLAT
    WASHER, FLAT
  • 6
    5630992 COVER, THERMOSTAT M6 BLEED MACH
    COVER, THERMOSTAT M6 BLEED MACH
  • 7
    5411521 O-RING, LIPSEAL
    O-RING, LIPSEAL
  • 8
    5631198-329 COVER-HEAD 70.5 500 (BLACK) E-COAT
    COVER-HEAD 70.5 500 (BLACK) E-COAT
  • 9
    5411411 O-RING
    O-RING
  • 10
    5411465 SEAL
    SEAL
  • 11
    3021321 HEAD-CYL 70.5MM W/BYP 3/8W/OMA (EDGE, EDGE, X)
    HEAD-CYL 70.5MM W/BYP 3/8W/OMA (EDGE, EDGE, X)
  • 11
    3021319 CYLINDER HEAD (M-10M M-10 X)
    CYLINDER HEAD (M-10M M-10 X)
  • 12
    5411199 O-RING
    O-RING
  • 13
    5411359 O-RING
    O-RING
  • 14
    7547013 NUT
    NUT
  • 15
    5812350 GASKET BASE TO CYLINDER EXH VALVE
    GASKET BASE TO CYLINDER EXH VALVE
  • 16
    1202216 BASE EXHAUST VALVE DOM ASSY
    BASE EXHAUST VALVE DOM ASSY
  • 17
    5132950 WASHER BELLOWS, EXHAUST VALVE, DOM
    WASHER BELLOWS, EXHAUST VALVE, DOM
  • 18
    5631381 CAP/NUT, BELLOWS EXHAUST VALVE DOM
    CAP/NUT, BELLOWS EXHAUST VALVE DOM
  • 19
    5434599 HOUSING W/BUSHING ASSY
    HOUSING W/BUSHING ASSY
  • 20
    7516820 SCREW
    SCREW
  • 21
    7517932 SCREW, HEXAGON FLANGE
    SCREW, HEXAGON FLANGE
  • 22
    7041786-11 SPRING-COMP (PINK/YELLOW)
    SPRING-COMP (PINK/YELLOW)
  • 23
    5412147 BELLOWS, EXHAUST MOFIFIED.
    BELLOWS, EXHAUST MOFIFIED.
  • 24
    5133379 VALVE-GUILLOTINE 500, FORGED
    VALVE-GUILLOTINE 500, FORGED
  • 25
    3021334 CYLINDER-70.5
    CYLINDER-70.5
  • 26
    5811916 GASKET-CYLINDER BASE
    GASKET-CYLINDER BASE
  • 27
    7052221 FITTING (EDGE, EDGE, X)
    FITTING (EDGE, EDGE, X)
  • 27
    7052234 FITTING W/DRISEAL (M-10M M-10 X)
    FITTING W/DRISEAL (M-10M M-10 X)
  • 28
    7052267 THERMOSTAT-50C TBYS SS STEM (EDGE, EDGE, X)
    THERMOSTAT-50C TBYS SS STEM (EDGE, EDGE, X)
  • 28
    7052258 THERMOSTAT-120ШF W/O BYPASS (M-10M M-10 X)
    THERMOSTAT-120ШF W/O BYPASS (M-10M M-10 X)
  • 29
    7517950 SCREW, HEXAGON FLANGE
    SCREW, HEXAGON FLANGE
  • 30
    7516822 SCREW
    SCREW
