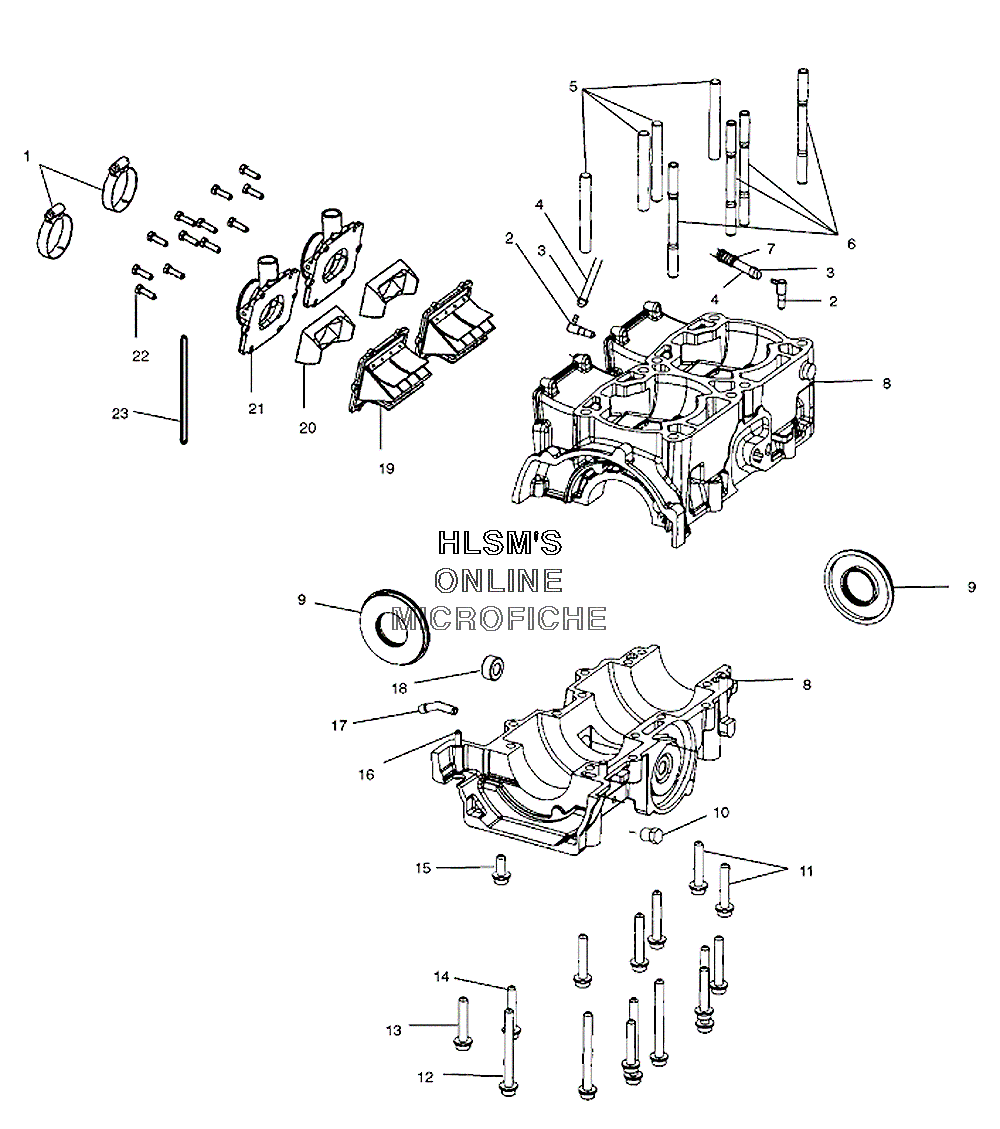

CRANKCASE для Polaris 500 XC SP EDGE M-10 F/O (S03NE5CS) - 2003 года выпуска`
-
№АртикулНазвание
-
17080681 CLAMP, HOSECLAMP, HOSE
-
27051020 VALVE, CHECK (90 DEG)VALVE, CHECK (90 DEG)
-
37080603 CLAMPCLAMP
-
48450061-600 LINE, FUELLINE, FUEL
-
55132196 STUD, CYLINDER 81MMSTUD, CYLINDER 81MM
-
65132197 STUD, CYLINDER 118MMSTUD, CYLINDER 118MM
-
78360056-25 TUBING-CONVOLUTED, 25CMTUBING-CONVOLUTED, 25CM
-
82202312 CRANKCASE KIT (1202627) (INCL. 5, 6, 10-16)CRANKCASE KIT (1202627) (INCL. 5, 6, 10-16)
-
95411394 SEAL, FLANGEDSEAL, FLANGED
-
107051529 PLUGPLUG
-
117517785 BOLTBOLT
-
127517784 BOLTBOLT
-
137516825 SCREWSCREW
-
147517786 BOLTBOLT
-
157517577 SCREWSCREW
-
167663001 PIN, DOWELPIN, DOWEL
-
177052322 HOSEHOSE
-
185010390 SPACERSPACER
-
191201825 VALVE, REED ASSYVALVE, REED ASSY
-
205433151 STUFFER REED BLOCK, NOKSTUFFER REED BLOCK, NOK
-
211253423 ADAPTER CARBURETORADAPTER CARBURETOR
-
227516822 SCREWSCREW
-
237080654 RETAINER, SS.RETAINER, SS.
