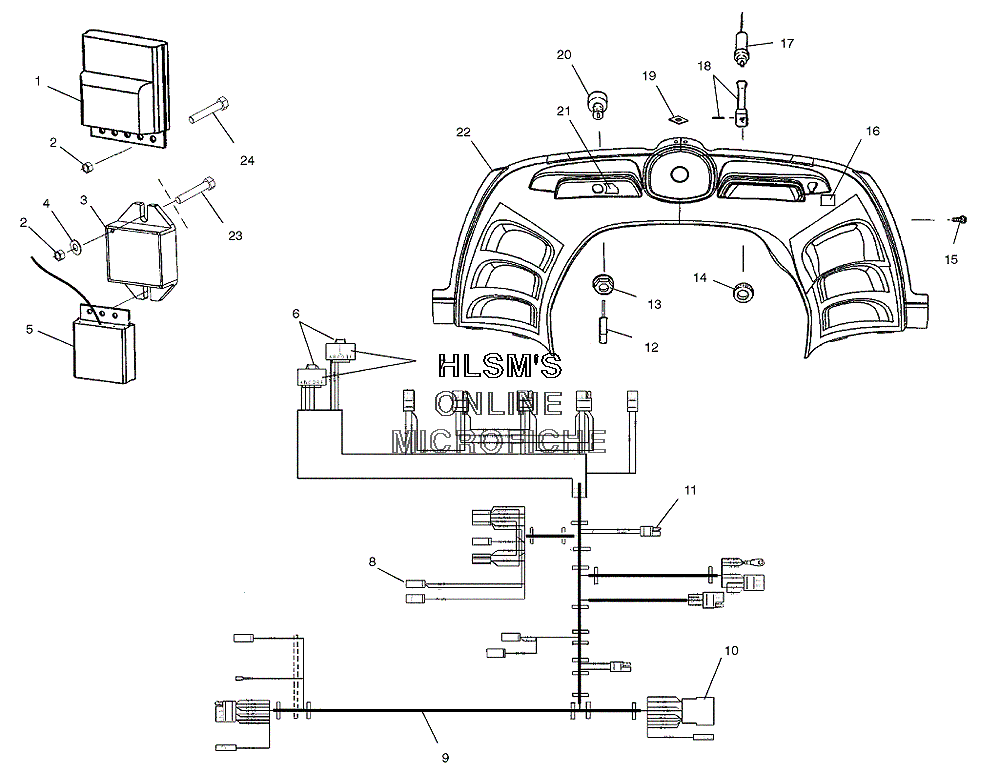

CONSOLE для Polaris 500 XC SP EDGE M-10 F/O (S03NE5CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    4010597 CONTROLLER-M-10 ACE, ELECTRIC
    CONTROLLER-M-10 ACE, ELECTRIC
  • 2
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 3
    4010793 REGULATOR-AC, 14.3V (MANUAL START)
    REGULATOR-AC, 14.3V (MANUAL START)
  • 3
    4010794 REGULATOR-AC/DC 14.3V (ELECTRIC START)
    REGULATOR-AC/DC 14.3V (ELECTRIC START)
  • 4
    7555746 WASHER
    WASHER
  • 5
    4010730 REGULATOR-RCTFR, 1/2WAVE, W/CONN (M-10 ACE)
    REGULATOR-RCTFR, 1/2WAVE, W/CONN (M-10 ACE)
  • 6
    4010193 HOUSING-CONNECTOR, PAC#12186213
    HOUSING-CONNECTOR, PAC#12186213
  • 7
    4010192 SOCKET-PACKARD#12047767
    SOCKET-PACKARD#12047767
  • 8
    4020092 TERMINAL, RING
    TERMINAL, RING
  • 9
    2461116 HARNESS MAIN, EDGE, DIAG
    HARNESS MAIN, EDGE, DIAG
  • 9
    2461120 HARNESS MAIN, TPS, E/R, SHK, DIAG (M-10 ACE)
    HARNESS MAIN, TPS, E/R, SHK, DIAG (M-10 ACE)
  • 10
    4020057 HOUSING
    HOUSING
  • 11
    4020063 HOUSING, PACK
    HOUSING, PACK
  • 12
    5410611 KEY
    KEY
  • 13
    7547035 NUT, IGNITION
    NUT, IGNITION
  • 14
    5432944 NUT, CHOKE
    NUT, CHOKE
  • 15
    7515199 SCREW
    SCREW
  • 17
    7080946 CABLE, CHOKE (INCL. 18,14)
    CABLE, CHOKE (INCL. 18,14)
  • 18
    5432943 CHOKE LEVER REPAIR KIT (INCL. PIN)
    CHOKE LEVER REPAIR KIT (INCL. PIN)
  • 19
    7670088 CLIP, PLASTIC DART, NYLON
    CLIP, PLASTIC DART, NYLON
  • 20
    2201614 IGNITION SWITCH KIT, ES, FUEL
    IGNITION SWITCH KIT, ES, FUEL
  • 22
    5434134 CONSOLE
    CONSOLE
  • 23
    7512031 SCREW (MANUAL START)
    SCREW (MANUAL START)
  • 23
    7517263 SCREW, HEXAGON/SEMS (ELECTRIC START)
    SCREW, HEXAGON/SEMS (ELECTRIC START)
  • 24
    7512050 SCREW, W/WASHER
    SCREW, W/WASHER
