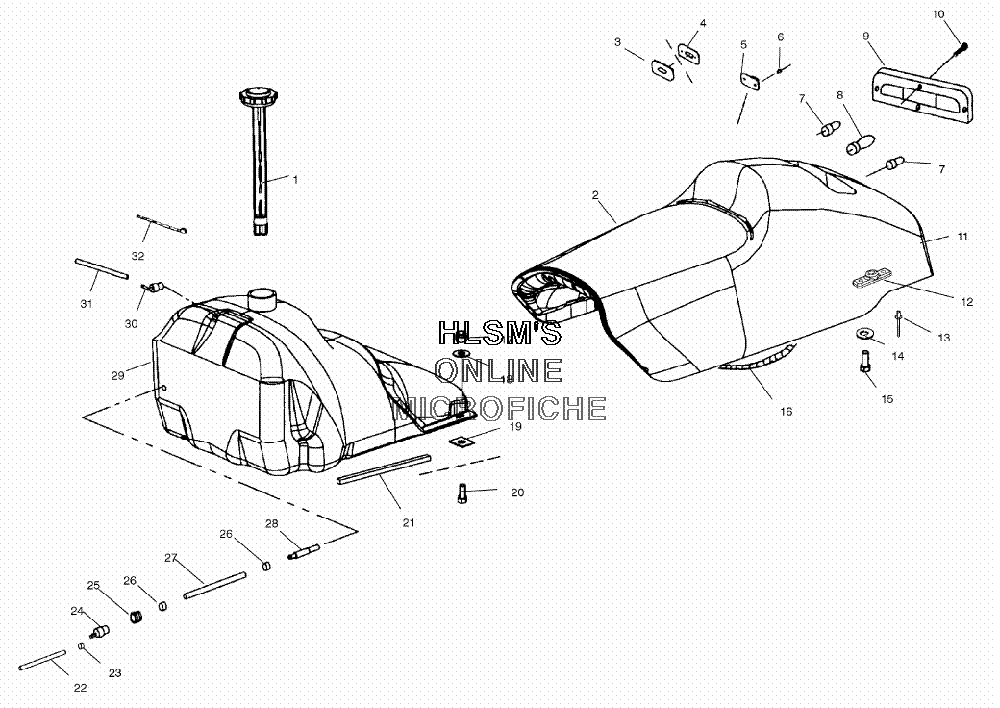

SEAT W/ GAS TANK ASSEMBLY для Polaris 340 EDGE (S03NB3AS) - 2003 года выпуска`
-
№АртикулНазвание
-
12520323 CAP, FUEL 12 GAL W/GAUGECAP, FUEL 12 GAL W/GAUGE
-
22683011 SEAT, ASSY EDGE (STANDARD) (BLACK/RED) (INCL. 2, 11, 16)SEAT, ASSY EDGE (STANDARD) (BLACK/RED) (INCL. 2, 11, 16)
-
22683012 SEAT COVER, ASSY EDGE (STANDARD) (BLACK/RED)SEAT COVER, ASSY EDGE (STANDARD) (BLACK/RED)
-
37080550 GROMMET, RELATCH (1") (BOTTOM)GROMMET, RELATCH (1") (BOTTOM)
-
47080549 GROMMET, RELATCH (1") (TOP)GROMMET, RELATCH (1") (TOP)
-
57080548 TWISTLOCK, RELATCH W/HOLE (1")TWISTLOCK, RELATCH W/HOLE (1")
-
67621337 RIVETRIVET
-
74030024 BULB, TAILLIGHTBULB, TAILLIGHT
-
84030045 BULB, BRAKELIGHTBULB, BRAKELIGHT
-
95430423 LENS, TAILLIGHTLENS, TAILLIGHT
-
107511840 SCREWSCREW
-
115433341 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
125631194 NUT, SEATNUT, SEAT
-
137621319 RIVETRIVET
-
147558301 WASHER, FLATWASHER, FLAT
-
157517219 SCREWSCREW
-
162460399 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
-
177542122 NUT, NYLOKNUT, NYLOK
-
187555960 WASHER, FLATWASHER, FLAT
-
197670021 SPEED NUTSPEED NUT
-
207512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
215810947 SEAL, FOAMSEAL, FOAM
-
218360033 TAPE, FOAMTAPE, FOAM
-
228350018-600 TUBING, ETHER ERETHANE (160 CM)TUBING, ETHER ERETHANE (160 CM)
-
237080307 CLAMP, HOSECLAMP, HOSE
-
247052321 FITTING, 1/4 STRAIGHT DEXFITTING, 1/4 STRAIGHT DEX
-
257052028 GROMMET, TANK FITTINGGROMMET, TANK FITTING
-
267080402 RING, COMPRESRING, COMPRES
-
278350019-600 FUEL LINE, ESTERFUEL LINE, ESTER
-
287052301 PICK, UP-FUEL W/FILTER 105 MICRONPICK, UP-FUEL W/FILTER 105 MICRON
-
292520276 FUEL, TANK EDGE ASSY (INCL. 28, 30)FUEL, TANK EDGE ASSY (INCL. 28, 30)
-
307052095 FITTING (90 DEG, 1/8)FITTING (90 DEG, 1/8)
-
318450061-600 FUELLINE (3MMX7MM)FUELLINE (3MMX7MM)
-
327080804 CABLE TIE, RELEASABLE (5 1/2")CABLE TIE, RELEASABLE (5 1/2")
