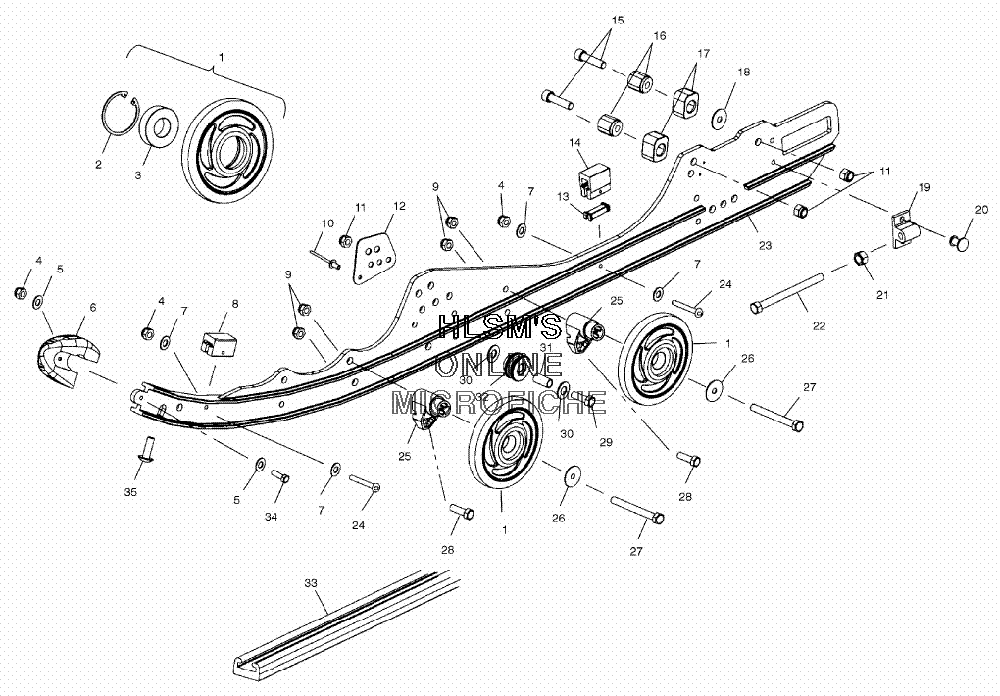

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris 340 EDGE (S03NB3AS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1590275-293 WHEEL, ADM (INDY RED) (INCL. 2, 3)
    WHEEL, ADM (INDY RED) (INCL. 2, 3)
  • 2
    7718407 RING, RETAINING (1 PER WHEEL)
    RING, RETAINING (1 PER WHEEL)
  • 3
    3514303 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 4
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 5
    7555792 WASHER
    WASHER
  • 6
    5434374 CAP, RAIL TIP
    CAP, RAIL TIP
  • 7
    7555783 WASHER, FLAT
    WASHER, FLAT
  • 8
    5521499 BUMPER, JOUNCE (FRONT)
    BUMPER, JOUNCE (FRONT)
  • 9
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 10
    7661845 RIVET
    RIVET
  • 11
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 12
    5244677 BRACKET, RAIL REINF
    BRACKET, RAIL REINF
  • 13
    5432946 LINER, BUMPER
    LINER, BUMPER
  • 14
    5521498 BUMPER, JOUNCE (REAR)
    BUMPER, JOUNCE (REAR)
  • 15
    7515537 BOLT
    BOLT
  • 16
    5131113 MOUNT, BUMPER
    MOUNT, BUMPER
  • 17
    5410925 BUMPER, PIVOT ARM
    BUMPER, PIVOT ARM
  • 18
    5244371 SPACER
    SPACER
  • 19
    5132444 BLOCK, IDLER BOLT ADJUST
    BLOCK, IDLER BOLT ADJUST
  • 20
    7621501 RIVET
    RIVET
  • 21
    7547156 NUT (7/16-14)
    NUT (7/16-14)
  • 22
    7517773 SCREW
    SCREW
  • 23
    1541755 RAIL, ASSY (121) (LEFT) (INCL. 6, 8, 14, 17, 19)
    RAIL, ASSY (121) (LEFT) (INCL. 6, 8, 14, 17, 19)
  • 23
    1541756 RAIL, ASSY (121) (RIGHT) (INCL. 6, 8, 14, 17, 19)
    RAIL, ASSY (121) (RIGHT) (INCL. 6, 8, 14, 17, 19)
  • 24
    7510504 SCREW
    SCREW
  • 25
    5631065 BLOCK, WHEEL MOUNT LWT
    BLOCK, WHEEL MOUNT LWT
  • 26
    7556179 WASHER, SPRING CON
    WASHER, SPRING CON
  • 27
    7515346 SCREW
    SCREW
  • 28
    7515317 BOLT
    BOLT
  • 29
    7515438 BOLT
    BOLT
  • 30
    7555983 WASHER, FLAT
    WASHER, FLAT
  • 31
    5333948 SPACER
    SPACER
  • 32
    5433959 ROLLER, SPRING SQUARE
    ROLLER, SPRING SQUARE
  • 33
    5521571 HI-FAX, XL SERVICE BASIC
    HI-FAX, XL SERVICE BASIC
  • 34
    7511975 SCREW
    SCREW
  • 35
    7515199 SCREW
    SCREW
