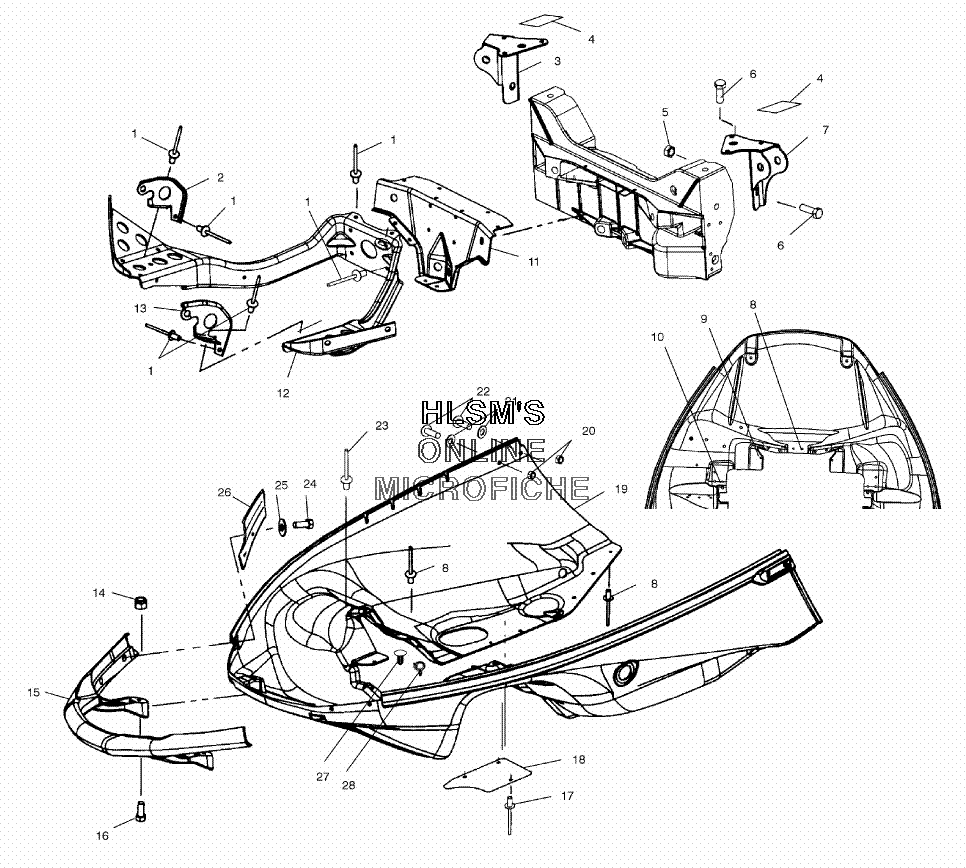

NOSEPAN ASSEMBLY #2 для Polaris 340 EDGE CLASSIC (S03ND3AS) - 2003 года выпуска`
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
25243992-067 HINGE, PIVOT (LOWER/RIGHT/BLACK)HINGE, PIVOT (LOWER/RIGHT/BLACK)
-
35243978 MOUNT, SHOCK HEAD (UPPER/RIGHT/BLACK)MOUNT, SHOCK HEAD (UPPER/RIGHT/BLACK)
-
45810947 SEAL, FOAMSEAL, FOAM
-
57547180 NUT, FLANGED 16 NYLON Z (3/8)NUT, FLANGED 16 NYLON Z (3/8)
-
67517935 SCREWSCREW
-
75243977 MOUNT, SHOCK HD (LEFT/BLACK/UPPER)MOUNT, SHOCK HD (LEFT/BLACK/UPPER)
-
87621467 RIVET, BLINDRIVET, BLIND
-
97621431 RIVETRIVET
-
107661136 RIVETRIVET
-
115244049-067 BRACKET, RADIUS ROD SUPPORT (BLACK)BRACKET, RADIUS ROD SUPPORT (BLACK)
-
125244050 BRACE, PAN (LOWER)BRACE, PAN (LOWER)
-
135243991-067 HINGE, PIVOT (LEFT/BLACK/LOWER)HINGE, PIVOT (LEFT/BLACK/LOWER)
-
147542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
155433518-070 BUMPER, ASSY (FRONT/BLACK)BUMPER, ASSY (FRONT/BLACK)
-
167512163 BOLTBOLT
-
177621472 RIVETRIVET
-
185245853 SHIELD, EXHAUST HEAT EXTENDEDSHIELD, EXHAUST HEAT EXTENDED
-
195434343-070 NOSEPAN, GAS ASSIST (BLACK)NOSEPAN, GAS ASSIST (BLACK)
-
207542122 NUT, NYLOKNUT, NYLOK
-
217555827 WASHERWASHER
-
227515166 SCREWSCREW
-
237621431 RIVETRIVET
-
247517312 SCREWSCREW
-
257552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
265244888 GUIDE, HOOD (LEFT)GUIDE, HOOD (LEFT)
-
265244889 GUIDE, HOOD (RIGHT)GUIDE, HOOD (RIGHT)
-
277670131 PLUG, NYLONPLUG, NYLON
-
284020139 CLIP, PLASTICCLIP, PLASTIC
