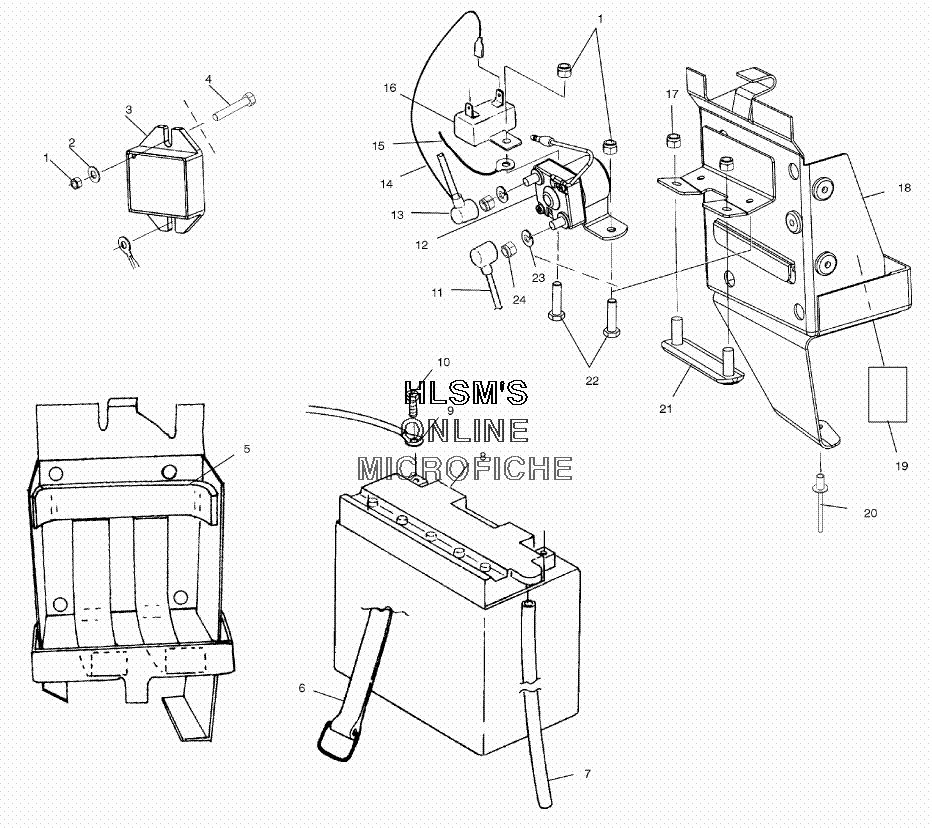

BATTERY BOX для Polaris 340 EDGE CLASSIC (S03ND3AS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 2
    7555746 BURR, RIVET
    BURR, RIVET
  • 3
    4010794 REGULATOR, AC/DC (14.3V)
    REGULATOR, AC/DC (14.3V)
  • 4
    7517263 SCREW, HX/SEMS
    SCREW, HX/SEMS
  • 5
    5810290 PAD, BATTERY
    PAD, BATTERY
  • 6
    2450020 STRAP ASSY BATTERY HOLD
    STRAP ASSY BATTERY HOLD
  • 7
    5432077 TUBE, BATTERY VENT
    TUBE, BATTERY VENT
  • 8
    4140006 BATTERY
    BATTERY
  • 9
    4010114 CABLE, BATTERY (BLACK) (11")
    CABLE, BATTERY (BLACK) (11")
  • 10
    2200361 BATTERY BOLT, KIT (SHORT)
    BATTERY BOLT, KIT (SHORT)
  • 11
    4010107 CABLE, SOLENOID/STARTER (BLACK) (16.5")
    CABLE, SOLENOID/STARTER (BLACK) (16.5")
  • 13
    5410346 INSULATED CABLE SOLENOID
    INSULATED CABLE SOLENOID
  • 14
    2460393 CABLE ASSY, SOLENOID
    CABLE ASSY, SOLENOID
  • 15
    4010108 WIRE, JUMPER SOLENOID/BATTERY (8.5")
    WIRE, JUMPER SOLENOID/BATTERY (8.5")
  • 16
    2434008 CIRCUIT BREAKER
    CIRCUIT BREAKER
  • 17
    7542122 NUT, NYLOK
    NUT, NYLOK
  • 18
    1013679-067 WELD, BATTERY BOX EDGE (BLACK)
    WELD, BATTERY BOX EDGE (BLACK)
  • 19
    5810129 FOIL TAPE (4X6)
    FOIL TAPE (4X6)
  • 20
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 21
    1013385 WELD, STUD PLATE BATTERY BOX
    WELD, STUD PLATE BATTERY BOX
  • 22
    7511930 SCREW
    SCREW
