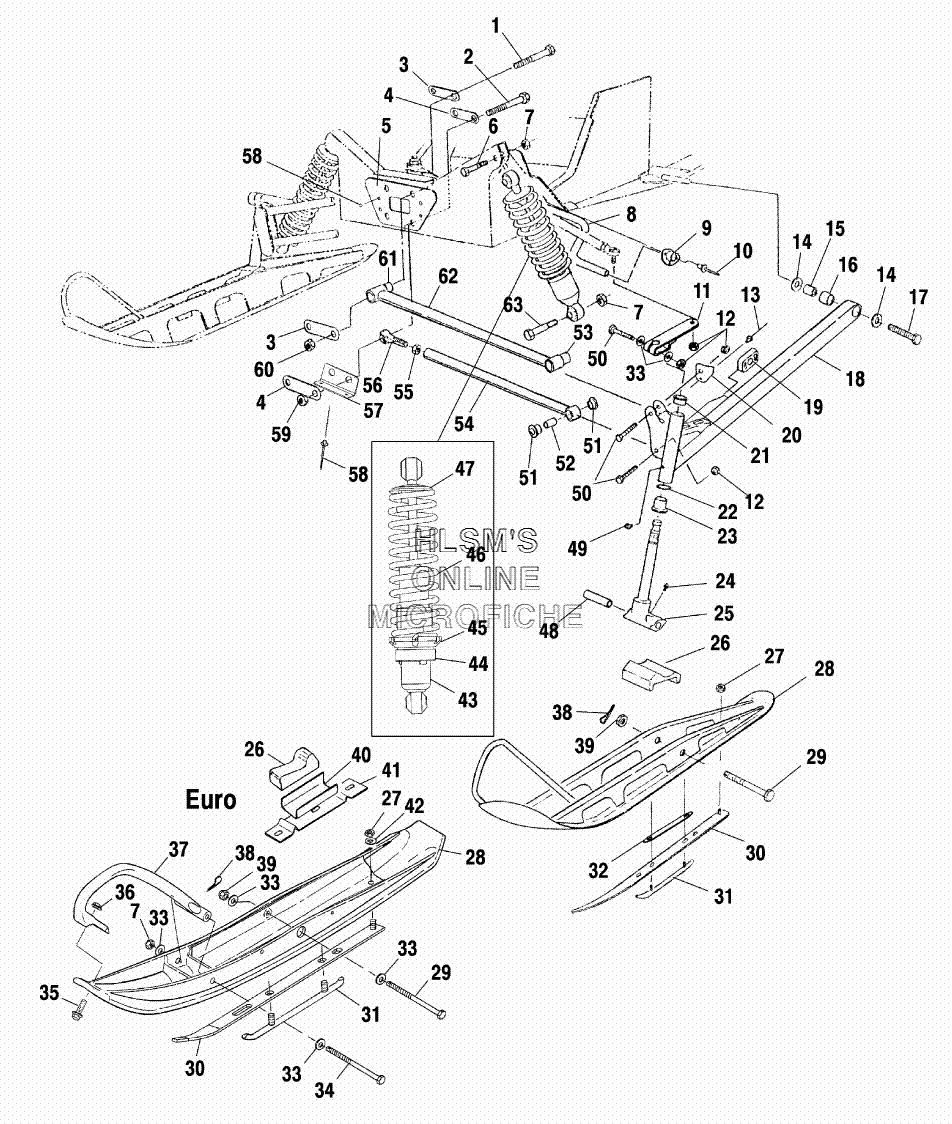

SUSPENSION - FRONT W/ SKI для Polaris SPORT TOURING (S02SU5BS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7512582 BOLT
    BOLT
  • 2
    7512684 BOLT
    BOLT
  • 3
    5211344 STRAP, SPACER (TOP)
    STRAP, SPACER (TOP)
  • 4
    5211345 STRAP, SPACER (BOTTOM)
    STRAP, SPACER (BOTTOM)
  • 5
    5211589-067 BRACE (HD/STRG, BLACK)
    BRACE (HD/STRG, BLACK)
  • 6
    7515415 BOLT
    BOLT
  • 7
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 8
    5224743-067 BAR, SWAY (9/16, X, 10, BLACK)
    BAR, SWAY (9/16, X, 10, BLACK)
  • 9
    5432412 BUSHING, SWAY BAR
    BUSHING, SWAY BAR
  • 10
    7621477 RIVET
    RIVET
  • 11
    5241560-067 ARM, STRG (BLACK)
    ARM, STRG (BLACK)
  • 12
    7542403 NUT LOCK
    NUT LOCK
  • 13
    7661130 RIVET (3/16, .214, .420)
    RIVET (3/16, .214, .420)
  • 14
    7555721 WASHER
    WASHER
  • 15
    5010310 TUBE, BUSHING
    TUBE, BUSHING
  • 16
    5410872 PIVOT, TRLG. ARM (RUBBER)
    PIVOT, TRLG. ARM (RUBBER)
  • 17
    7512557 BOLT
    BOLT
  • 18
    1822506-067 TRAILING ARM ASSY. (LEFT BLACK INCL. 15, 16)
    TRAILING ARM ASSY. (LEFT BLACK INCL. 15, 16)
  • 18
    1822507-067 TRAILING ARM ASSY. (RIGHT BLACK INCL. 15, 16)
    TRAILING ARM ASSY. (RIGHT BLACK INCL. 15, 16)
  • 19
    5432674 SLIDE, SWAYBAR (9/16)
    SLIDE, SWAYBAR (9/16)
  • 20
    5241569-067 STOP (LEFT, STRG, BLACK)
    STOP (LEFT, STRG, BLACK)
  • 20
    5241570-067 STOP (RIGHT, STRG, BLACK)
    STOP (RIGHT, STRG, BLACK)
  • 21
    3573909 BUSHING, FLANGE
    BUSHING, FLANGE
  • 22
    7556509 WASHER SPECIAL
    WASHER SPECIAL
  • 23
    3574208 BUSHING, SPINDLE (HSG)
    BUSHING, SPINDLE (HSG)
  • 24
    7080306 FITTING, LUBE.(W/BALL CK.)
    FITTING, LUBE.(W/BALL CK.)
  • 25
    6230102-067 SHAFT, SPINDLE (TRLG, BLACK)
    SHAFT, SPINDLE (TRLG, BLACK)
  • 26
    5411083 STOP, RUBBER
    STOP, RUBBER
  • 26
    5412018 STOP, SKI,RUBBER (EURO)
    STOP, SKI,RUBBER (EURO)
  • 27
    7542324 NUT
    NUT
  • 28
    1820430-067 SKI WELD
    SKI WELD
  • 28
    1820821-070 COMP. SKI BLANK ASSY. (W/RK SDL, BLACK EURO)
    COMP. SKI BLANK ASSY. (W/RK SDL, BLACK EURO)
  • 29
    7515462 BOLT
    BOLT
  • 29
    7512596 SCREW (EURO)
    SCREW (EURO)
  • 30
    1011829-067 PLATE, SKAG
    PLATE, SKAG
  • 30
    1012748-067 PLATE, SKAG (1.375 STUD, BLACK EURO)
    PLATE, SKAG (1.375 STUD, BLACK EURO)
  • 31
    1820318-067 SKAG (BLACK)
    SKAG (BLACK)
  • 31
    2872018 SKAG KIT (EZ, 3'', COMP. SKI EURO)
    SKAG KIT (EZ, 3'', COMP. SKI EURO)
  • 31
    2872019 SKAG KIT (E/Z 3'', CO W/WR/ST INCL. 27, 30, 42) (EURO)
    SKAG KIT (E/Z 3'', CO W/WR/ST INCL. 27, 30, 42) (EURO)
  • 32
    5245145-067 SHIM, SKAG PLATE (BLACK)
    SHIM, SKAG PLATE (BLACK)
  • 33
    7555832 WASHER (QTY. 8 FOR EURO)
    WASHER (QTY. 8 FOR EURO)
  • 34
    7515514 BOLT (EURO)
    BOLT (EURO)
  • 35
    7515307 BOLT (EURO)
    BOLT (EURO)
  • 36
    7542321 NUT LOCK (EURO)
    NUT LOCK (EURO)
  • 37
    5434165-070 TOE, PLASTIC SKI (BLACK EURO)
    TOE, PLASTIC SKI (BLACK EURO)
  • 38
    7661205 PIN, COTTER
    PIN, COTTER
  • 39
    7542438 NUT, CASTLE
    NUT, CASTLE
  • 40
    5243824 RETAINER, SKI RUBBER (EURO)
    RETAINER, SKI RUBBER (EURO)
  • 41
    5241912-067 SUPPORT, SKI, RUBBER (BLACK EURO)
    SUPPORT, SKI, RUBBER (BLACK EURO)
  • 42
    7558302 WASHER, WROUGHT (EURO)
    WASHER, WROUGHT (EURO)
  • 43
    7041496 SHOCK, GAS (IFS, SELECT)
    SHOCK, GAS (IFS, SELECT)
  • 44
    1500063 RETAINER, SPRING BODY THREADED
    RETAINER, SPRING BODY THREADED
  • 45
    5431734 RING, SPRING PRELOAD ADJ.
    RING, SPRING PRELOAD ADJ.
  • 46
    7041551-067 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 47
    5020618 RETAINER, SPRING, SLOTTED
    RETAINER, SPRING, SLOTTED
  • 48
    5010158 BUSHING, PIVOT
    BUSHING, PIVOT
  • 49
    7080433 ZERK, FITTING, THREADED
    ZERK, FITTING, THREADED
  • 50
    7517583 SCREW (3/8, 24X2 HX/CP GR5, Y, SP)
    SCREW (3/8, 24X2 HX/CP GR5, Y, SP)
  • 51
    5431486 BUSH, RAD.ROD PIVOT (OUT.)
    BUSH, RAD.ROD PIVOT (OUT.)
  • 52
    5010127 BUSHING, RADIUS ROD
    BUSHING, RADIUS ROD
  • 53
    5411099 BUSHING, RAD. ROD PIVOT (3/8)
    BUSHING, RAD. ROD PIVOT (3/8)
  • 54
    1822410-067 ROD, RAD (LOWER, BLACK)
    ROD, RAD (LOWER, BLACK)
  • 55
    7542711 NUT, JAM
    NUT, JAM
  • 56
    7061052 ROD END, RADIUS (RIGHT LOWER)
    ROD END, RADIUS (RIGHT LOWER)
  • 57
    5242578 BRACKET, RAD.ROD (BOTTOM)
    BRACKET, RAD.ROD (BOTTOM)
  • 58
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 59
    7542703 NUT FLEX
    NUT FLEX
  • 60
    7542503 NUT, LOCK
    NUT, LOCK
  • 61
    5411095 BUSHING, PIVOT (7/16)
    BUSHING, PIVOT (7/16)
  • 62
    1822435 ROD, RAD. (UPPER, FIXED INCL. 53, 61)
    ROD, RAD. (UPPER, FIXED INCL. 53, 61)
  • 63
    7515433 BOLT
    BOLT
