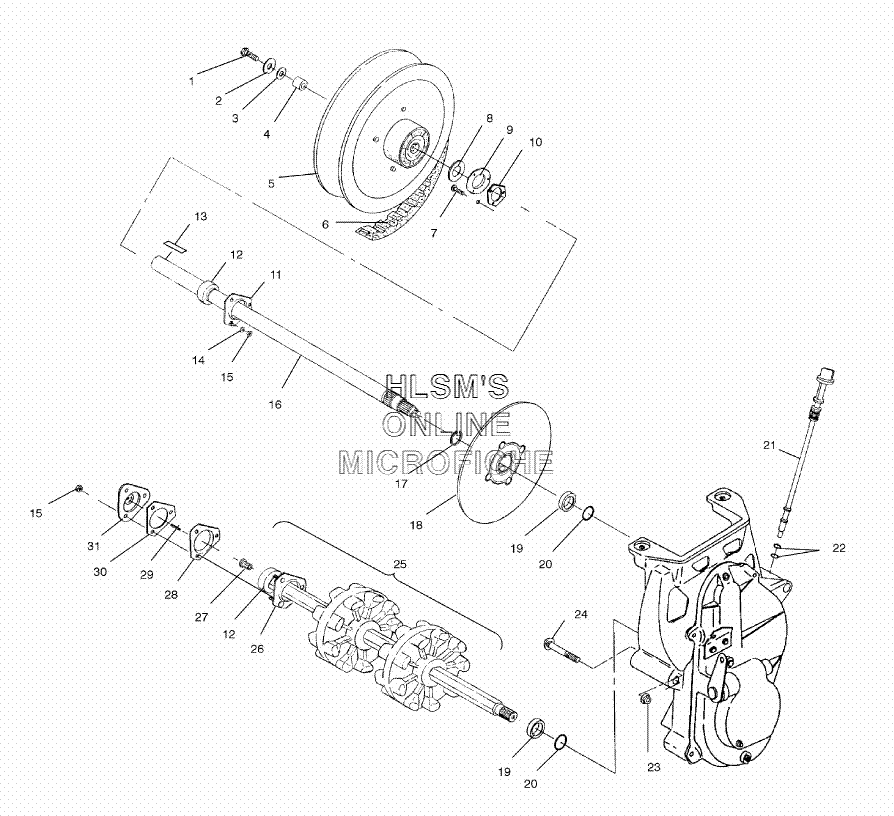

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris SPORT TOURING (S02SU5BS) - 2002 года выпуска
-
№АртикулНазвание
-
17517820 BOLT (5/16, 18X1 3/4 HX/LK, GR5)BOLT (5/16, 18X1 3/4 HX/LK, GR5)
-
27555701 WASHER FLATWASHER FLAT
-
37555734 WASHERWASHER
-
45020291 SPACERSPACER
-
51321925 DRIVEN CLUTCH ASSY. (SEE DRIVEN CLUTCH REF. 16)DRIVEN CLUTCH ASSY. (SEE DRIVEN CLUTCH REF. 16)
-
63211070 BELT, DRIVE (28 DEG.)BELT, DRIVE (28 DEG.)
-
77512377 BOLTBOLT
-
87556509 WASHER SPECIALWASHER SPECIAL
-
95241359 FLANGE (RD, RELUBE W/ZERK)FLANGE (RD, RELUBE W/ZERK)
-
105811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
115222751 FLANGETTEFLANGETTE
-
123514525 BEARINGBEARING
-
137721128 KEY (1/4X3/16X2.75)KEY (1/4X3/16X2.75)
-
147558402 WASHER STEELWASHER STEEL
-
157542324 NUTNUT
-
161332207 JACKSHAFT ASSY. (15 SPL INCL. 12, 17)JACKSHAFT ASSY. (15 SPL INCL. 12, 17)
-
177710422 RING, RETAININGRING, RETAINING
-
181910403 BRAKE DISC (SNOW, 6385 CR) ASSY.BRAKE DISC (SNOW, 6385 CR) ASSY.
-
195020588 SLEEVE, SEALSLEEVE, SEAL
-
205410613 O-RINGO-RING
-
211332143 DIPSTICK ASSY.DIPSTICK ASSY.
-
225410675 O-RINGO-RING
-
237542423 NUTNUT
-
247515428 BOLTBOLT
-
251590283 DRIVESHAFT ASSY. (2 DR, W/BRG, XHS INCL. 26, 27)DRIVESHAFT ASSY. (2 DR, W/BRG, XHS INCL. 26, 27)
-
261012945 FLANGETTE ASSY. W/SCREWS)FLANGETTE ASSY. W/SCREWS)
-
273280019 BUSHING METAL SPEEDOBUSHING METAL SPEEDO
-
285243529 FLANGETTE, OFFSET W/HOLEFLANGETTE, OFFSET W/HOLE
-
293280017 SQ. KEY SPEEDOMETERSQ. KEY SPEEDOMETER
-
305830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
313280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
