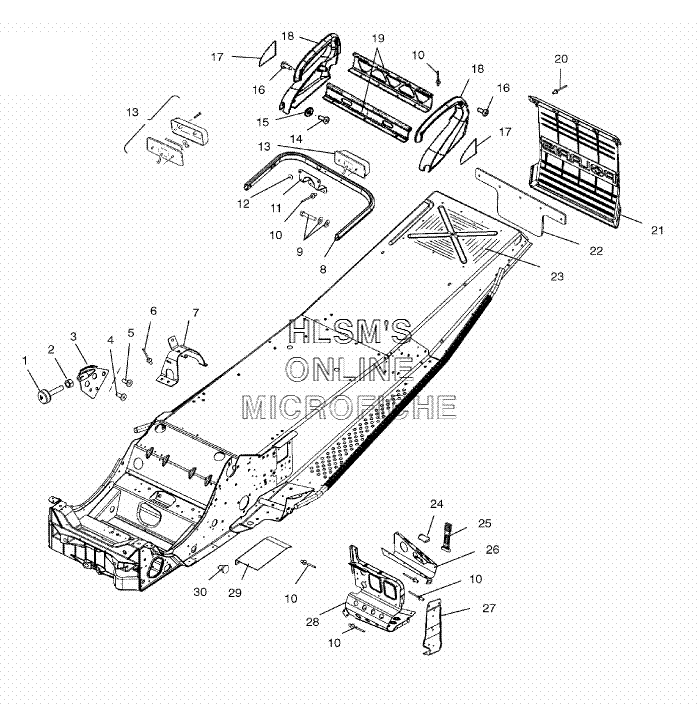

FRAME - CHASSIS для Polaris 800 RMK F/O 151 BUILT BEFORE 3/1/01 (S02NL8CSB) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1A
    1013581-309 CHASSIS ASSY.
    CHASSIS ASSY.
  • 1
    3110078 STOP, TORQUE
    STOP, TORQUE
  • 2
    7542404 NUT
    NUT
  • 3
    1013377 WELD, TORQUE STOP
    WELD, TORQUE STOP
  • 4
    7517854 SCREW
    SCREW
  • 5
    7517632 SCREW
    SCREW
  • 6
    7621432 RIVET
    RIVET
  • 7
    5245003 BRACKET, JACKSHAFT SHIELD
    BRACKET, JACKSHAFT SHIELD
  • 8
    2632165-309 BUMPER (REAR)
    BUMPER (REAR)
  • 9
    7512113 SCREW
    SCREW
  • 9
    7552801 LOCK, WASHER
    LOCK, WASHER
  • 9
    7558301 WASHER
    WASHER
  • 10
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 11
    5245419-067 BRACKET, TAILLIGHT (BLACK)
    BRACKET, TAILLIGHT (BLACK)
  • 12
    7670093 CLIP, RETAINER
    CLIP, RETAINER
  • 13
    2410267 TAILLIGHT ASSY.
    TAILLIGHT ASSY.
  • 13
    7512088 SCREW, TAILLIGHT
    SCREW, TAILLIGHT
  • 13
    4032085 LENS, STOP AND TAILLIGHT
    LENS, STOP AND TAILLIGHT
  • 13
    4032086 GASKET, TAILLIGHT AND STOPLIGHT
    GASKET, TAILLIGHT AND STOPLIGHT
  • 13
    4032087 BACKING, STOPLIGHT AND TAILLIGHT
    BACKING, STOPLIGHT AND TAILLIGHT
  • 13
    4030043 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 14
    7512094 SCREW
    SCREW
  • 15
    7558301 WASHER
    WASHER
  • 16
    7517686 SCREW
    SCREW
  • 17
    7079667 DECAL, REFLECTOR (RED/LEFT)
    DECAL, REFLECTOR (RED/LEFT)
  • 17
    7079668 DECAL, REFLECTOR (RED/RIGHT)
    DECAL, REFLECTOR (RED/RIGHT)
  • 18
    5434097-070 SKIRT, SNOW (LEFT/BLACK)
    SKIRT, SNOW (LEFT/BLACK)
  • 18
    5434098-070 SKIRT, SNOW (RIGHT/BLACK)
    SKIRT, SNOW (RIGHT/BLACK)
  • 19
    5133058 RACK, MACHINED (FRONT)
    RACK, MACHINED (FRONT)
  • 19
    5133059 RACK, MACHINED (REAR)
    RACK, MACHINED (REAR)
  • 20
    7621418 POP, RIVET
    POP, RIVET
  • 21
    5434099-1106 FLAP, SNOW
    FLAP, SNOW
  • 22
    5812229 SUPPORT, SNOW FLAP
    SUPPORT, SNOW FLAP
  • 23
    5412033 PROTECTOR, BED (FRONT)
    PROTECTOR, BED (FRONT)
  • 23
    5412074 PROTECTOR, BED (LEFT)
    PROTECTOR, BED (LEFT)
  • 23
    5412075 PROTECTOR BED (RIGHT)
    PROTECTOR BED (RIGHT)
  • 24
    5521238 EXTRUSION, CLUTCH GUARD
    EXTRUSION, CLUTCH GUARD
  • 25
    5433150 STRAP, RUBBER
    STRAP, RUBBER
  • 26
    5245457 MOUNT, CONSOLE (LEFT)
    MOUNT, CONSOLE (LEFT)
  • 26
    5245458 MOUNT, CONSOLE (RIGHT)
    MOUNT, CONSOLE (RIGHT)
  • 27
    5242741 SUPPORT, FOOTREST (LEFT)
    SUPPORT, FOOTREST (LEFT)
  • 27
    5242742 SUPPORT, FOOTREST (RIGHT)
    SUPPORT, FOOTREST (RIGHT)
  • 28
    5245288 FOOTREST (LEFT)
    FOOTREST (LEFT)
  • 28
    5242740 FOOTREST (RIGHT)
    FOOTREST (RIGHT)
  • 29
    5221583 GUARD, ADAPTER DRIVE
    GUARD, ADAPTER DRIVE
  • 30
    7080416 PLUG, HOLE
    PLUG, HOLE
