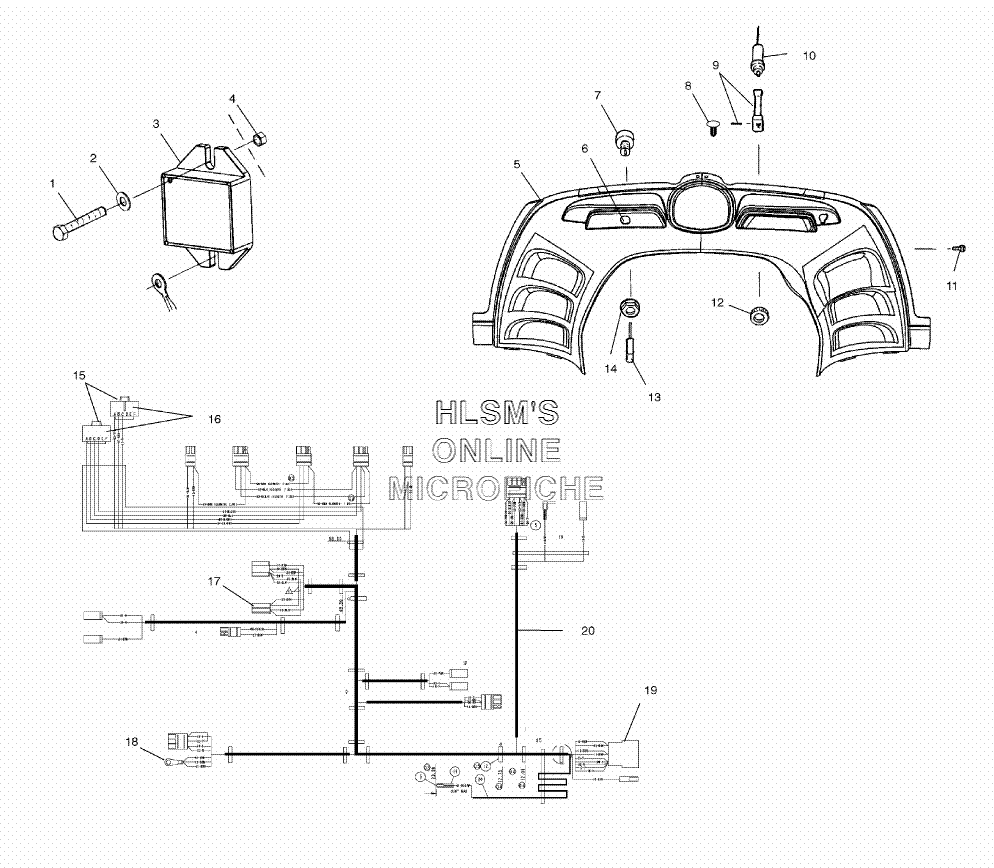

CONSOLE для Polaris 800 RMK F/O 151 BUILT BEFORE 3/1/01 (S02NL8CSB) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7512031 BOLT
    BOLT
  • 2
    7555746 BURR, RIVET
    BURR, RIVET
  • 3
    4010301 REGULATOR (14.3 V)
    REGULATOR (14.3 V)
  • 4
    7541925 NUT
    NUT
  • 5
    5434134 CONSOLE EDGE
    CONSOLE EDGE
  • 6
    7079509 DECAL, IGNITION
    DECAL, IGNITION
  • 7
    2201614 IGNITION SWITCH KIT
    IGNITION SWITCH KIT
  • 8
    7670088 CLIP, PLASTIC DART
    CLIP, PLASTIC DART
  • 9
    5432943 CHOKE LEVER KIT (INCL. PIN)
    CHOKE LEVER KIT (INCL. PIN)
  • 10
    7080946 CABLE, CHOKE RACK (INCL. 9, 12)
    CABLE, CHOKE RACK (INCL. 9, 12)
  • 11
    7515199 SCREW
    SCREW
  • 12
    5432944 NUT, CHOKE
    NUT, CHOKE
  • 13
    5410611 IGNITION KEY
    IGNITION KEY
  • 14
    7547035 NUT, IGNITION
    NUT, IGNITION
  • 15
    4010193 HOUSING, CONNECTOR PAC #12186213
    HOUSING, CONNECTOR PAC #12186213
  • 16
    4010192 SOCKET, PACKARD #12047767
    SOCKET, PACKARD #12047767
  • 17
    4020063 HOUSING
    HOUSING
  • 18
    4020092 TERMINAL, RING
    TERMINAL, RING
  • 19
    4020057 HOUSING, W/RECEPTACLE
    HOUSING, W/RECEPTACLE
  • 20
    2460932 HARNESS, MAIN
    HARNESS, MAIN
