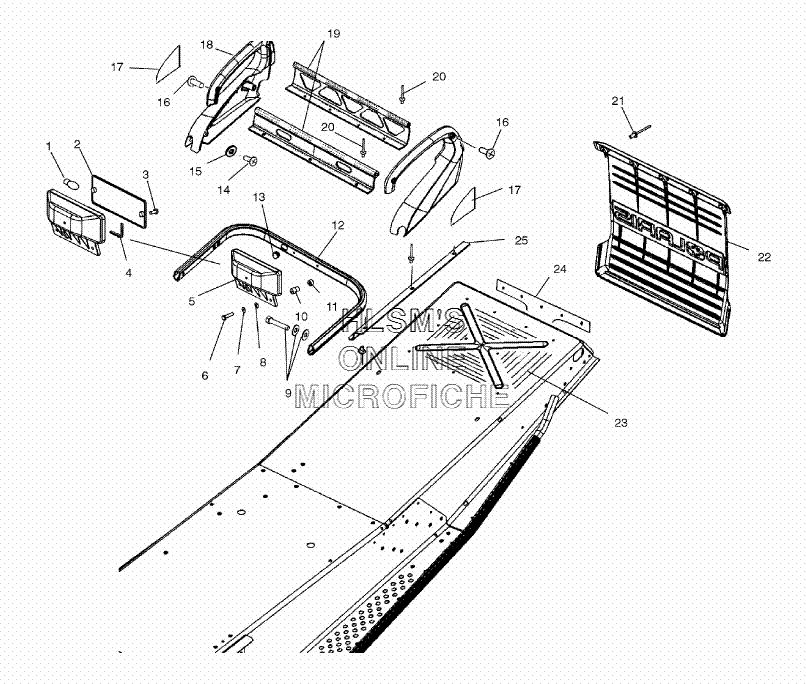

TAILLIGHT ASSY W/ REFLECTORS AND FLAP для Polaris 800 RMK F/O 151 BUILT AFTER 3/1/01 (S02NL8CS) - 2002 года выпуска`
-
№АртикулНазвание
-
14030043 BULB, TAILLIGHTBULB, TAILLIGHT
-
24032014 LENS, TAILLIGHTLENS, TAILLIGHT
-
37518019 SCREWSCREW
-
44032015 GASKETGASKET
-
52410271 TAILLIGHT ASSY. (INCL. 1-4)TAILLIGHT ASSY. (INCL. 1-4)
-
67515140 SCREWSCREW
-
77552605 WASHERWASHER
-
87556033 WASHERWASHER
-
97512113 SCREWSCREW
-
97552801 LOCK, WASHERLOCK, WASHER
-
97558301 WASHERWASHER
-
103021186 MOUNT, RUBBERMOUNT, RUBBER
-
117555916 WASHER, NYLONWASHER, NYLON
-
122632461-309 BUMPER ASSY., REARBUMPER ASSY., REAR
-
137081039 BUSHING, SNAPBUSHING, SNAP
-
147512094 SCREWSCREW
-
157558301 WASHERWASHER
-
167517686 SCREWSCREW
-
177079667 DECAL, REFLECTOR (RED/LEFT)DECAL, REFLECTOR (RED/LEFT)
-
177079668 DECAL, REFLECTOR (RED/RIGHT)DECAL, REFLECTOR (RED/RIGHT)
-
185434097-070 SKIRT, SNOW, EDGE (LEFT/BLACK)SKIRT, SNOW, EDGE (LEFT/BLACK)
-
185434098-070 SKIRT, SNOW, EDGE (RIGHT/BLACK)SKIRT, SNOW, EDGE (RIGHT/BLACK)
-
195133058 RACK, FRONTRACK, FRONT
-
195133059 RACK, REARRACK, REAR
-
207661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
217621418 POP, RIVETPOP, RIVET
-
225434356-1106 FLAP, SNOW (BLACK W/CHROME)FLAP, SNOW (BLACK W/CHROME)
-
235412033 PROTECTOR, BED (FRONT/REAR)PROTECTOR, BED (FRONT/REAR)
-
235412074 PROTECTOR, BED (LEFT)PROTECTOR, BED (LEFT)
-
235412134 PROTECTOR, BED (RIGHT)PROTECTOR, BED (RIGHT)
-
245812229 SUPPORT, SNOW FLAPSUPPORT, SNOW FLAP
-
255245726 GUARD, WIRE TAILLIGHT (INCL. RIVETS)GUARD, WIRE TAILLIGHT (INCL. RIVETS)
-
257661079 RIVETRIVET
